Bosch Bulls Aminga E1 - 3.6 Controls and Display Functions

MY20B01-32_1.0_21.06.2019
33
Overview
3.6 Description of controls and
screens
3.6.1 Handlebars

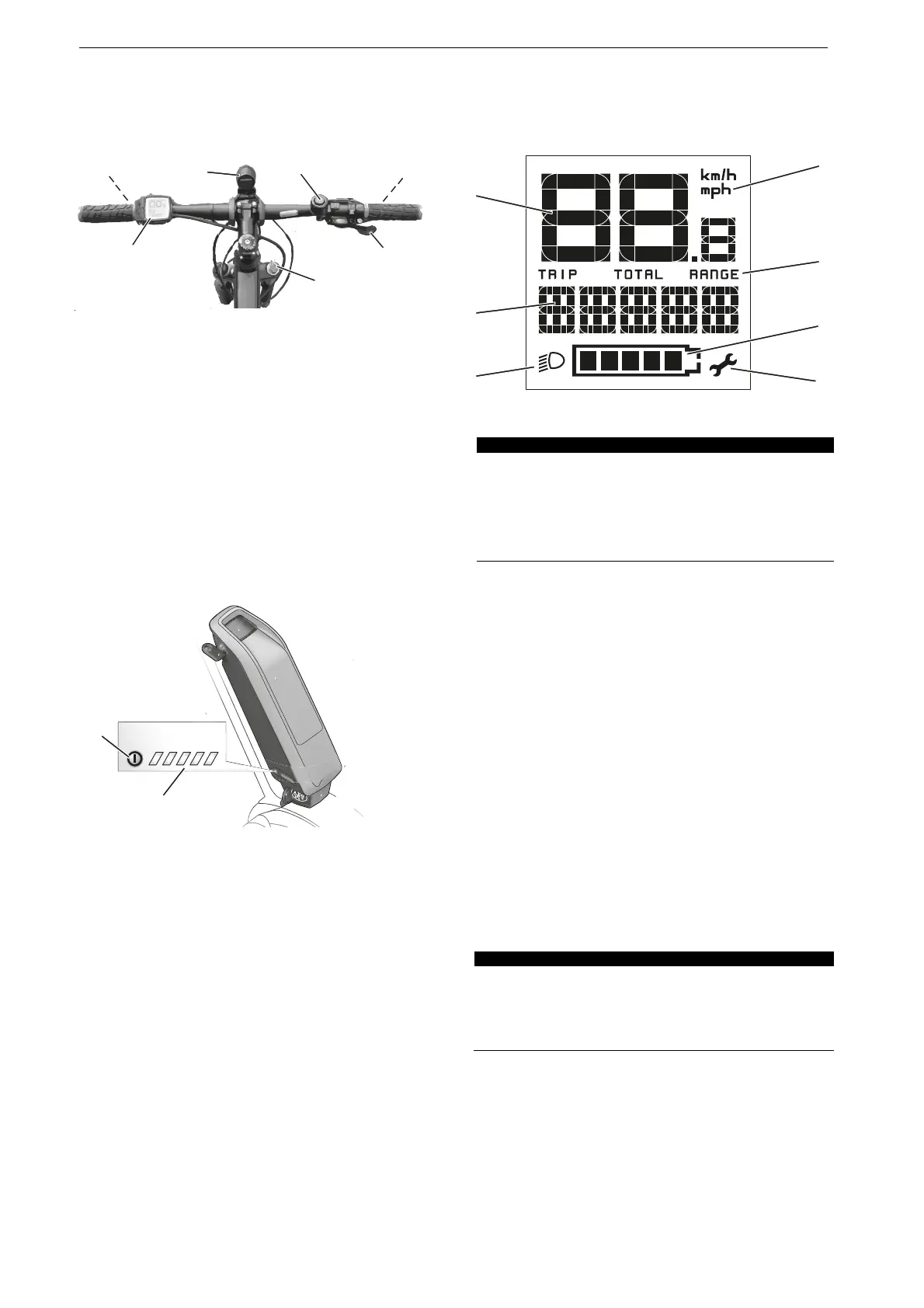

Figure 20: Detailed view of pedelec from rider position,
example
1 Rear brake lever
2Bell
3 Headlight
4 Display
5 Front brake lever
6 Control panel
8 Fork lock on the suspension fork
9Shifter
3.6.2 Battery level indicator
Each battery has its own level indicator:
Figure 21: Example of a battery level indicator
1 On-off button (battery)
2 Battery level indicator
The five green LEDs on the battery level indicator
show the charge level when the battery is switched
on. Each LED represents about 20% of battery
capacity. All five LEDs will light up when the battery
is fully charged. The charge level for the activated
battery is also shown on the display screen.
If the battery level falls below 5%, all the LEDs on
the operating status and battery level indicator will
go out. However, the battery level is still shown on
the display screen.
3.6.3 Control panel on-screen indicators
The control panel with display has seven on-screen
indicators:
Figure 22: On-screen indicators overview
3.6.3.1 Unit of measure for speed
The speed can be displayed in km/h or mph. You
can select whether the speed is displayed in
kilometres or miles in the system settings.
3.6.3.2 Tachometer screen
The tachometer shows the current speed at all
times.
3.6.3.3 Function display
The last setting is always displayed on the
function display screen by default.
The control panel with display shows one of three
items of journey information. The displayed item
of journey information can be switched
1
2
3
5
4
6
7
1
2
Use
1 Unit of measure for speed
2 Tachometer screen
3 Function display
4 Riding light symbol
5 Service symbol
6 Battery level indicator
7 Level of assistance
Table 32: On-screen indicators overview
Screen display Function
TRIP Distance travelled since the last RESET
TOTAL Display of the total distance travelled
(cannot be changed)
RANGE Estimated range of the available battery
charge, calculated based on the most
recent manner of riding
Table 33: Journey information
1
5
6
2
7
