Maintenance
8.2.1 Cable-operated gear shift, single-
cable
Only applies to pedelecs with this equipment
 For a smooth gear shift, adjust the adjusting
sleeves on the shifter housing.

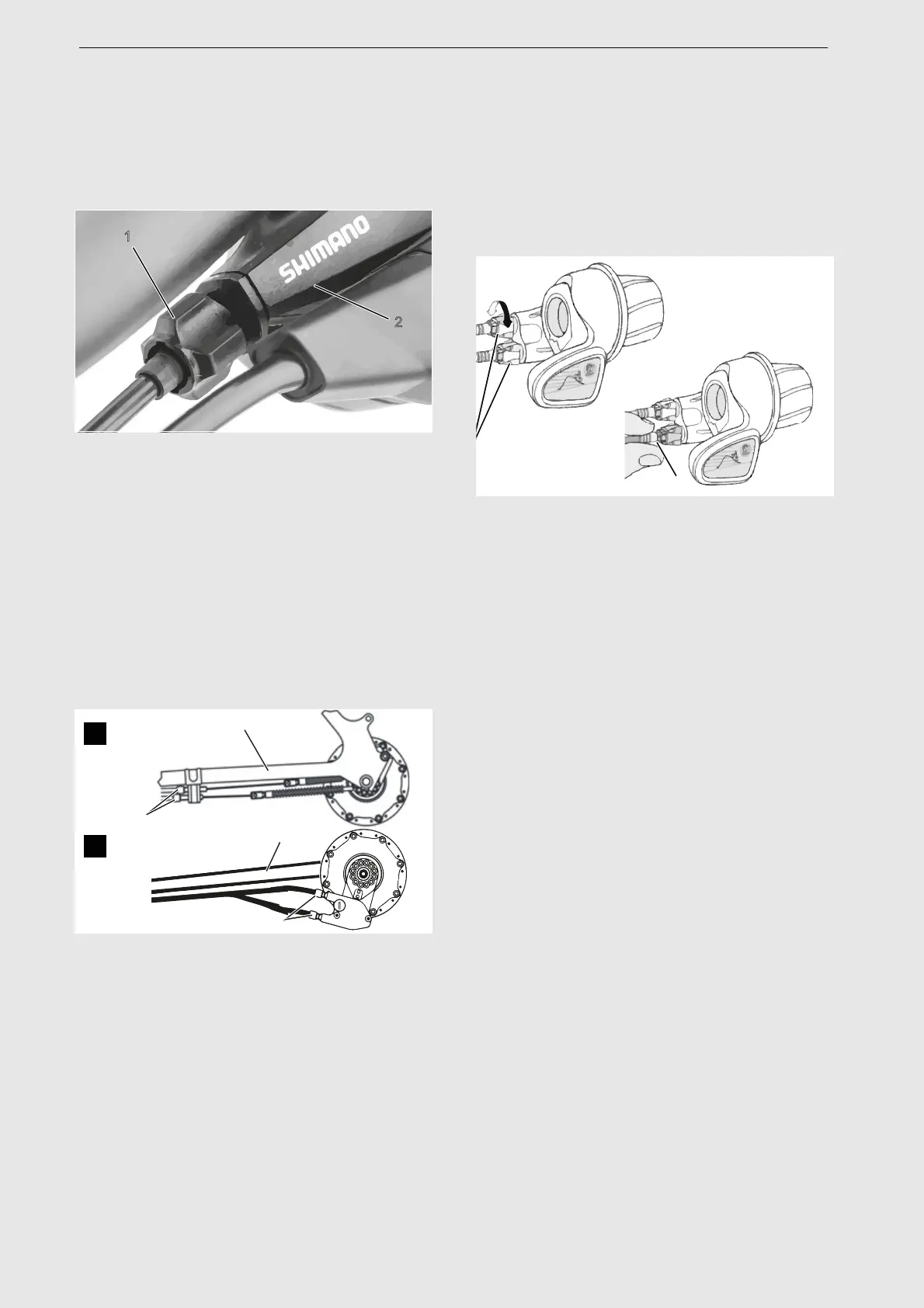

Figure 86: Adjusting sleeve (1) for the single-cable, cable-
operated gear shift with shifter housing (2), example
8.2.2 Cable-operated gear shift, dual-
cable
Only applies to pedelecs with this equipment
 For a smooth gear shift, set the adjusting
sleeves underneath the chain stay on the
frame.
 The shift cable has around 1 mm play when it
is pulled out gently.
Figure 87: Adjusting sleeves (2) on two alternative
versions (A and B) of a dual-cable, cable-operated gear
shift on the chain stay (1)
8.2.3 Cable-operated twist grip, dual-
cable
Only applies to pedelecs with this equipment
 For a smooth gear shift, set the adjusting
sleeves on the shifter housing.
 There is noticeable play of around 2–5 mm (1/
2 gear) when twisting the twist grip.
Figure 88: Twist grip with adjusting sleeves (1) and play of
the gear shift (2)
