MY20B01-32_1.0_21.06.2019
43
Assembly

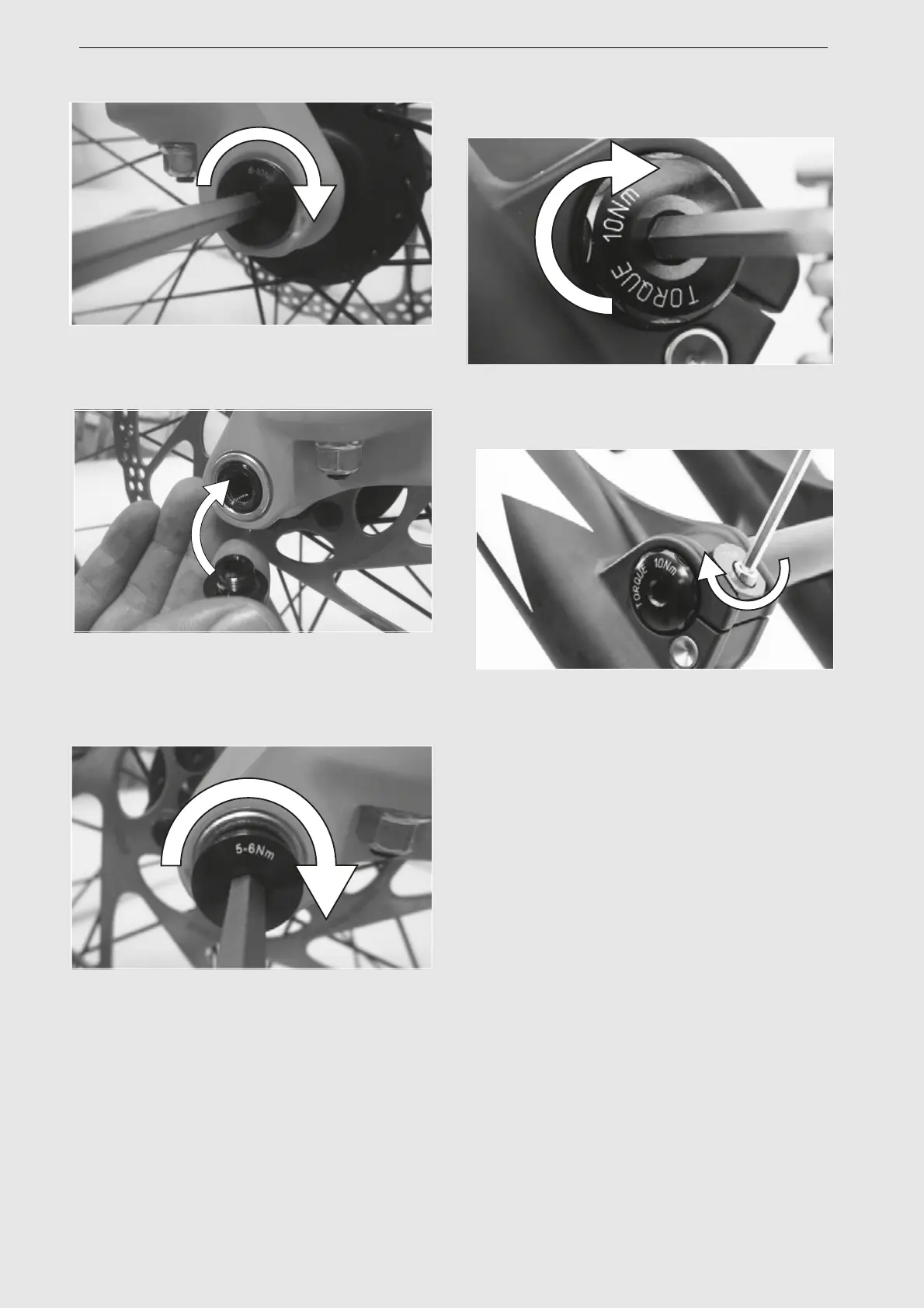

Tighten the axle with a 5 mm hexagon socket
spanner to 8–10 Nm.
Figure 26: Tightening the axle
Insert the securing screw on the non-drive
side.
Figure 27: Pushing the quick release lever into the axle
Tighten the securing screw with a 5 mm
hexagon socket spanner to 5–6 Nm.
The lever is mounted.
Figure 28: Tightening the securing screw
5.3.2.2 Installing the wheel with screw-on axle
(20 mm)
Insert the axle completely on the drive side.
Figure 29: Tightening the inserted axle
Tighten the securing clip with a 4 mm hexagon
socket spanner to 7 Nm.
Figure 30: Tightening the axle
