3 Unit installation
Find installation instruction , assembling
spare parts and accessories on place for storing
the documents and accessories. Before installa-
tion, transportation safety device with yellow
symbols shall be removed especially the safety
device for fan. Any abovementioned works must
be operated by professional personnel.

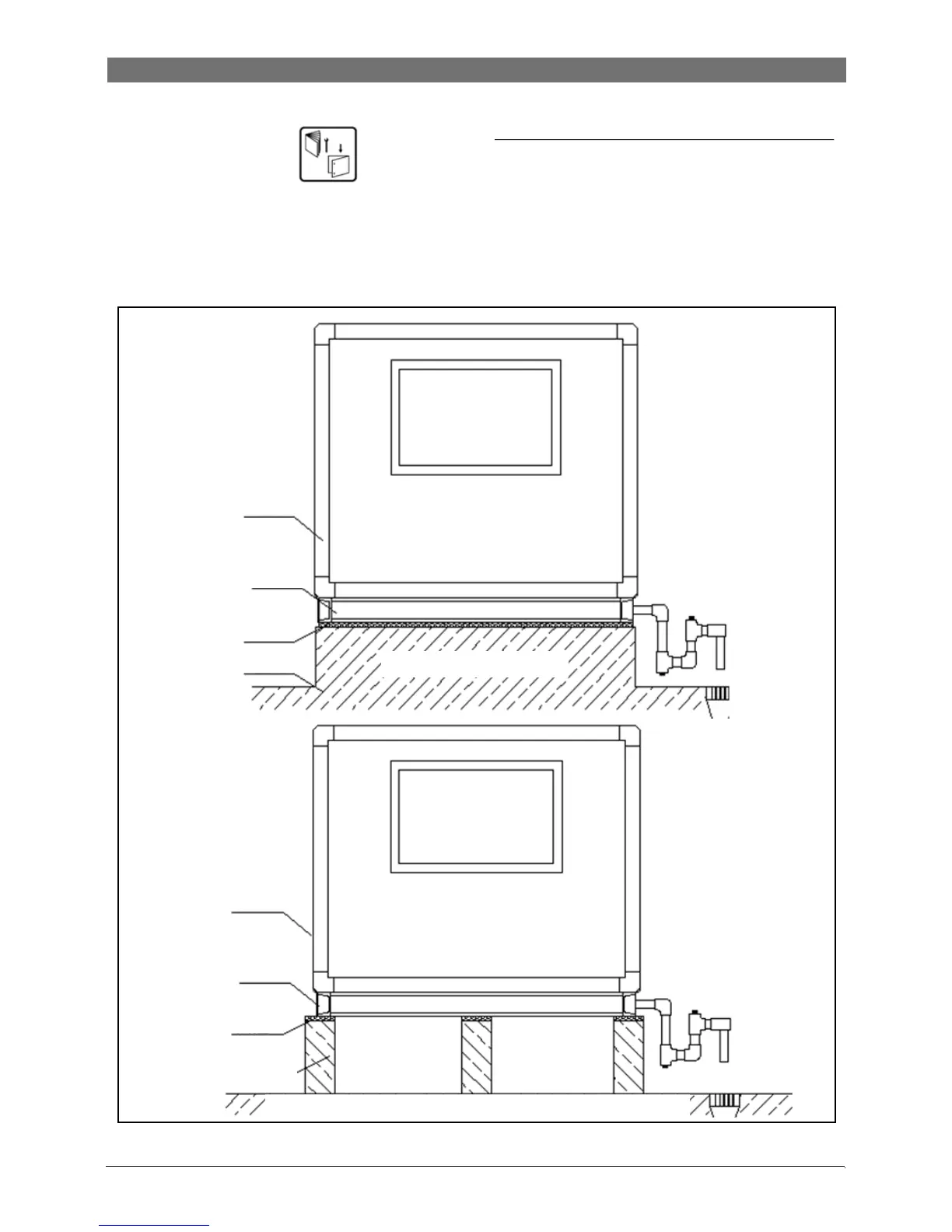

Fig. 6 Schematic diagram of base installation
3.1 Product introduction
• To prevent vibration and noise transmission,
anti-vibration pads shall be applied between
equipment and foundation; foundation level-
ness should be 1/1000. After placement, the
tolerance of entire unit in height and width shall
be controlled within 3mm. For the details of
foundation installation→Fig. 6.
8 | Unit installation
8736862495(2015/07) Climate 5000
Flat face foundation
Concrete or steel support strap footing foundation
Unit body
Unit body
Channel
Channel
Absorption gasket
Absorption gasket
Flat face foundation
Concrete or steel-frame
strip foundation
To Next Page
