-7-
Functional Description and Specifications
Disconnect the plug from the power source before making any
assembly, adjustments or changing accessories
. Such preventive safety
measures reduce the risk of starting the tool accidentally.
!
WARNING

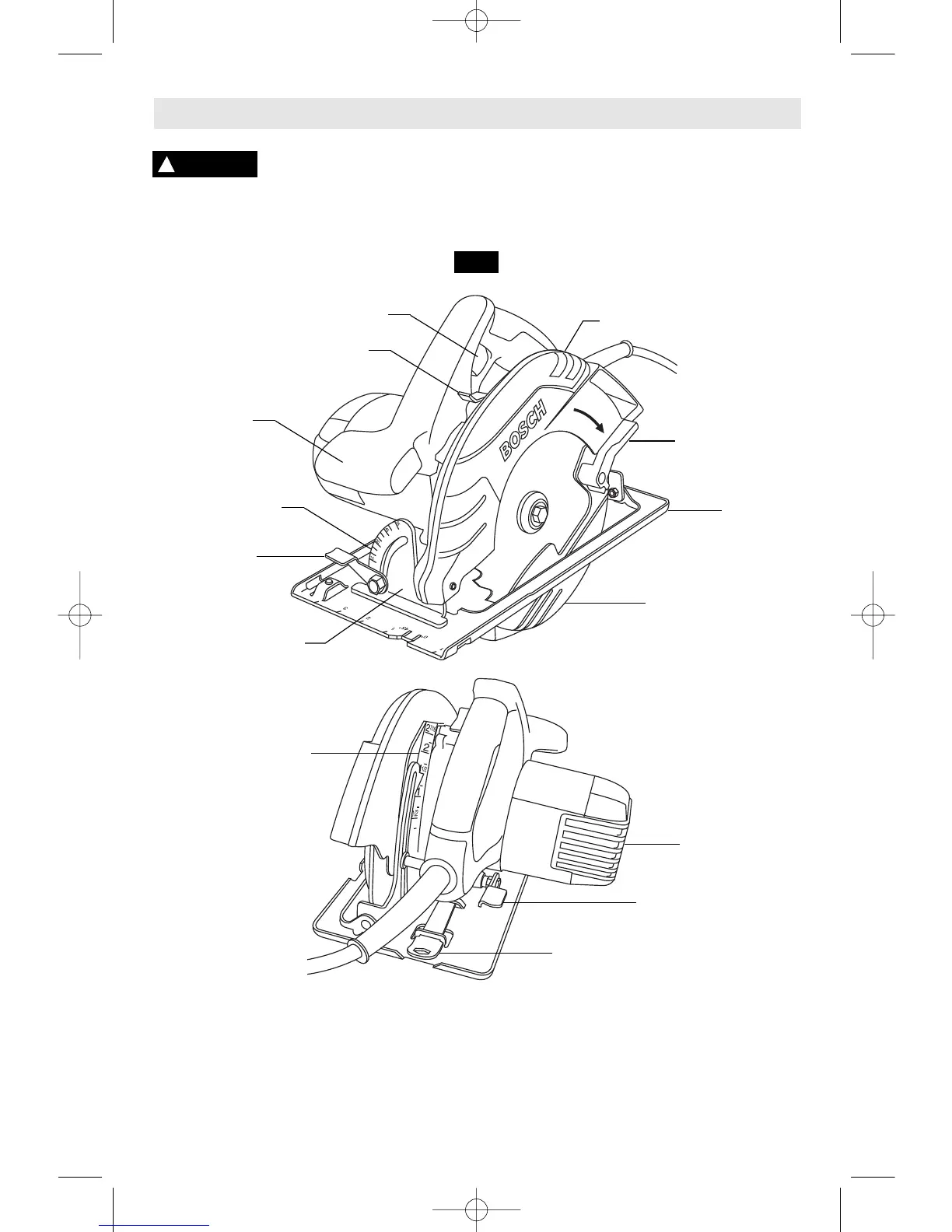

Circular Saw
LOWER GUARD
LIFT LEVER
LOWER GUARD
BEVEL SCALE
FOOT
AUXILIARY
HANDLE
UPPER GUARD
LOCK LEVER
TRIGGER SWITCH
FIG. 1
Maximum Capacities
Model CS5
Blade 7-1/4"
Blade arbor hole
5/8" Round
Depth of cut at 90° 2-7/16"
Depth of cut at 45° 1-13/16"
NOTE: For tool specifications refer
to the nameplate on your tool.
VENTILATION
OPENINGS
BLADE WRENCH &
STORAGE AREA
DEPTH ADJUSTMENT
LEVER
BEVEL
ADJUSTMENT
LEVER
QUADRANT
CALIBRATED DEPTH
BRACKET
