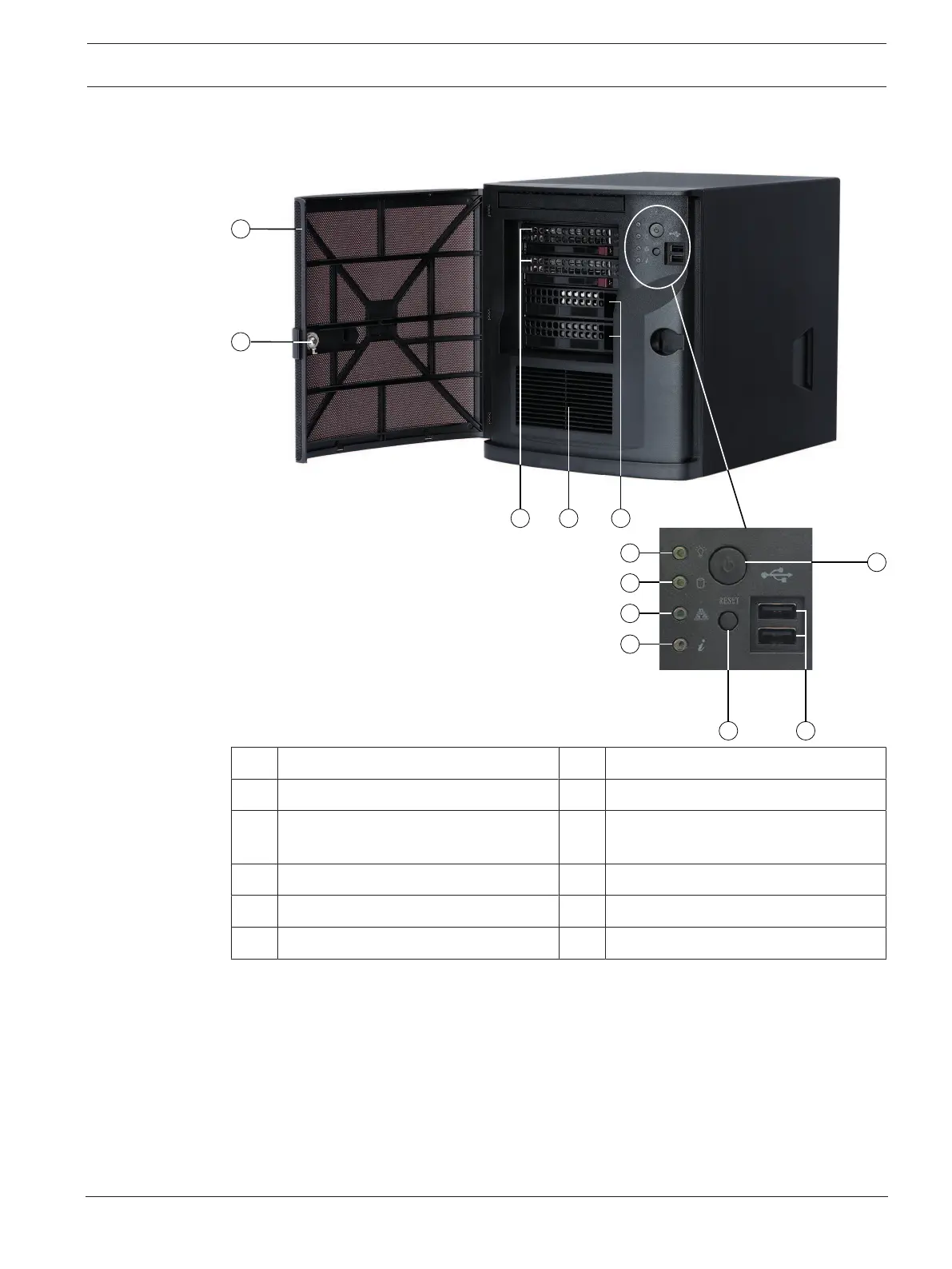

Front view
2
1
53 4
6
7
8
9
10 11
12
1 Front cover 2 Lock for front cover
3 2 hard drive bays (for 3.5" hard drives) 4 Air intake filter
5 2 slot covers
Note: Do not remove!
6 Power LED
7 HDD LED 8 Network LED
9 Information LED 10 Reset button
11 2 USB 2.0 ports (Type A) 12 Power on/off button
