3. Use the handle to pull the hard drive tray out of the chassis.
1
2

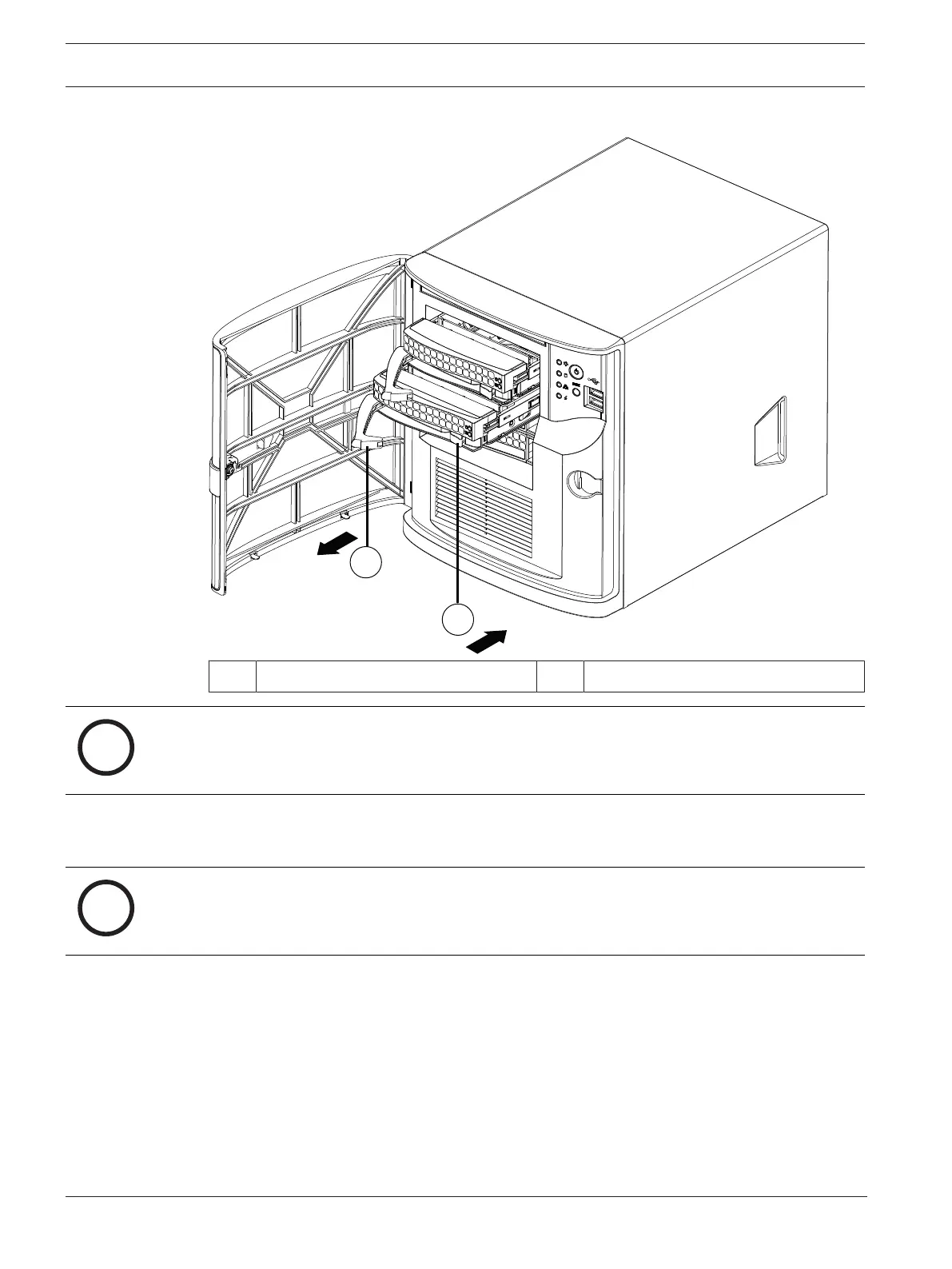

1 Release button 2 Hard drive tray handle
i
Notice!
Do not operate the device with the hard drive trays removed from the bays.
Installing a hard drive into a hard drive tray
i
Notice!
This description applies only to DIP‑4420IG‑00N units.
To install a hard drive into a hard drive tray:
1. Remove the screws, which secure the plastic bracket to the hard drive tray.
