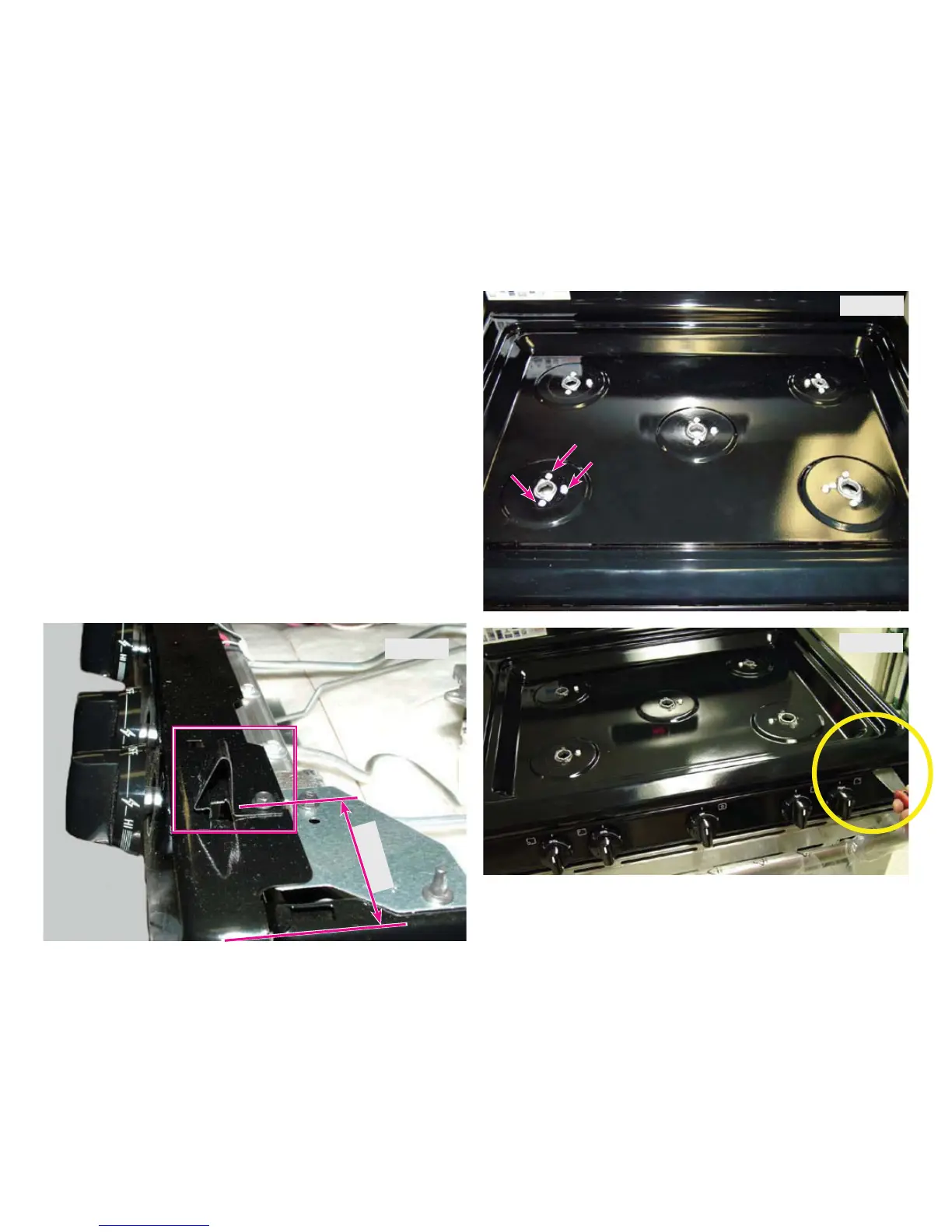

The cooktop must be removed to access the surface burner igniter
orifice holder assemblies, burner valves, spark module and other
components. To remove the cooktop begin by removing the burner caps
and surface burners as previously described.
Next using a 1/4 inch socket wrench or nut driver remove the screws
that secure each orifice holder assembly to the cooktop. The arrows in
hoto A at right indicate the screw locations for the leftfront orifice holder
assembly. Remove all screws at all burner locations before attempting to
remove the cooktop.
After the screws are removed insert a putty knife or similar tool between
the bottom edge of the cooktop and the manifold panel
shown in photo B. Push in on the putty knife to release the lock
clip that holds the cooktop down. The corner of the cooktop can be easily
liftedwhen the clip is released. Repeat this step on the opposite side.
Photo C shows detail and location of the cooktop lock clip.
Cooktop Removal
Photo A
Photo B
Photo C
3 Inches
