Oven Broil Burner

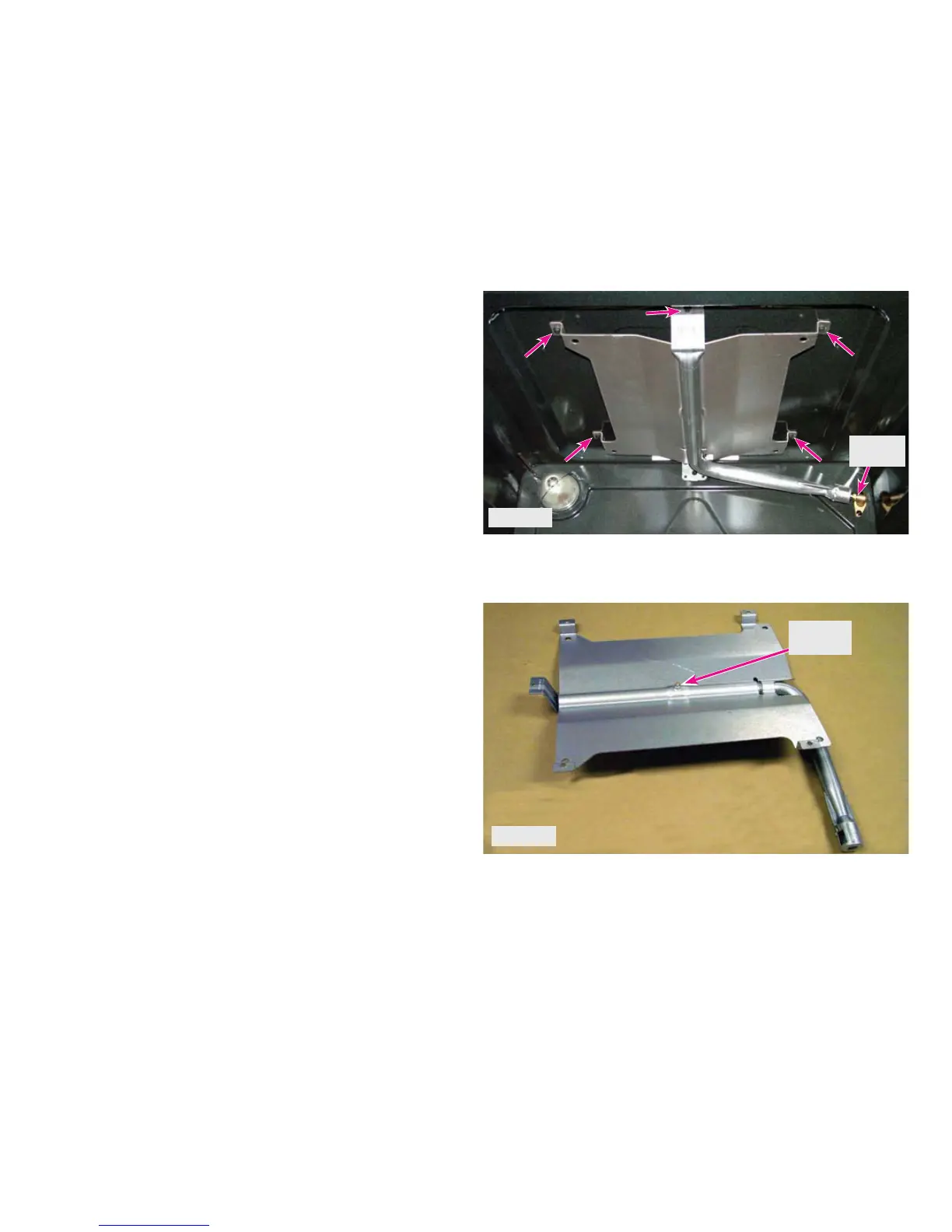

The broil burner is attached to the flame spreader and mounted to the
ceiling of the oven cavity by five screws indicated by the arrows in photo
D To remove the broil burner take out the five screws, slide the
assembly to the left to disengage the burner tube from the orifice spud
and pull it forward out of the oven.
Photo D
Orifice
Hood--
Photo E
Mounting
Nut
The broil burner tube is secured to the flame spreader by a threaded
stud and nut by the arrow in
photo E. Remove the nutto separate the burner tube from the flame
spreader for service orreplacement of either part.
