Broil Burner Igniter
To remove and replace the broil burner igniter

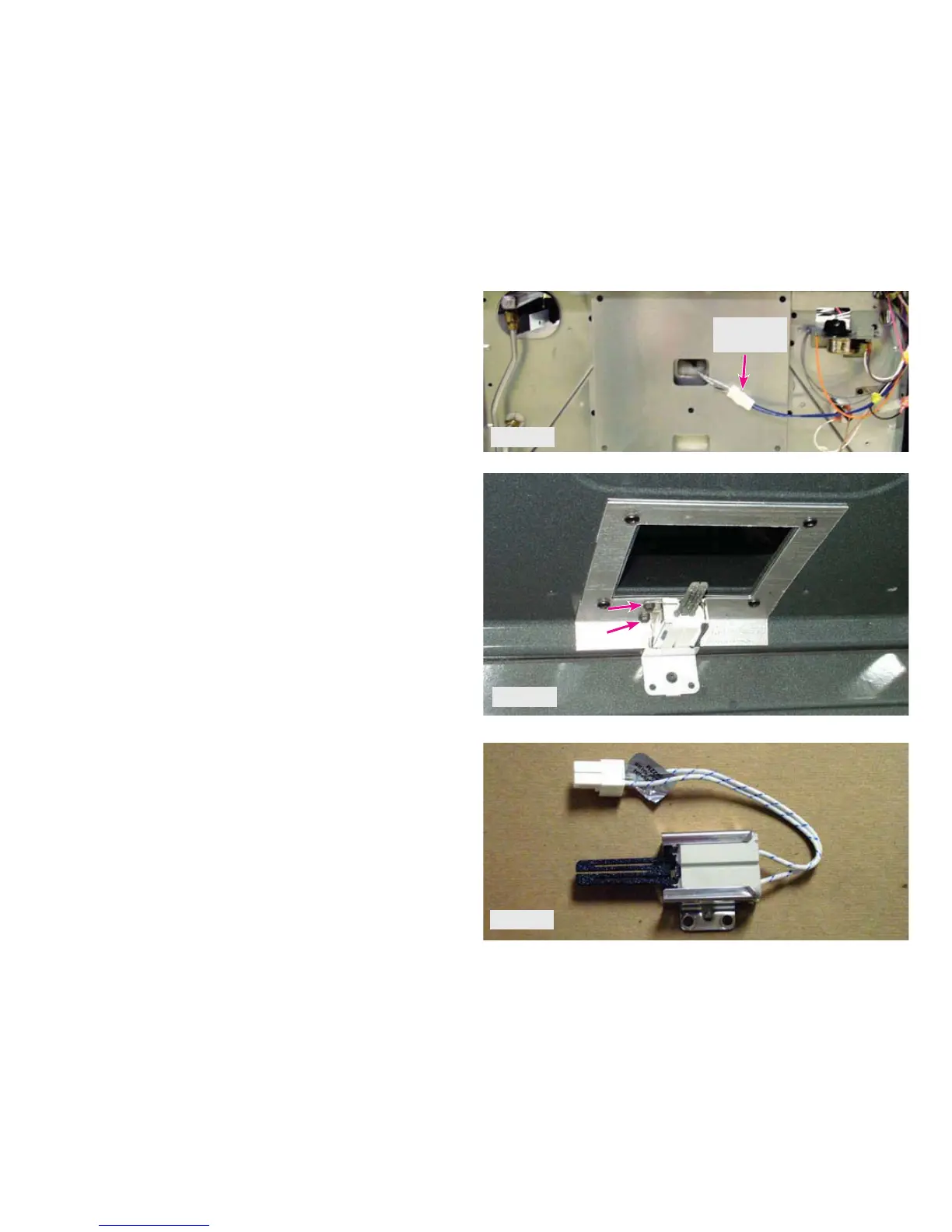

the lower rear panel. Unplug the igniter harness
connector in photo A.
Photo A
Harness
Connector
Photo C
Photo B
Remove the two screws indicated by the arrows in photo B. Carefully
pull the igniter and attached harness forward out of the oven cavity.
A closeup view of the broil burner igniter and harness can be seen in
photo C.
1RWHThe replacement field service igniter may have bare wire ends that
must be connected by splicing into the original connector plug harness.
