To access the sensor remove the lower wire shield on the back of the
range. The sensor is located on the right hand side just above the oven
light socket as seen in photo B It is not necessary to remove the
sensor from the range to test it.

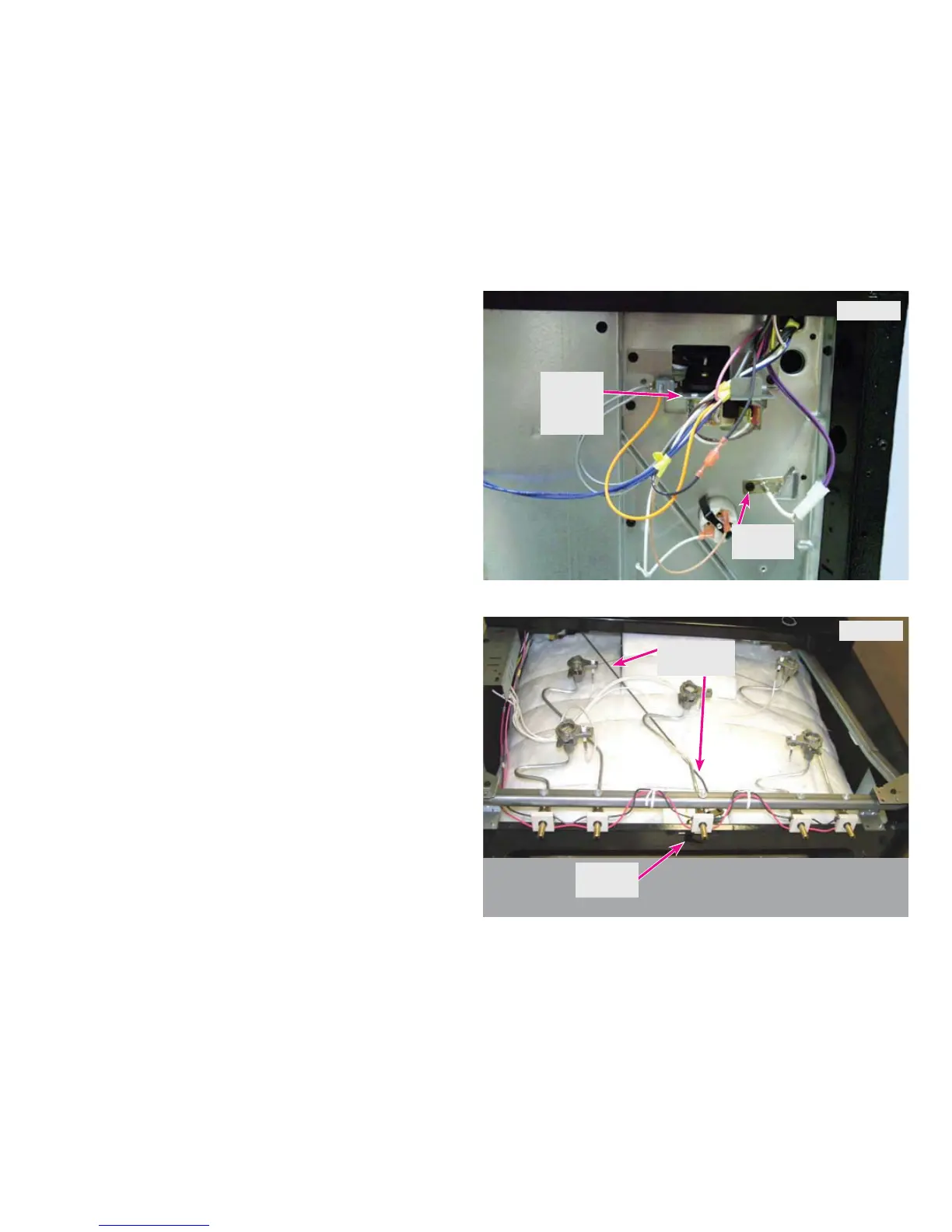

Photo B
Mounting
Screw
If the sensor must be removed for service or replacement disconnect
the harness connector plug then remove the single screw indicated
in the photo by the arrow. After removing the screw rotate the sensor
counterclockwise 90 degrees to disengage the sensor bracket from the
slot on the range back panel. The sensor can now be pulled out of the
oven chassis.
Oven Door Latch
The oven door latch hook is operated by a latch motor that is mounted
on the rear of the range chassis just above the oven light socket as seen
in photo B above.
The latch motor has a connecting rod that travels beneath the cooktop
below the orifice holder assemblies to the latch hook mounted on the
front frame of the oven chassis as seen in photo C
Latch
Motor
Assembly
Photo C
Latch
Hook
Connecting
Rod
To service or replace the latch hook or the connecting rod, it is
necessary to remove the surface burners and cooktop as previously
described in this manual.
