IMPORTANT NOTE: When reinstalling the burner valve
always that the washer on the burner mounting screw and
valve body damaged and properly positioned (hoto D).

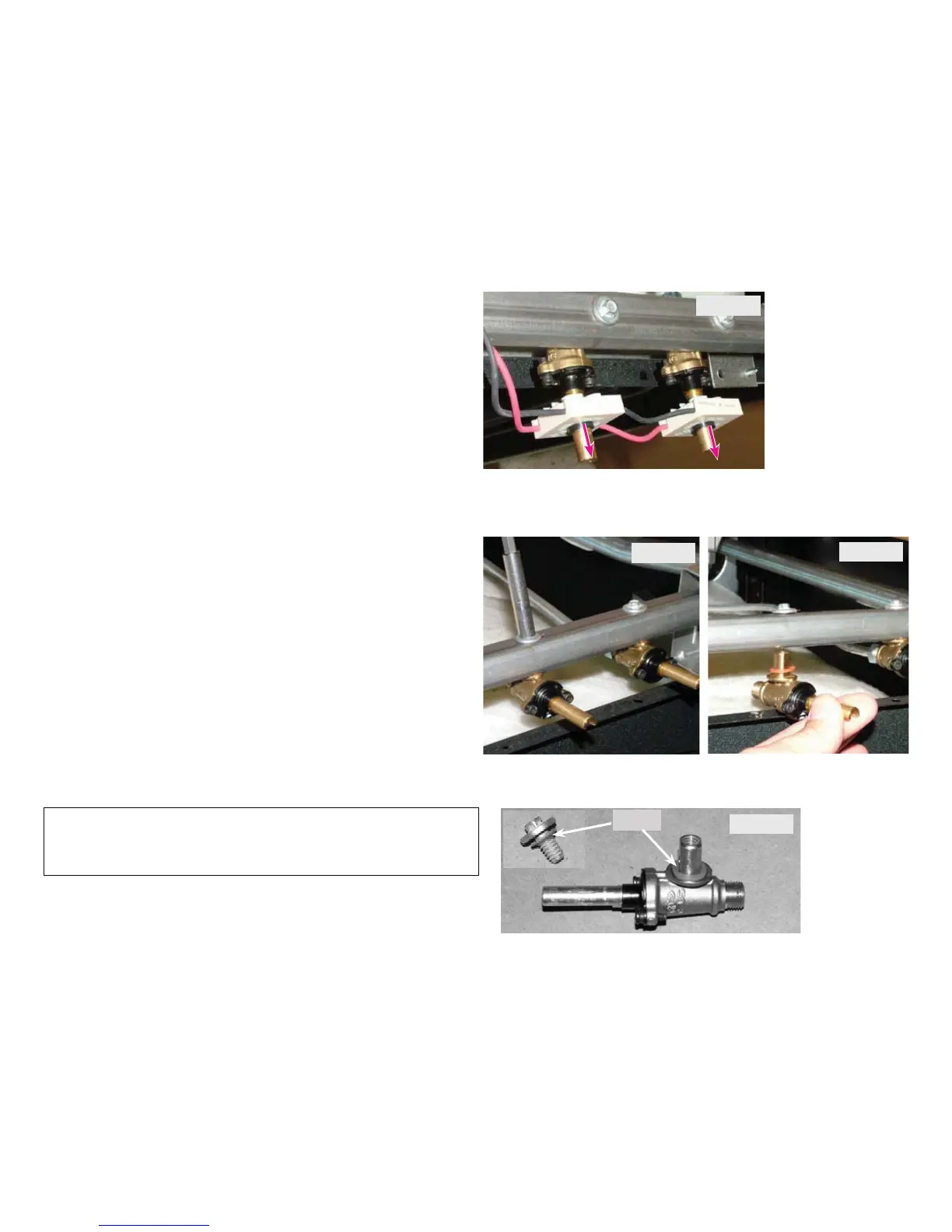

To release the surface burner valve from the manifold pipe use a 1/4”
socket or nut driver to loosen the valve mounting screw (hoto B)
Photo B
Photo C
The valve can be removed by pulling it downward away from the
underside of the pipe (hoto C)
Washer
Photo D
The switches slide over the burner valve shaft and are secured by
sockets on the back side of the switch that snap onto studs on the front
side of the valve.
Pull forward to unsnap the switch housing from the
valve (hoto A).
When replacing the switches make sure that the switches snap
securely and lock to the studs in the valve body. The slack in the
ire harness should on top of the manifold tube and secure with
the wire twist ties as shown in photo F on the preceding page.
