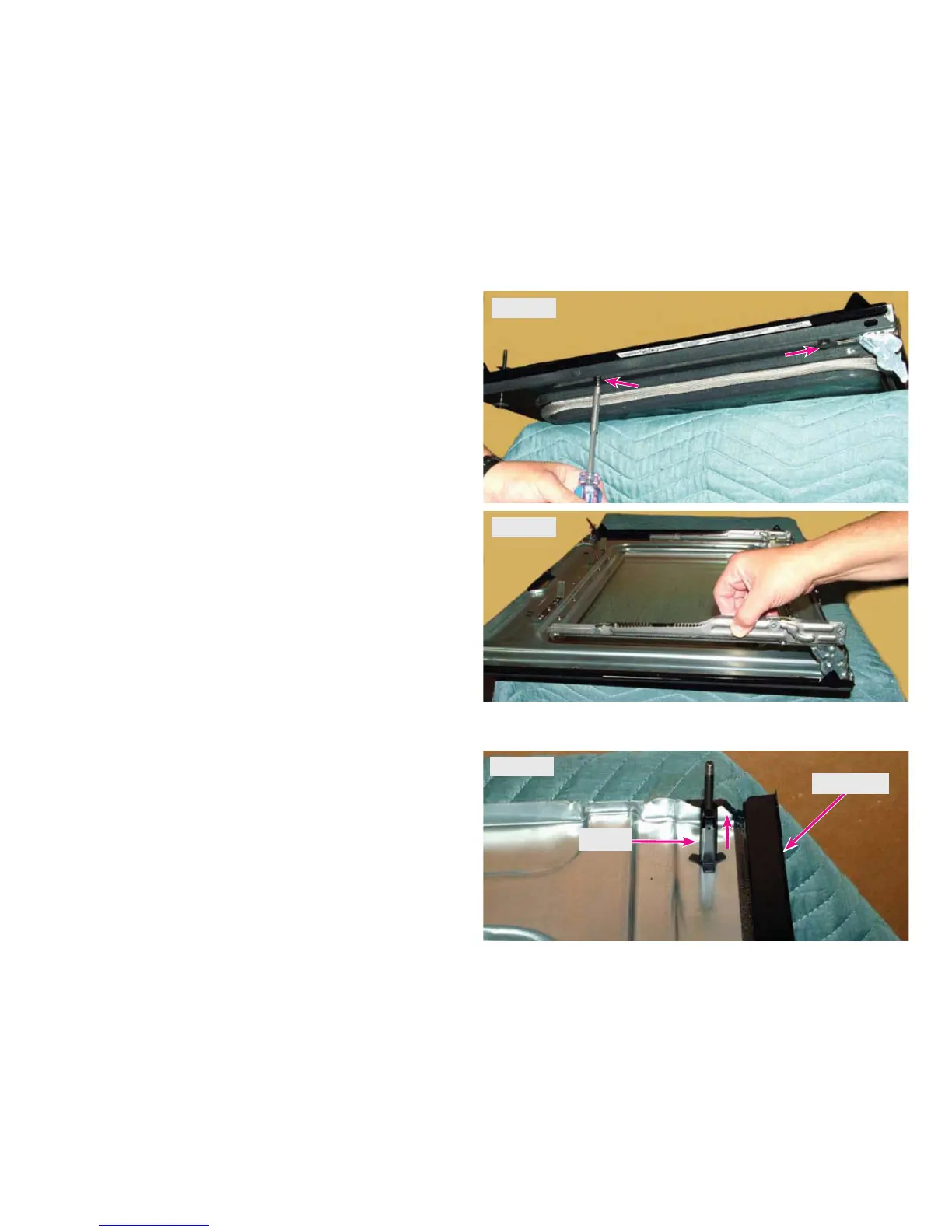

To remove the door hinge lay the door liner assembly on a protected
work surface with the side of the door overhanging as seen in photo .
Remove the two hinge mounting screws indicated by the arrows in the
photo.
Lift the hinge assembly away from the liner assembly (hoto ).
To remove the wool shield take off both of the door hinges and the two
side trims.
Remove the door spacers from the handle mounting screws by sliding
them off the screws and remove the scews (hoto ).
1RWHWhen reassembling the door make sure that the spacers are placed
on the screws to keep them in place and provide proper spacing between
the door liner assembly and outer door panel.
Side Trim
Spacer
