Measuring Functions
Simple Length Measurement
For length measurements, press
button 12 until the “length
measurement” indication appears
on the display.
To switch the laser
on and for
measuring, briefly
press the
measuring button
2 once each time.

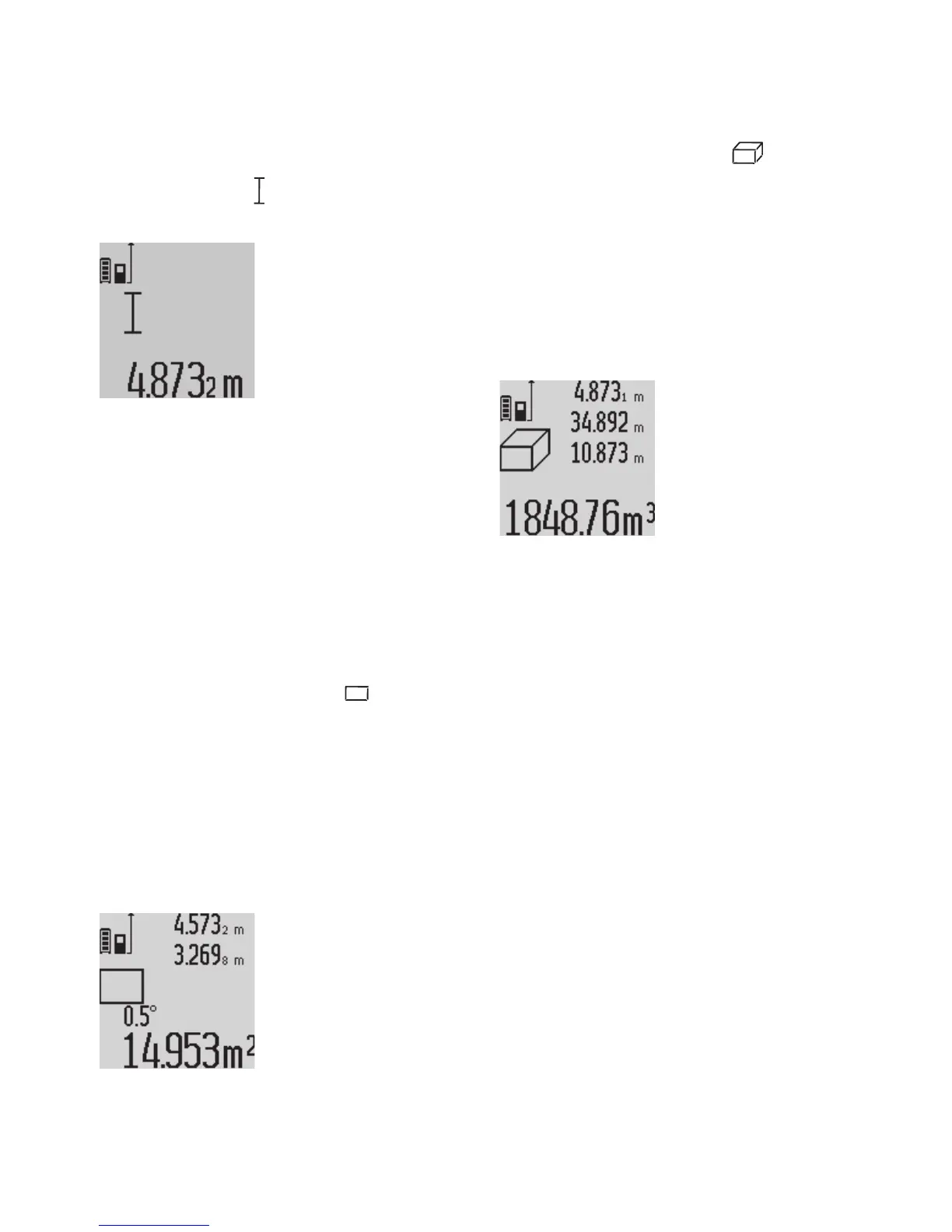

The measured value is displayed
in the result line c.
For several subsequent length
measurements, the last measured
results are displayed in the
measured-value lines a.
Area Measurement
For area/surface measurements,
press button 12 until the indicator
for area measurement appears
on the display.
Afterwards, measure the length
and the width, one after another,
in the same manner as a length
measurement. The laser beam
remains switched on between
both measurements.
Upon completion
of the second
m e a s u r e m e n t ,
the surface is
a u t o m a t i c a l l y
calculated and
displayed in the result line c. The
individual measured values are
displayed in the measured-value
lines a.
Volume Measurement
For volume measurements, press
button 12 until the indicator for
volume measurement appears
on the display.
Afterwards, measure the length,
width and the height, one after
another, in the same manner as
for a length measurement. The
laser beam remains switched on
between all three measurements.
Upon completion
of the third
m e a s u r e m e n t ,
the volume is
a u t o m a t i c a l l y
calculated and
displayed in the
result line c. The individual
measured values are displayed in
the measured-value lines a.
Values above 999999 m3 cannot
be indicated; “ERROR” appears
on the display. Divide the volume
to be measured into individual
measurements; their values can
then be calculated separately and
then summarized.
Continuous Measurement
(Tracking) / Minimum/Maximum
Measurement (see figure B)
For continuous measurements,
the measuring tool can be moved
relative to the target, whereby the
measuring value is updated
approx. every 0.5 seconds. In this
manner, as an example, you can
move a certain distance away
from a wall, while the actual
distance can always be read.
