GCY42 Connectivity module
installation (sold separately)
To reduce the risk of
injury read the
operating instructions included with
Bosch GCY42 connectivity module.
Operating instructions for GCY42
connectivity module include important
information not covered in this manual.
Only use Button/coin
cell 3V lithium CR2032
battery. Do not use any other button/coin
cells or other forms of electrical power
supply.
Ensure that battery
replacement is carried
out properly. There is a risk of explosion.
Chemical Burn Hazard.
Keep batteries away
from children. This product contains a
lithium button/coin cell battery. If a new or
used lithium button/coin cell battery is
swallowed or enters the body, it can cause
severe internal burns and can lead to death
in as little as 2 hours. If you think a battery
might have been swallowed or placed
inside any part of the body, seek immediate
medical attention.
Always completely
secure the connectivity
module compartment. If the connectivity
module compartment does not close
securely, stop using the product, remove
the battery, and keep it away from children.
When discarding
batteries, insulate the
‘+’ and ‘–’ terminals with insulating tape.
When disposed of improperly, lithium
batteries may short, causing them to
become hot, burst or ignite.
Never dispose of the
batteries in a fire or
expose to high heat. The batteries may
explode.
If GCY42 connectivity module is not
purchased with the tool, or if the
replacement of the module or the battery
becomes necessary, please follow this
procedure (see Fig. 7):
- Using a flat screwdriver or a coin,
remove the cover (10) from the side
of the handle, by turning it 1/4 turn
counter-clockwise.
- If the tool is already equipped with the
connectivity module, remove the
battery a, but do not remove the
connectivity module b.
- If the connectivity module is installed
for the first time, remove the plastic
placeholder c from the connectivity
module compartment, and place the
connectivity module b in the
compartment observing correct
orientation.
Note: Store the placeholder c in a safe
place. Reinsert the placeholder again
if the communications module is
removed.
- Next place new battery a on the top of
the connectivity module with the “+”
polarity facing up.
- Place the cover 10 over the battery
and turn it ¼-turn clockwise to lock
using a flat screwdriver or a coin.
a
b
(10)
c

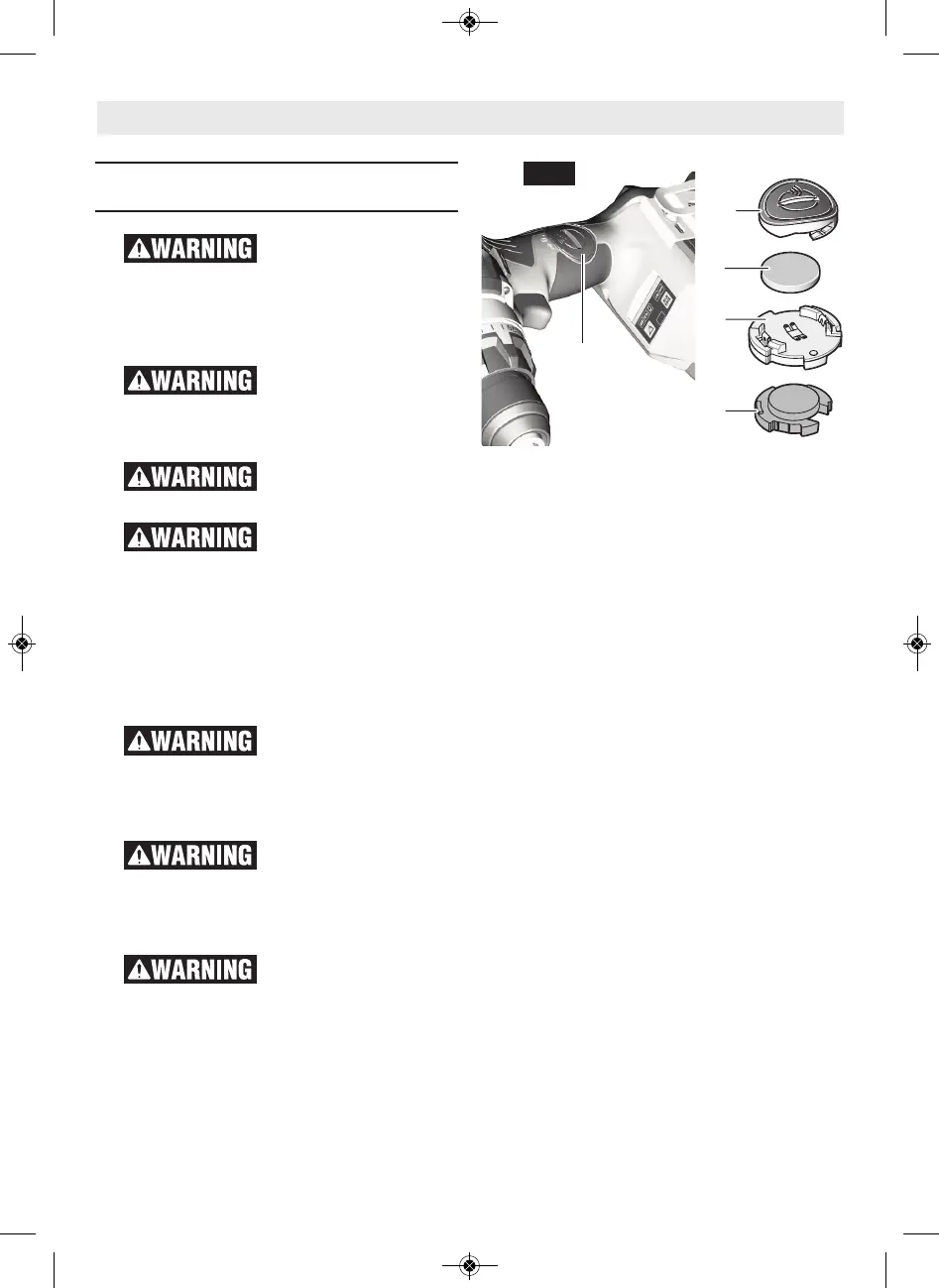

FIG. 7
Assembly
(10)
