9
Functional Description and Specifications
Disconnect battery pack from tool before making any assembly,
adjustments or changing accessories. Such preventive safety measures
reduce the risk of starting the tool accidentally.

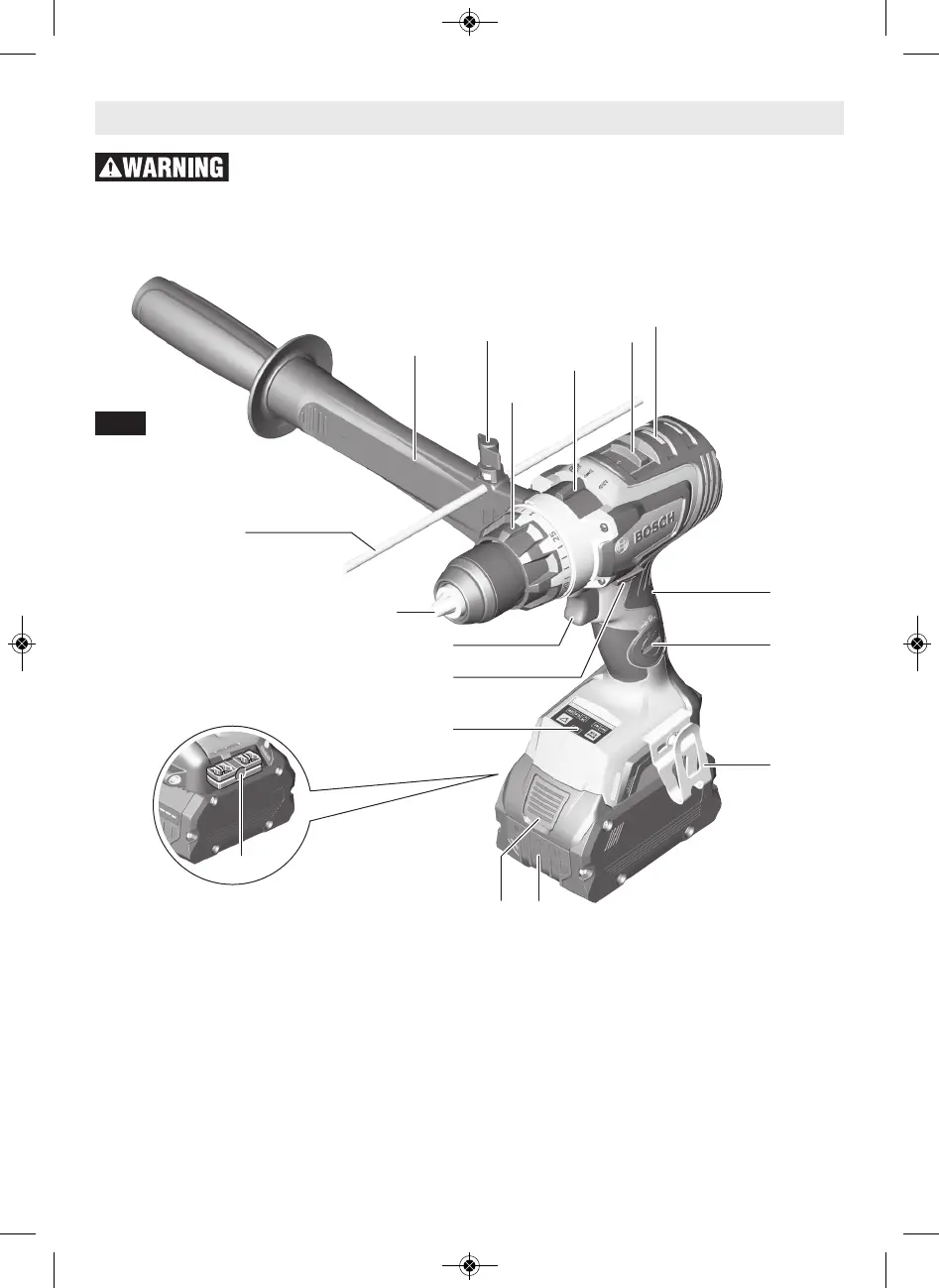

Cordless Drill Drivers and Cordless Hammer Drills
(1)
(7)
(16)
(13)
(12)
(10)
(9)
(17)
(11)
(5)
(14)
(15)
(2)
(3)
(4)
(6)
(8)
(1) Keyless chuck
(2) Depth gauge
(3) Auxiliary handle
(4) Wing bolt for depth stop adjustment
(5) Adjustable clutch
(6) Rapid Mode Selector
(7) Gear shifter/speed range selector
(8) LED for leveling function
(9) Handle (insulated gripping surface)
(10) Connectivity module compartment
(11) Belt clip
(12) Battery pack
(13) Battery pack release button
(14) User Interface
(15) Bit holder
(16) Forward/reversing lever and trigger lock
(17) Variable speed trigger switch
FIG. 1
2610056705 GSB18V-1330C 04-21.qxp_GSB18V-1330C GSR18V-1330C 5/3/21 7:00 AM Page 9
