9

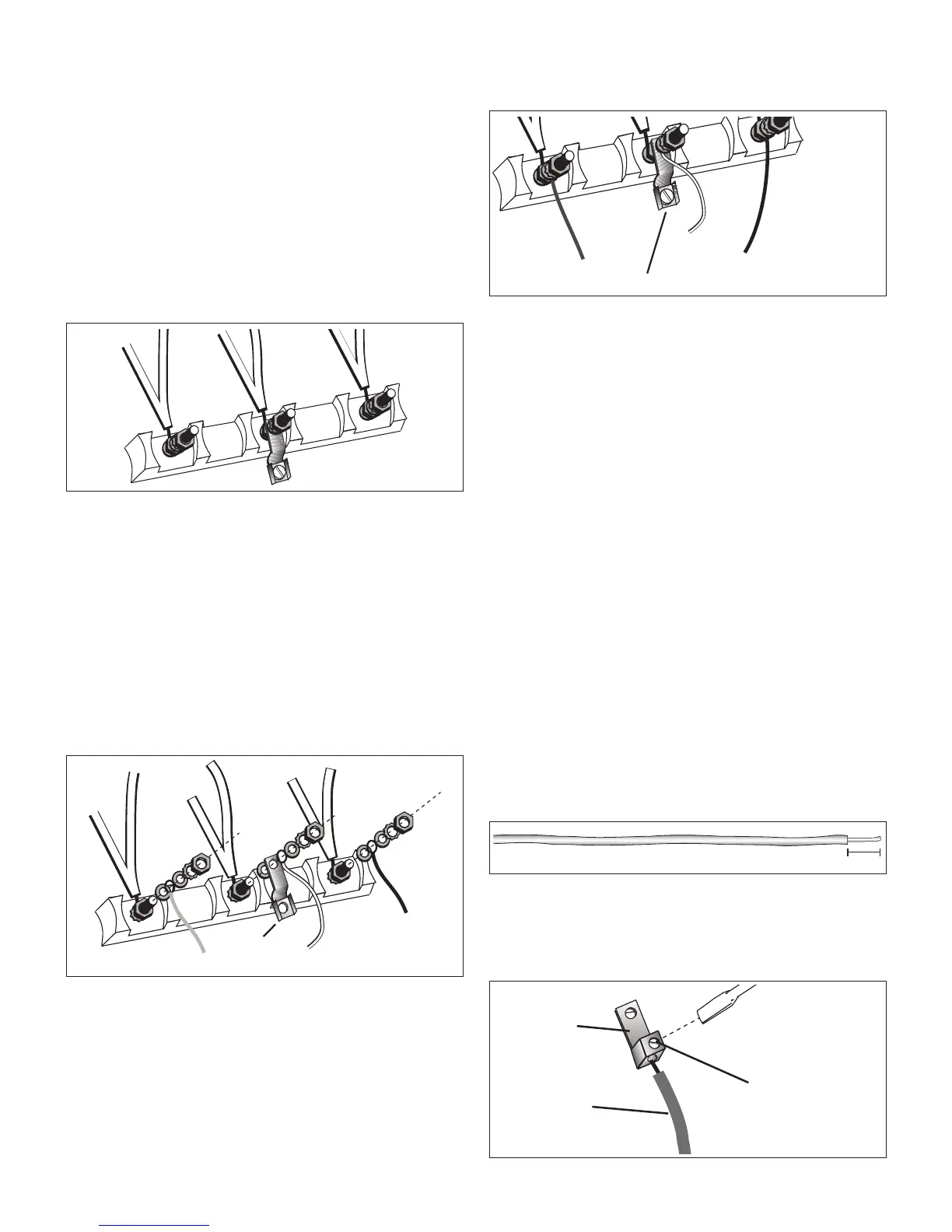

Three Wire Range Cord Connection
where local codes and ordinances permit grounding
through neutral and where conversion to four wire is
impractical, the unit may be connected to the power
supply via a three wire connection.
1.
2. Remove the terminal block cover to expose the
terminal block.
3. Remove top nut, star washer, and round washer
from each post.
Note:
internal wiring leads.
4.
center post.
5.
6.
red
white
black
ground strap
7. -
minal block cover.
green ground screw
8. Properly secure strain relief (see previous section).
Note:
Four Wire Flexible Conduit Connection
1.
2. Remove the terminal block cover to expose the
terminal block.
3. Remove the top nut, star washer, and round
washer from each post.
Note:
internal wire leads.
4. Remove screw from bottom end of ground strap.
5.
6.
manual) through hole below terminal block with
ground screw.
7. Place one terminal lug (packaged with this man-
ual) on each post. Replace the star washer and
round washer and secure with 20" pounds of
torque.
8.
the wire.
3/8 “
9. Insert the insulated grounding wire into the lug
below the terminal block.
10. Insert stripped end of white wire into the center
lug
clamping screw
wire
To Next Page
