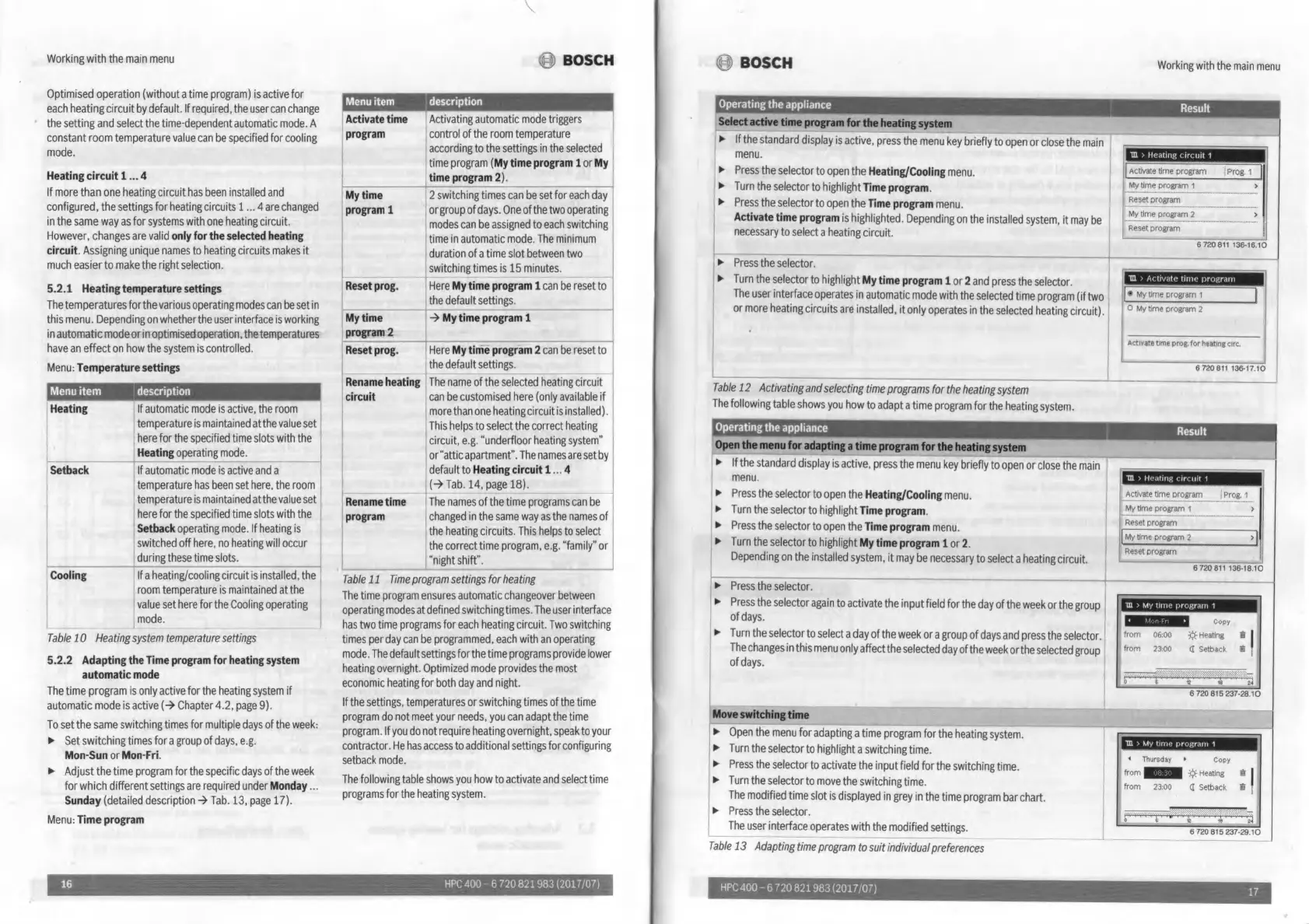

Working with the main menu
Optimised operation (without a time program) is active for
each heating ci rcuit by default. If required . the user can change
the setting and select the time - dependent automatic mode _ A
constant room temperature value can be specified for c ooling
mode .
Heating circuit 1 ... 4
If more than one heating circuit has been installed and
configured . the settings for heating circuits 1 . .. 4 are changed
in the same way as for systems with one heating circuit.
However . changes are valid only f or the selected heating
ci rcuit. Assigning unique names to heating circuits makes it
much easier to make the right selection .
5.2.1 Heating
temperature settings
The temperatures forthe various operating modes can be setin
this menu . Depending on whether the user interface is working
in automatic mode or inoptimised operation . thetemperatures
have an effect on how the system is controlled .
Menu : Temperatur e setti ngs
Menu item deSCription
I He ati ng
Setback
I C ooling
If automatic mode is act i ve . the room
temperature is maintained at the value set
here for the specified time slots with the I
Heat i ng operating mode .
----t If automatic mode is active and a
temperature has been set here. the room
temperature is maintained at the value set
I here for the specified time slots with the
Setback operating mode . If heating is
!
switched off here . no heating will occur
during these time slots _. __ _
Ilf a
heating/cooling circuit is installed . the :
I room temperature is maintained at the
va l ue set here for the Cooling operating I
mode.
Table 10 Heating system temperature settings
5.2 .2 Adapting the Ti me progr am for heat in g system
automatic mode
The time program is only active for the heating system if
automatic mode is active (~Chapter 4.2. page 9) .
To set the same switching times for mu ltiple days of the week :
~ Set switching times for a group of days . e.g.
Mon - Sun or Mon - Fri .
~ Adjust the time program for the specific days of the week
for which different settings are required under Monday ...
Sunday (detailed description ~ Tab . 13 . page 17).
Menu : TI me pro gram
\
8 BOSCH
Activating automatic mode triggers
I
program control of the room temperature
according to t he settings in the selected
time program ( My time program l or My
I I time progr >.:. a=m :.:...:; 2) :..:,' -:----::----;--:---1
I- M- y- t- Im - e --- 2 switching times can be set for each day
I
program 1 or group of days . One of the two operating
modes can be assigned to each switching
time in automatic mode . The minimum
l
duration of a time slot between two
switching times is 15 minutes .
Reset pro g. Here My time program 1 can be reset to
the default settings .
My ti me
~ My ti me program 1
propaIII2 I
J..:! Re --= se =- t- pr -O-g-. --+ H 7 e - re -: M ~ y -::- time program 2 can be reset to
the default settings.
t Renam e heating ' The name of the se l ected heating circui~
ci rcuit can be customised here (only available If
more than one heating circuit is installed) .
I
This helps t~ se l ect the correct heating .
circuit . e.g. underfloor heating system
I Rename ti me
program
l
or " attic apart m ent" . The names are set by
default to Heating circuit 1 ... 4
(~Tab . 14. page 18) .
I The names of the time programs can be
changed in the same way as the names of
I the heating circuits . This he l ps to select
I
the correct time program . e.g. " family " or
" night shift ".
Table 11 Time program settings for heating
The time program ensures automatic changeover between
operating modes at defined switching times . The user interface
has two time programs for each heating circuit. Two switching
times per day can be programmed . each with an operating
mode . The default settings for the time programs provide lower
heating overnight. Optimized mode provides the most
economi c heating for both day and night.
If the settings . temperatures or switching times of the time
program do not meet your needs . you can adapt the time
program . If you do not require heating overnight. speak to your
contractor. He has access to addit i onal settings for configuring
setback mode .
The following table shows you how to activate and select time
programs for the heat i ng system .
16 HPC400- 6720821983(2017!07}
BOSCH
Working with the ma in menu
Operating the appliance Result
!WIc:t ........................ ..-
~ If the standard display is active . press the menu key briefly to open or close the main
menu .
~ Press the selector to open the He ati ng/Cool ing menu .
~ Turn the selector to highlight TIme prog r am .
~ Press the selector to open the TI me pro gra m menu .
Activat e ti me program is highlighted . Depending on the installed system . it may be
necessary to select a heating circuit.
~ Press the selector.
~ Turn the selector to highlight My ti me program 1 or 2 and press the selector .
The user interface operates in automatic mode with the selected time program (if two
or more heating circuits are installed . it only operates in the selected heating circuit). !
L--
Table 12 Activating and selecting time programs for the heating system
The follow i ng table shows you how to adapt a time program for the heating system .
~ If the standard display is active. press the menu key briefly to open or close the main
menu .
I ~ Press the selector to open the Heat ing/ Coolin g menu .
~ Turn the s elector to highl i ght TI me progra m.
~ Press the selector to open the TI me pr ogram menu .
~ Turn the selector to highlight My time progr am 1 or 2.
Depending on the installed system . it may be necessary to select a heating circuit.
~ -- - I
~ Press the selector . I
~ Press the selector again to activate the input field for the day of the week or the group
of days .
~ Tum the selector to sele ct a day of the week or a group of day s and press the selector.
The changes in this menu only affect the selected day of the week orthe selected group
of days .
.....~ ...
I ~ Open the menu for adapting a time program for the heating system .
~ Turn the selector to highlight a switching time .
~ Press the selector to activate the input field for the switching time .
I ~ Turn the selector to move the switch i ng ti me .
tJ
The modified time slot is displayed in grey in the time program bar chart .
~ Press the selector.
The user interface operates with the modified setting s.
- -- -
Table 13 Adapting time program to suit individual preferences
• My time program 1 J
o Mf tim. orOil1lm 2
ActlUtt time prtll- (or htatlnc eIre.
6 720 811136-17. 10
from
from
0600
23.00
COP,
j}H .....
a Setback
6720
~ ThursdlY . copy
from _ j}Heatlng
from 2300
a S.tback
"
-
-,
6 720 81 5 237-29.10
HPC400 6720821983(2017/07) 17
