Bosch LM Split CS Series - Page 39

Wiring Diagrams | 39LM Split CS Series Heat Pump
8733827906 (2021/11)LM Split CS Series Heat Pump
Subject to change without prior notice

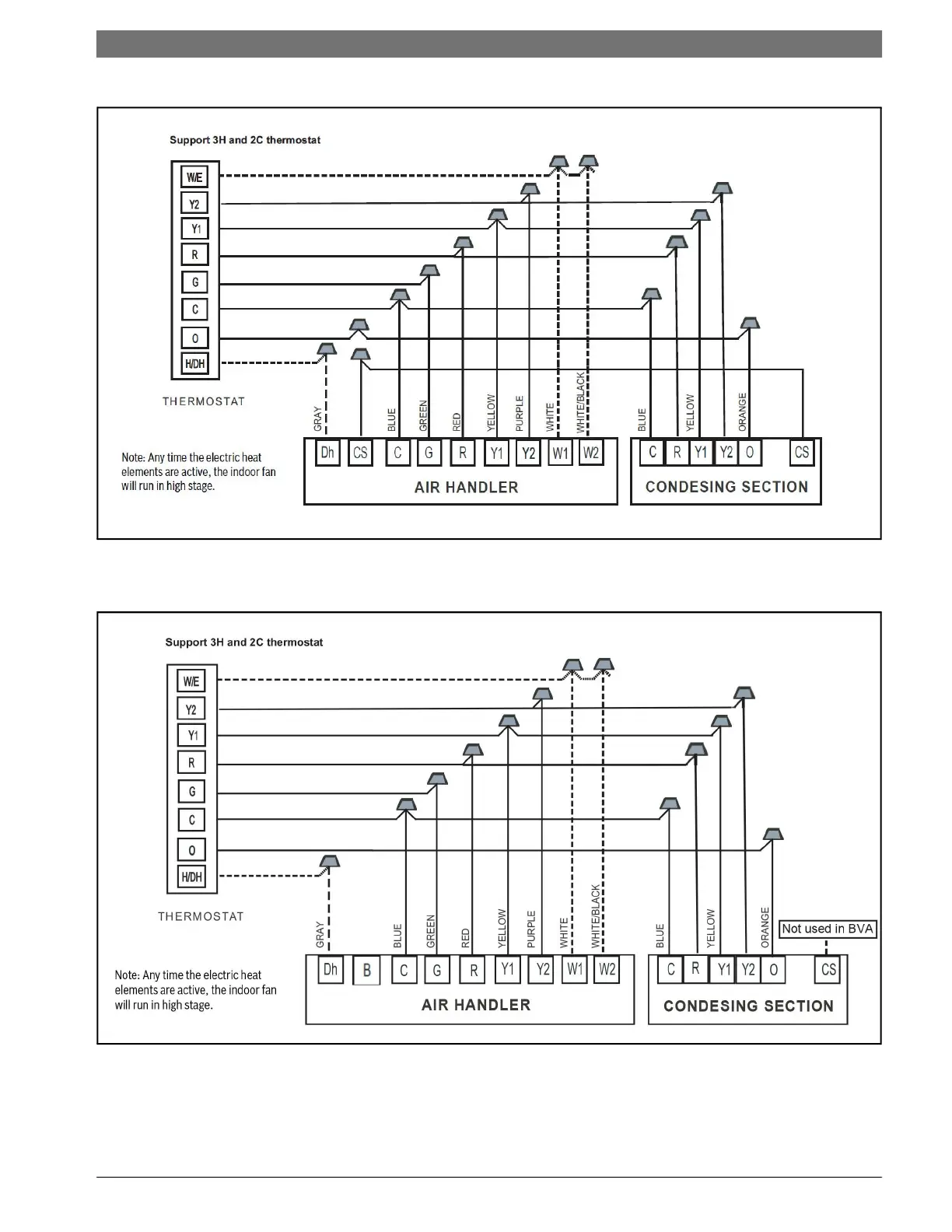

LM Split CS + LM Split AH/AV Air Handler Thermostat Wiring Diagram
Fig. 16 LM Split CS + LM Split AH/AV Air Handler Thermostat Wiring Diagram
LM Split CS + BVA2.0 Air Handler Thermostat Wiring Diagram
Fig. 17 LM Split CS + BVA2.0 Air Handler Thermostat Wiring Diagram
