VCA mark, metadata What it indicates
A solid box The visible imager detected an object.
A dotted box The thermal imager detected an object.
VCA mark, trajectory line What it indicates
A solid green trajectory line The visible imager detected an object and indicated its
trajectory.
A dotted green trajectory line The thermal imager detected an object and indicated its
trajectory.

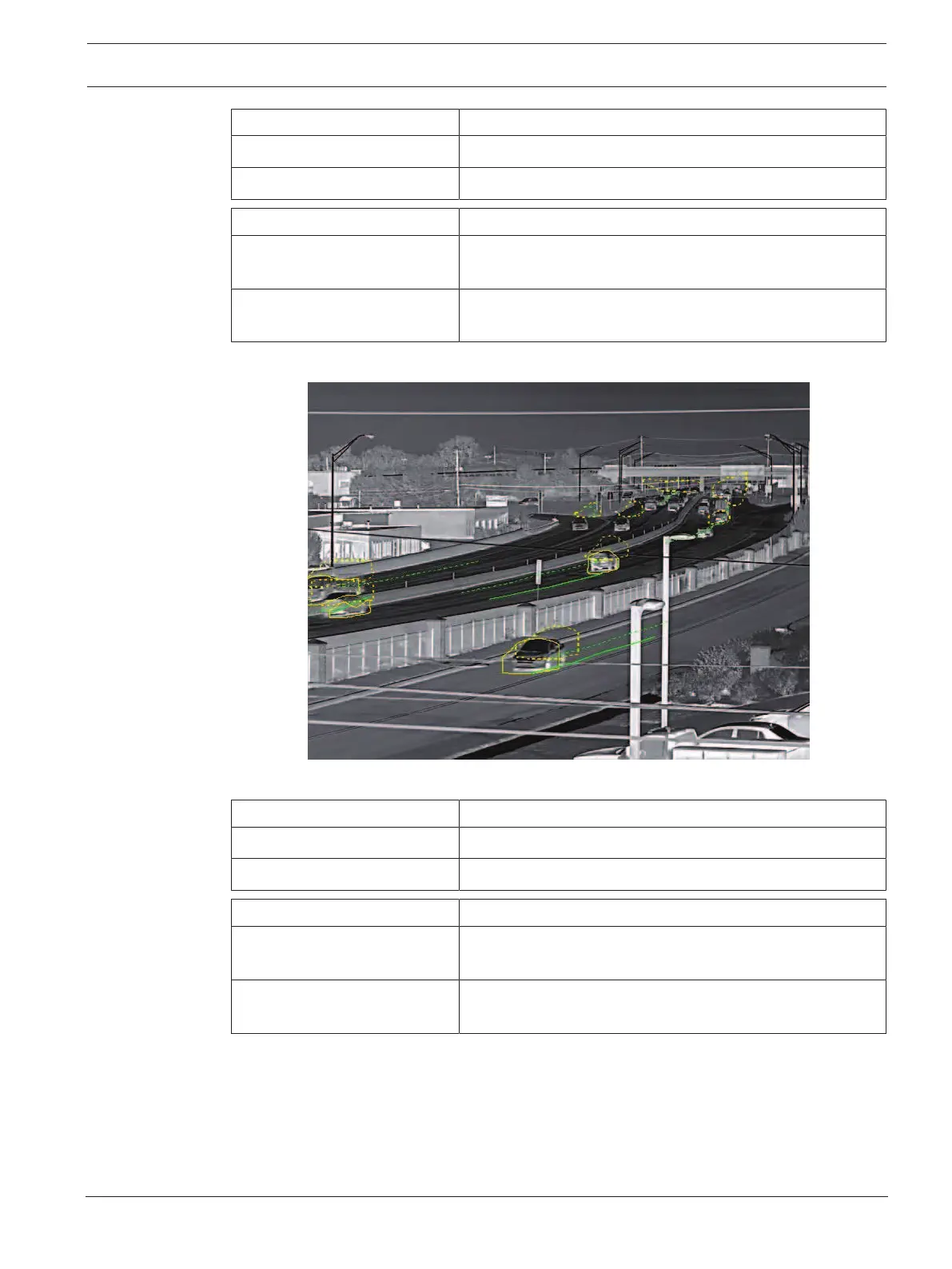

VCA marks on the thermal image
Image from thermal imager with VCA metadata and trajectory lines
VCA mark, metadata What it indicates
A solid box The thermal imager detected an object.
A dotted box The visible imager detected an object.
VCA mark, trajectory line What it indicates
A solid green trajectory line The thermal imager detected an object and indicated its
trajectory.
A dotted green trajectory line The visible imager detected an object and indicated its
trajectory.
Depending on your use case, one imager may be better to use (more frequently) than the
other.
VCA Indicators for objects outside the Field of View (FOV)
It is possible that the VCA on the image stream not currently being viewed may detect objects
that are outside the field of view of the image stream that is being viewed.
