66/104 Commissioning
Bosch Rexroth AG, A4... with HS5E pilot control valve/Series 3x, RE 92076-01-B/10.2017
8.1.5.1 Setting pressure sensors, voltage, or current interface X2M1, X2M2
(analog inputs/outputs)

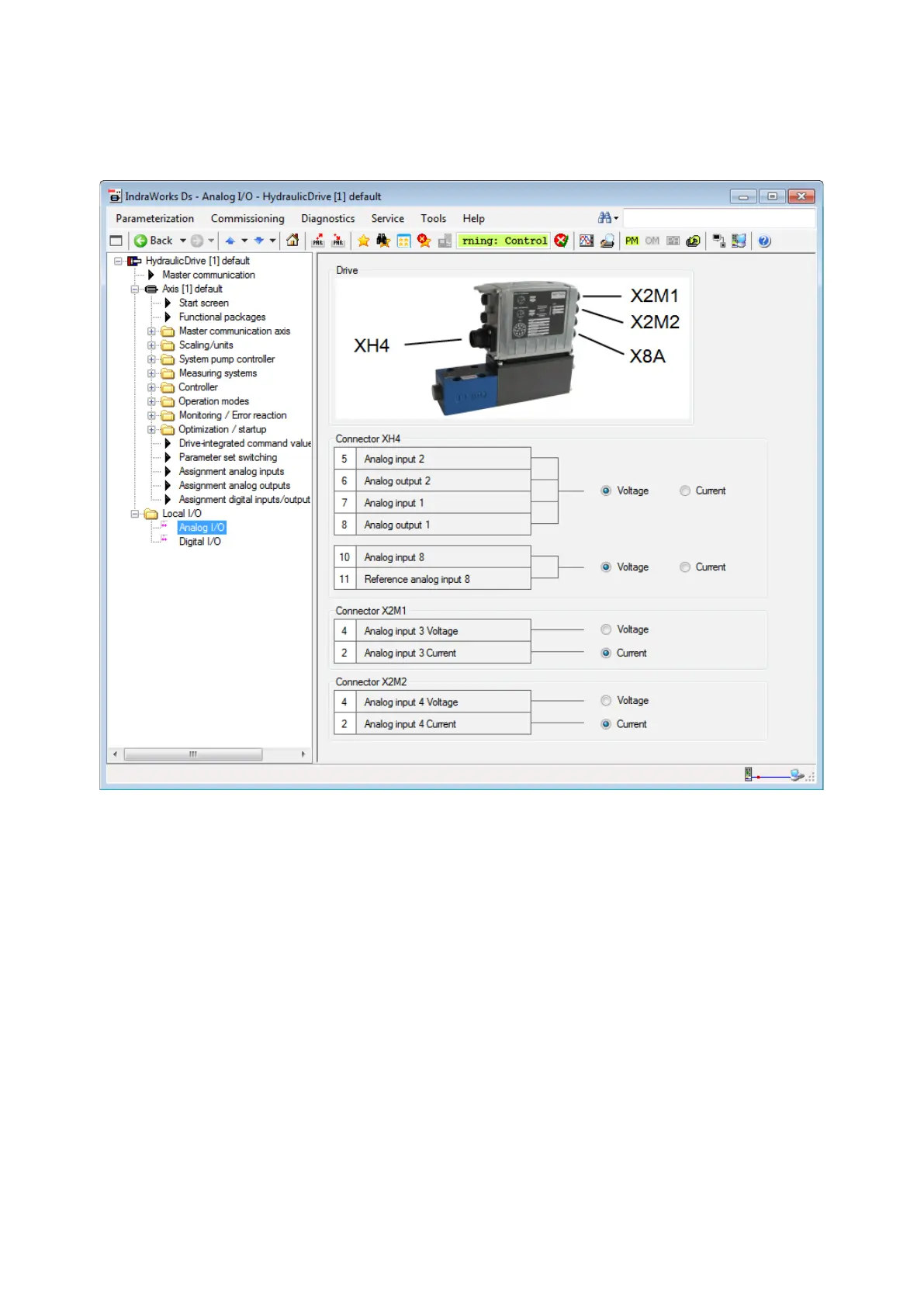

Fig. 20: Setting pressure sensor, voltage or current interfaces
8.1.5.2 Settings of pressure transducer
With some applications, it can be an advantage to be able to switch between several
pressure transducers. The HS5E control system gives you the option of connecting
two pressure transducers. For this, you must configure two assignments for the
corresponding analog inputs with destination actual pressure value1 (P-0-2940) and
actual pressure value2 (P-0-2941). The assignment with destination actual pressure
value1 must always be present, since the HS5E control system always needs one
valid actual pressure value for control. Refer to chapter7.6.7 on page58 for the
various options for connecting a pressure transducer.
New screenshot
from Martin
