Bosch REXROTH A4VSO User Manual

52/104 Installation
Bosch Rexroth AG, A4... with HS5E pilot control valve/Series 3x, RE 92076-01-B/10.2017
10
3
1
2
4
5
6
9 8 7

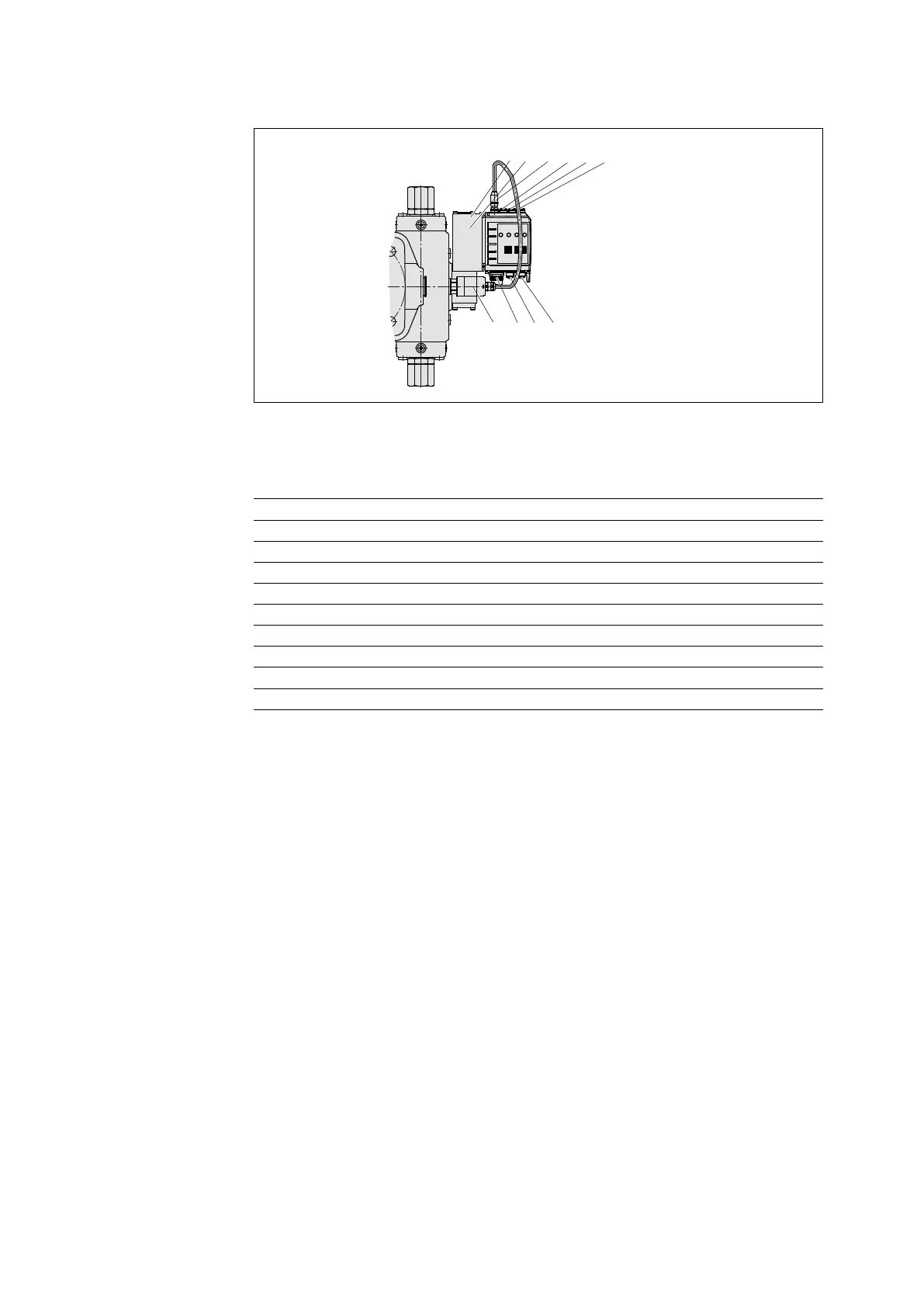

Fig. 17: Port overview A4VSO with HS5E controller, clockwise rotation
Table 13: Example A4VSO, sizes 40 to 1000
1 Proportional solenoid
2 Inductive position transducer for valve position
3 Swivel angle actual value input X8A
4 Reserved, X2N
5 Configurable sensor interface X2M2 (pressure sensor input)
6 Configurable sensor interface X2M1 (pressure sensor input)
7 Multi-EtherNet interface X7E1
8 Multi-EtherNet interface X7E2
9 Plug-in connector XH4
10 VT-SWA-LIN-G15 swivel angle sensor
