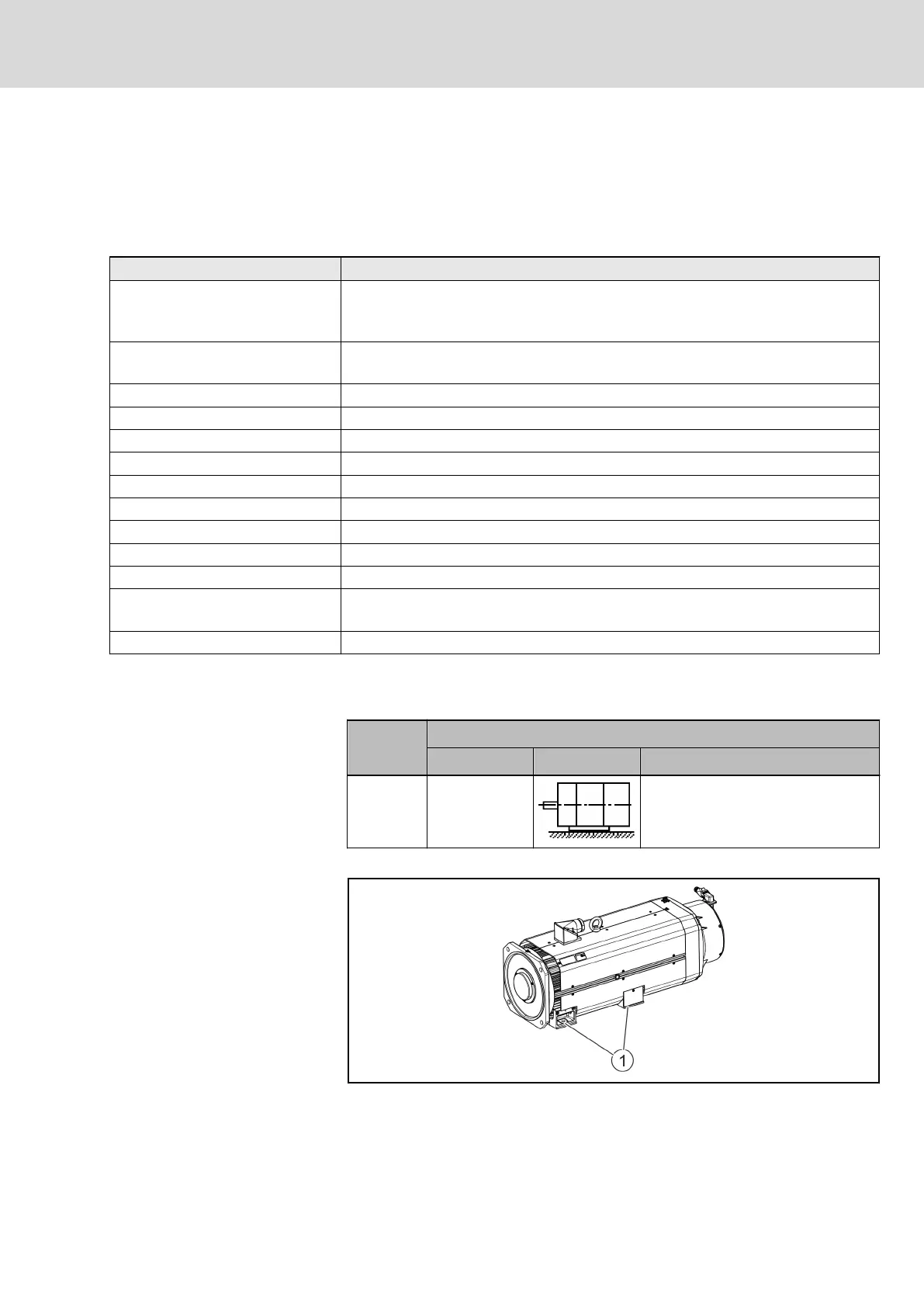

4 About this product
4.1 Product description
4.1.1 Technical features
Product Kinetic Energy Buffer
Manufacturer
Bosch Rexroth Electric Drives and Controls GmbH
Buergermeister-Dr.-Nebel-Straße 2
97816 Lohr am Main, Germany
Type
BA1N16, water-cooled
BA1N16,forced ventilation
Listed acc. to CSA standard in preparation
Listed acc. to UL standard in preparation
Ambient temperature during operation 0 … 40 °C
Frame shape IM B3 (DIN EN 60034-7)
Degree of protection IP65 (DIN EN 60034-5)
Flange acc. to DIN 42955
Installation altitude 0 ... 1000 m
Sound pressure level < 75 dB(A)
Insulation class 155 (DIN EN 60034-1)
Electrical connection
Power connection: Device connector
Encoder connection Device connector
Encoder system AS (Singleturn, Hiperface®, 16 signal periods)
4.1.2 Frame size
Frame size
Allowed installation types
Designation Drawing Installation
IM B3 IM 1001 Foot assembly, feet at the bottom
Tab. 4-1: Allowed installation positions
① Mounting feet (bilateral); hole clearance see dimension sheet
Fig. 4-1: Attachment of the BA1N energy storage device
