5.2 Features and functions
5.2.1 Basic data
Product 3~ PM motor
Type MS2S
Ambient temperature during
operation
0 ... 40 °C (with derating up to 60 °C)
Protection class (EN 60034-5) IP65 with shaft sealing ring
Cooling mode (EN 60034-6) IC410, Self-cooling
Motor design (EN 60034-7) IM B5
Coating Varnish RAL 9005
Flange similar to DIN 42948
Shaft end Cylindrical (DIN 748 part 3), centering hole with thread “DS” (DIN 332 part 2),
Concentricity, run-out, alignment Standard tolerance N (DIN 42955)
Oscillating quantity level Level A (EN 60034-14) up to the rated speed
Installation altitude 0 ... 1,000 m above sea level (without derating)
Sound pressure level MS2S03 ... MS2S05: 75 dB(A) +3 dB(A)
Thermal class 155 (F) (EN 60034-1)
Encoder system Basic Performance ctrlX SENSE
motor
Magnetic 18 bit encoder, digital in Multiturn design for operation on ctrlX con-
trollers
Electrical connection Single cable connection with circular connector M17, rotatable, quick lock
SpeedTec®
Holding brake (option) Electrically released U
N
24V DC (±10%)

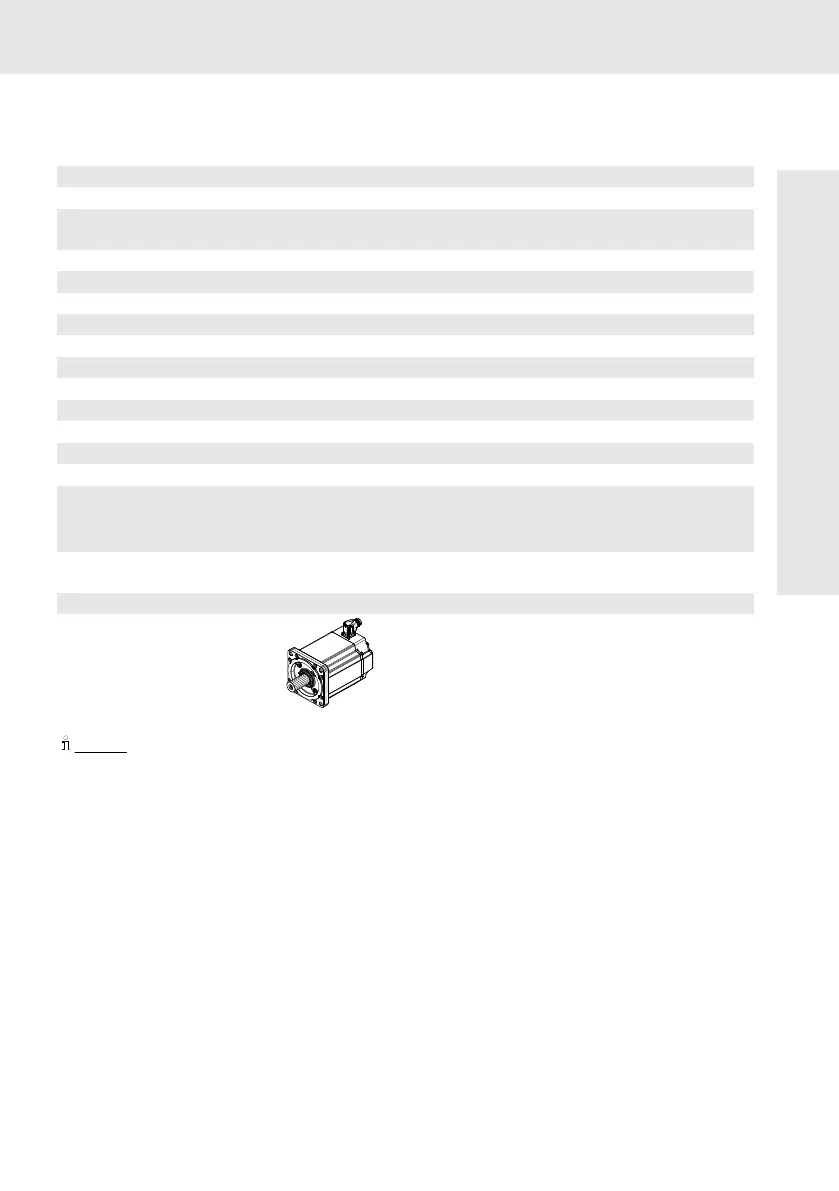

Motor ends
DE
NDE
L
R
Drive End, A-side
Non Drive End, B-side
Left
Right
Remark: In the case of special design, details
named in the operating instructions can deviate.
In this case, order the supplementary documen-
tation.
