Power Supply 3-1
3 Power Supply
The RM2-DP12 necessitates an external 24 V power supply. The X10
connection for the 24 V power supply is located on the front panel.
The RM2-DP12 module provides the internal 7.5 V power supply for the
in- and output modules, so that an additional power supply unit for the
internal supply of the modules is not necessary (also refer to I/O
modules).
CAUTION
Do not operate the RM2-DP12 module together with an NT200
power supply unit or with a ZE200 central unit.
X10 pin assignment:
Pin Designation
1 24 V
2 0 V

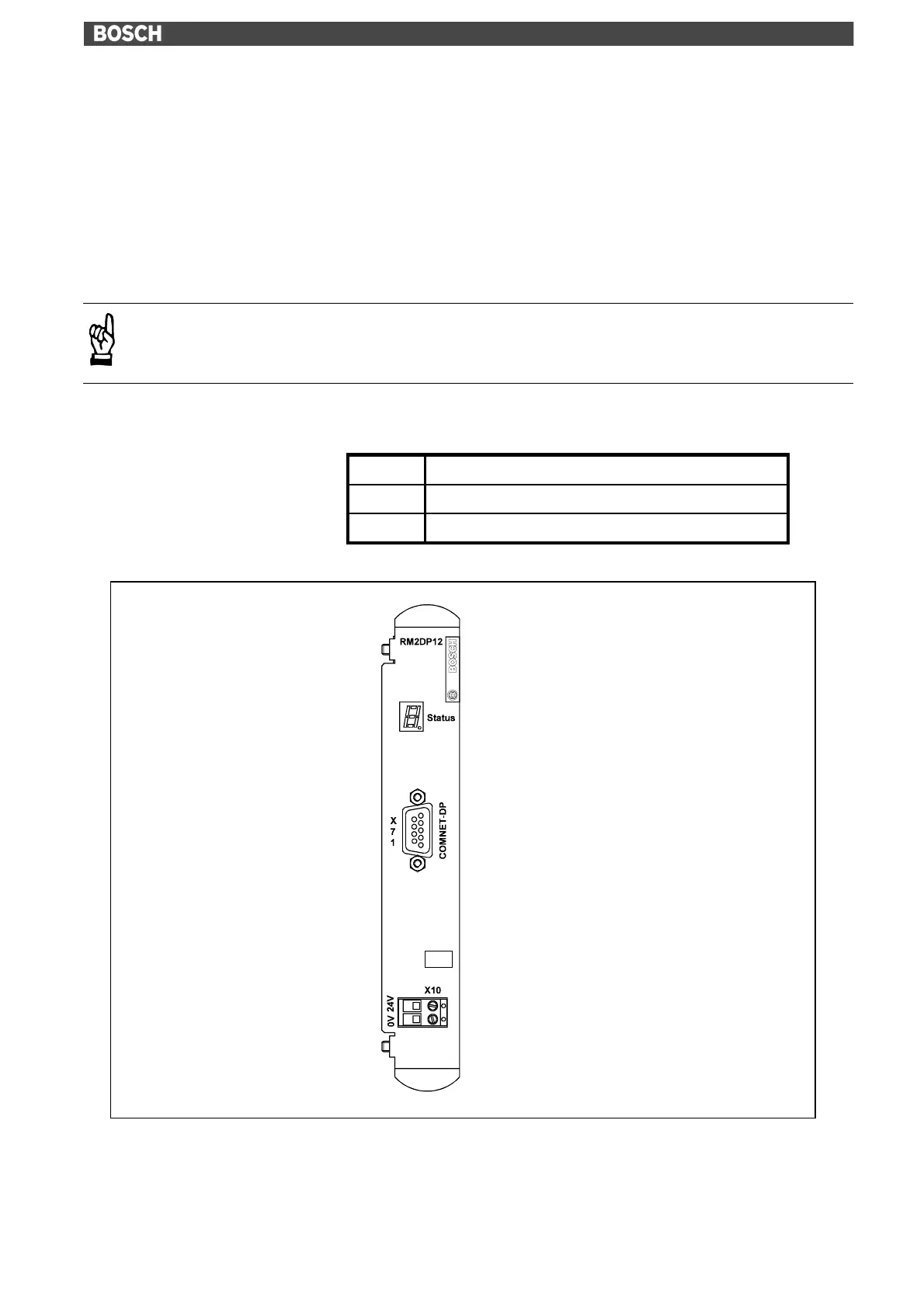

Fig. 3 X10 power supply
