Component Access/Replacement
Component Access/Replacement
Circulation Pumps
Circulation Pumps
-
-
Access (1)
Access (1)
The circulation pump & capacitor are accessed from the right
side of the dishwasher by removing the right side panel and
blocking the tank.

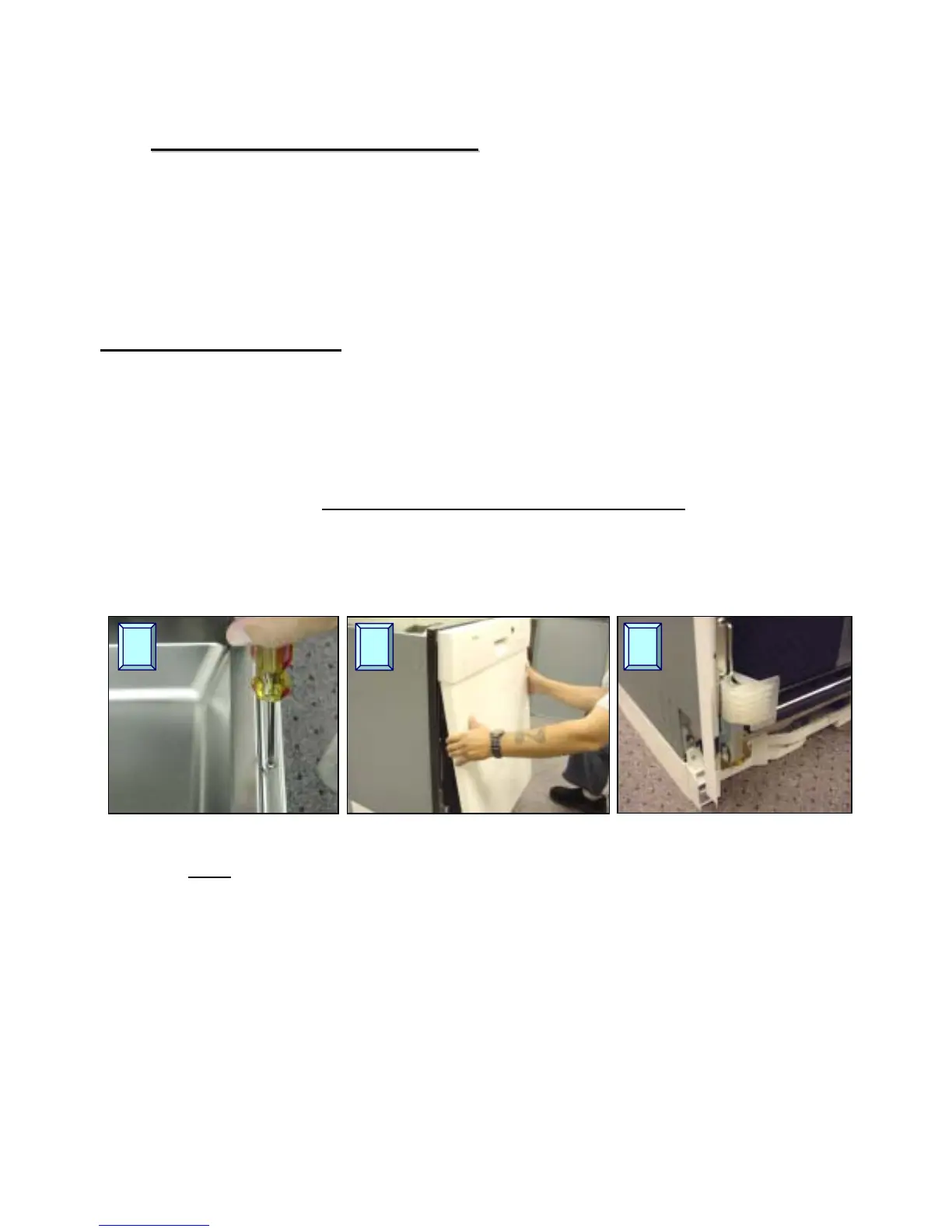

To remove outer door:
Remove six T-20 Torx inner door screws below fascia panel -- three
per side (1).
Carefully pull bottom of outer door out from dishwasher until top
door tabs clear, then pull door down until it releases from
dishwasher (2). Take care to not scratch outer door
.
Remove two plastic door guards (3). They occasionally fall out
when the outer door is removed.
1
2
3
HINT: The fascia panel and door don’t need to be removed to access
the circulation pump. However, they must be removed to completely
remove the tank.
