Component Access/Replacement
Component Access/Replacement
Circulation Pumps
Circulation Pumps
-
-
Access (2)
Access (2)

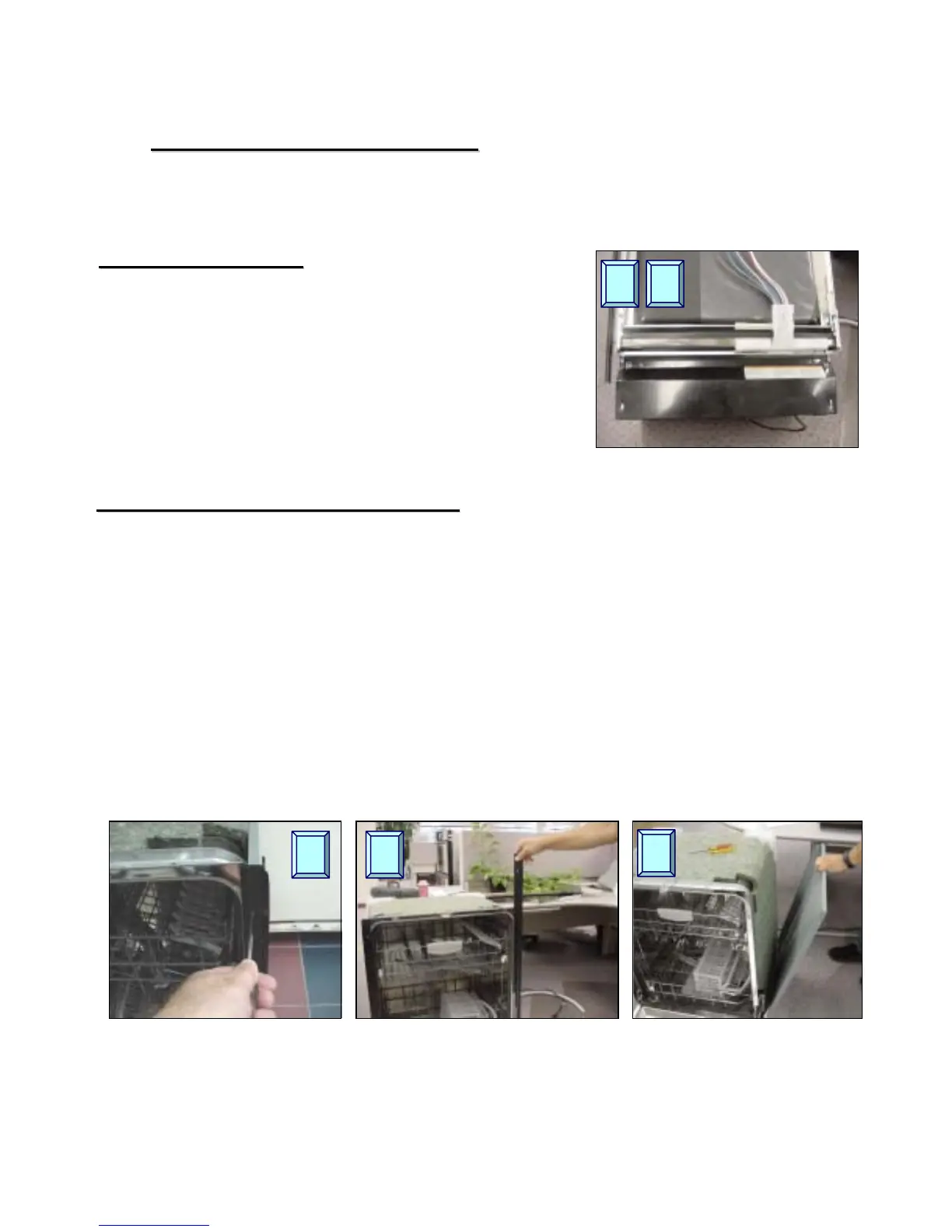

To remove toe kick
To remove toe kick
:
:
Remove two T-20 Torx screws
from toe kick (1).
Tilt toe kick out from under
dishwasher (2).
21
To remove right & left side panels
To remove right & left side panels
:
:
Remove two T-20 Torx side panel screws through holes in left &
right trim strips (1).
Carefully slide trim strips up and out of dishwasher (2). If side
panels are removed carefully to avoid damaging trim strips, then
trim strips don’t need to be removed.
Lift side panels up and out from dishwasher (3). Panels can be
removed with trim strips. Although removing the left side panel isn’t
necessary for access, it does allow the right side of the tank to be
blocked upward.
1 2
3
To Next Page
