Troubleshooting

Control Module

–

Using # 481055 Control Modules in Older

SHU 99 and SHV 43/48 Dishwashers (1)

Control module # 265401 used on older SHV 43/48 and SHU 990x/991x

UC/06, UC/07 & UC/11 models has been replaced by control module #

481055 used on all newer SHU 99 & SHV 43/48 UC/12 models. Since

module # 481055 has slightly different wash cycles and an end of cycle

tone compared to the # 265401 module, the pushbutton pad for the

dishwasher must also be changed so the wash cycles will be shown

correctly. Please follow these instructions to order the correct

pushbutton pad and to turn off the end of cycle tone for older models.

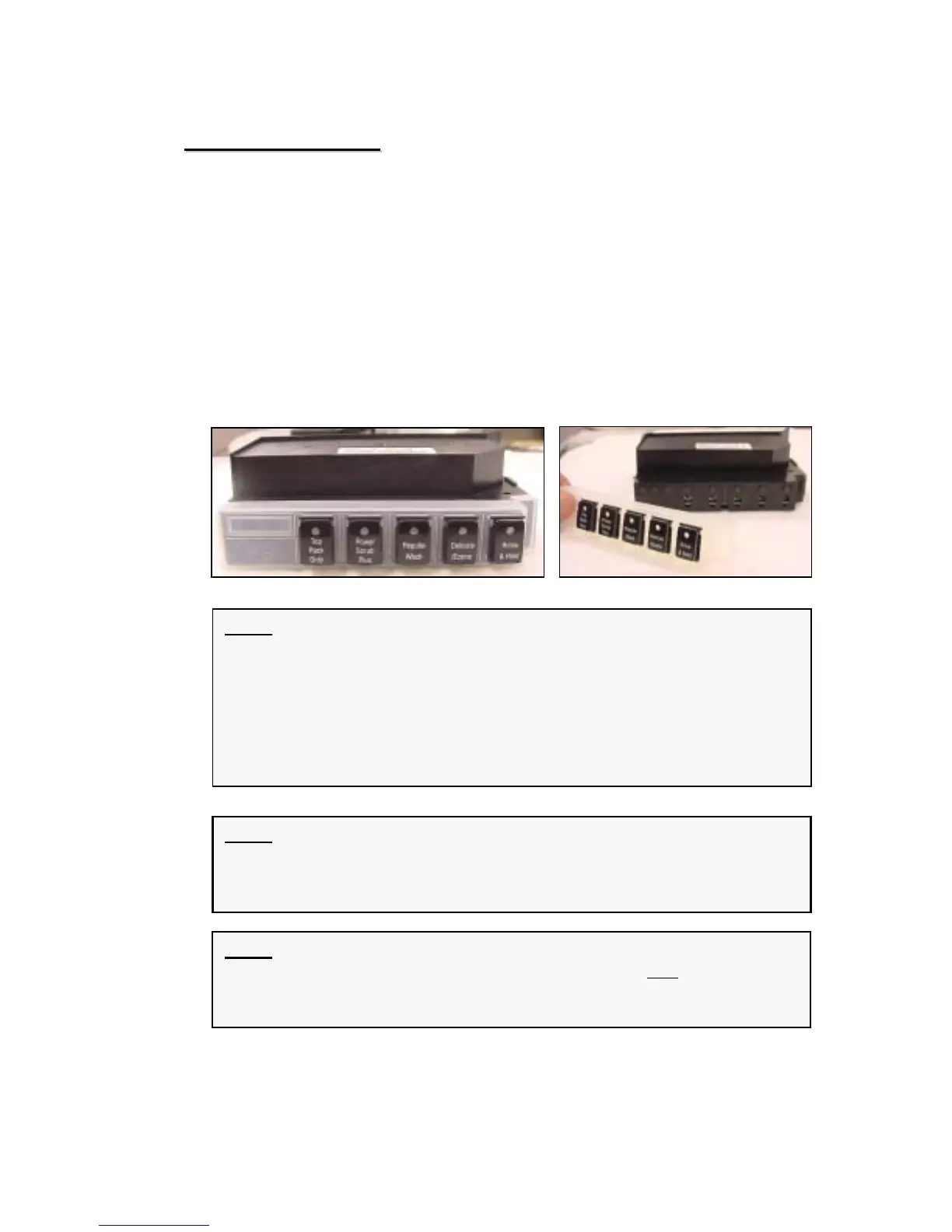

NOTE: When replacing pushbutton pads for older SHV 43/48 & SHU

990x/991x models when the # 265401 control module won’t be replaced

(I.e. the # 265401 control is functional and is still being used), use the

following button pads:

 # 170424 4-button pad for SHV 43 & SHU 990x/991x models (instead of

# 182605)

 # 170423 5-button pad for SHV 48 models (instead of # 182600)

NOTE: When replacing control module # 481055 for newer SHV 43/48 &

SHU 991x/992x models, button pads don’t need to be replaced. If the

button pads are worn, order # 4-button pad # 182605 (for SHV 43 & SHU

991x models) or 5-button pad # 182600 (for SHV 48 & SHU 992x models).

NOTE: When replacing control module # 265401 for older SHV 43/48 &

SHU 990x/991x models, use module # 481055 along with

4-button pad #

182605 (for SHV 43 & SHU 990x/991x models) or 5-button pad # 182600

(for SHV 48 models).
