Component Access/Replacement
Component Access/Replacement
Control Modules
Control Modules
-
-

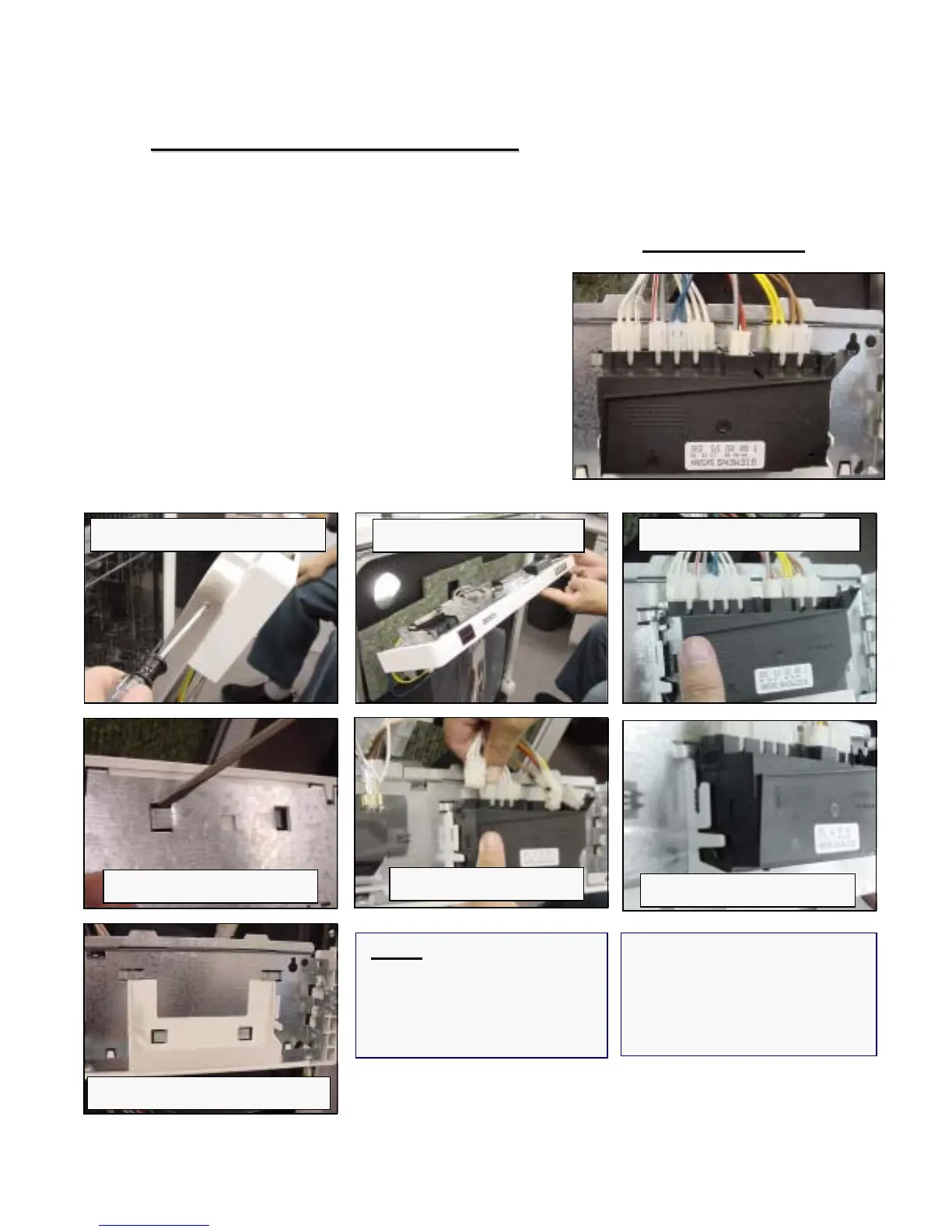

Disassembly (1)
Disassembly (1)
Control modules are easily removed from
fascia panels by bending console tabs.
(SHU 9922 shown)
 Remove fascia panel by removing T-20
Torx inner door screws.
 Disconnect wire harnesses from module
after noting connector locations.
 Pry out metal console tabs holding
module to console.
 Carefully pry back plastic tabs, then slide
module from console.
Removing door screws
Removing fascia panel
Viewing control module
Disconnecting wires
Bending back tabs
Sliding module out
Console without module
NOTE: Control modules
for non-integrated models
look differently and have
different tabs, but are
removed using the same
procedure.
NOTE: Control modules
for non-integrated models
look differently and have
different tabs, but are
removed using the same
procedure.
