41
VI.
VI.
Component Access/Replacement
Component Access/Replacement
Control Modules
Control Modules
–
–
Apexx
Apexx

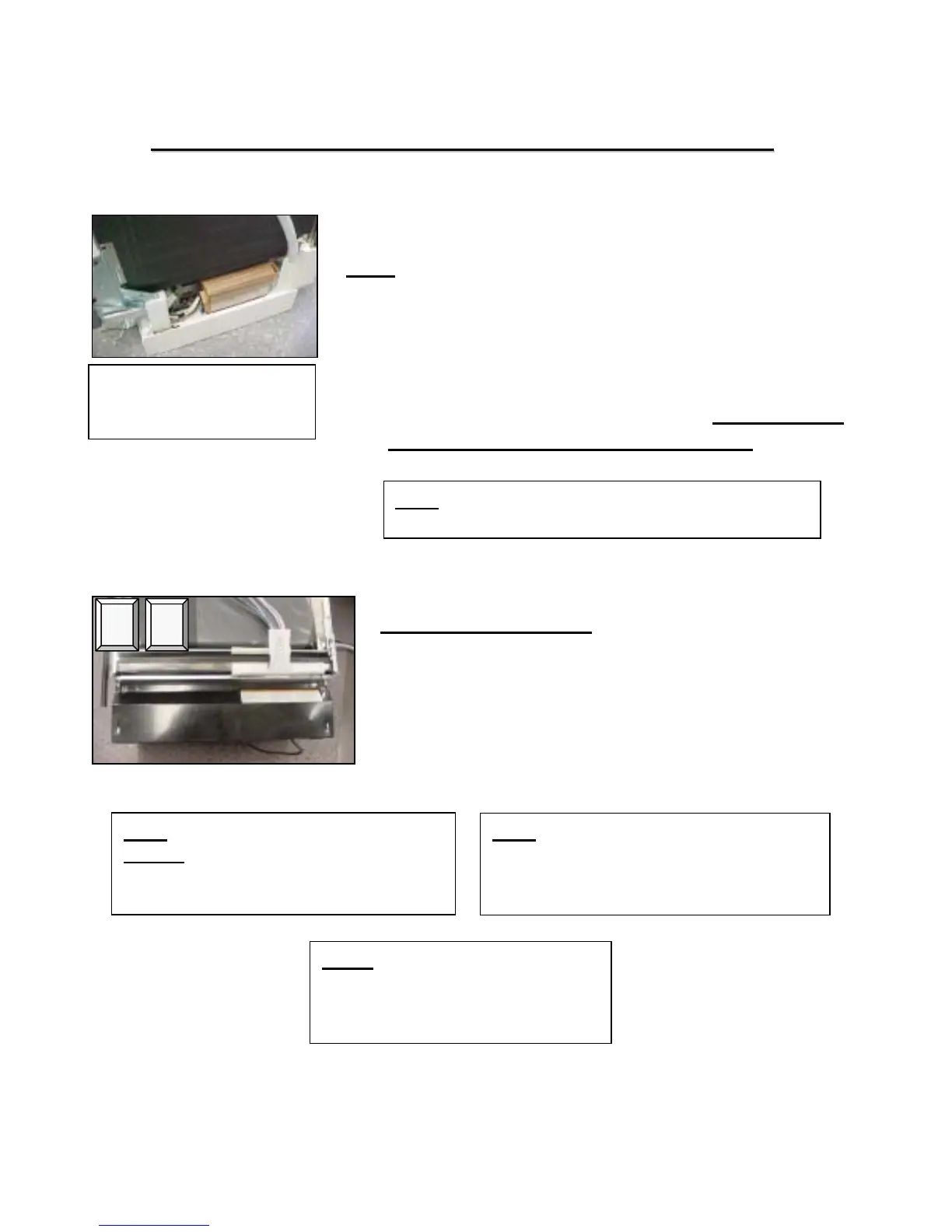

Control Module Disassembly (1)
Control Module Disassembly (1)
These instructions apply
to SHV/SHX/SHY99A
models.
Apexx (SHV99A/SHX99B/SHY99A) control
modules are different than other models and are
removed differently. Modules are mounted on the
base
(where base wiring connectors were), not
behind fascia panels. This means:
• Dishwashers must be pulled out to change
control modules.
• Dishwashers must be pulled out to measure
voltages & resistances -- dishwashers
cannot be diagnosed from the front.
HINT: Its not necessary to remove outer
doors to access Apexx control modules.
To remove toe kick:
Remove two (2) T-20 Torx screws
from toe kick (1).
Tilt toe kick out from under
dishwasher (2).
21
HINT: Apexx control modules
cannot be checked or have
resistances measured from the
front of dishwashers.
HINT: It may be possible to reach
behind modules without blocking up
tanks. If not, then follow these
instructions to block up tanks.
NOTE: Modules were moved
to the base to make room for
the larger full text displays in
the fascia panel.
To Next Page
