Typical System Setup | 19SM Split CS Series Heat Pump

8733827905 (2021/11)SM Split CS Series Heat Pump

Subject to change without prior notice

TYPICAL SYSTEM SETUP

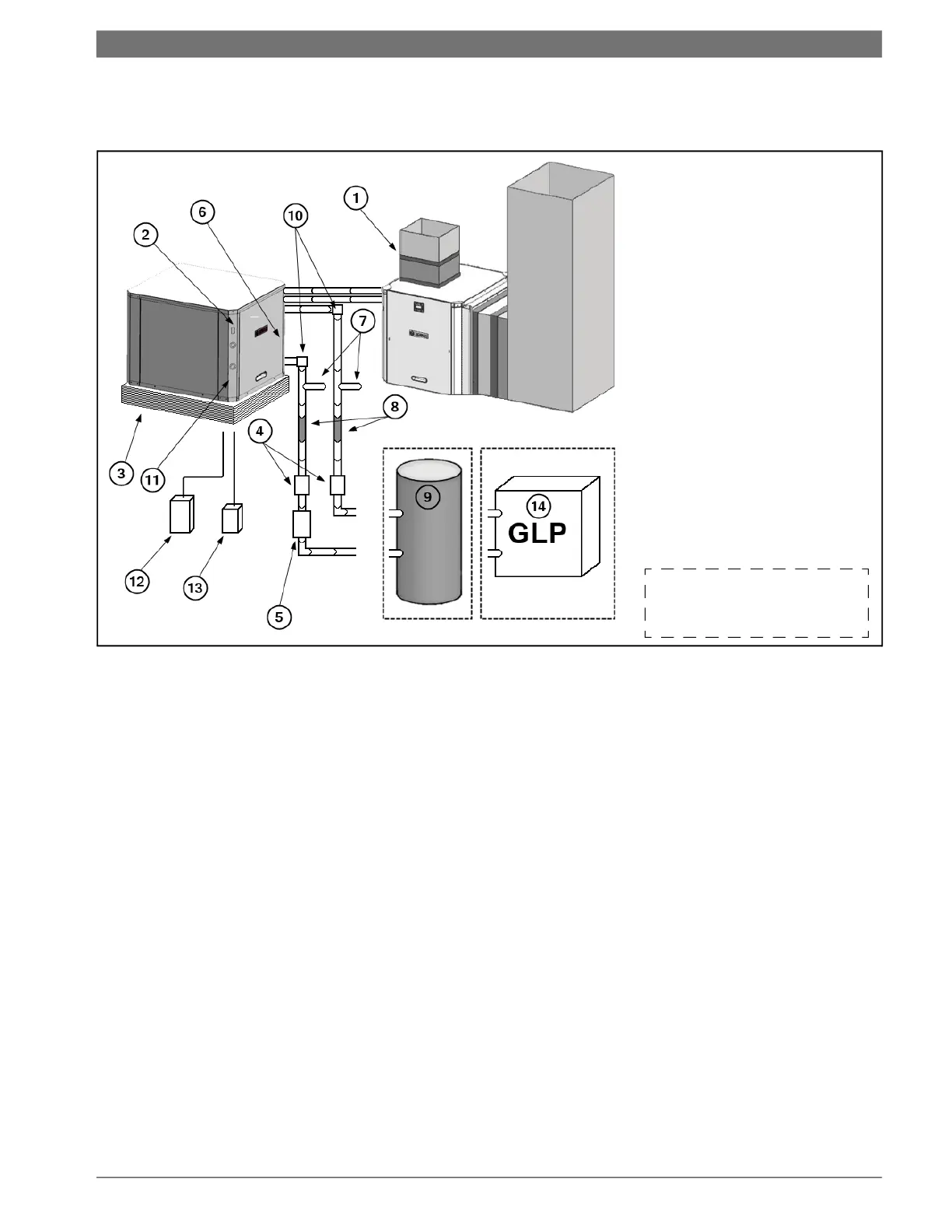

Fig. 9 Typical system setup

[1] Flex Duct Connection

[2] Low Voltage Control Connection

[3] Vibration Pad

[4] Ball Valves

[5] Solenoid Valve Slow Closing

[6] Condensate Drain Connection

[7] Drain Valves

[8] Hose Kits (optional)

[9] Pressure Tank (optional)

[10] P/T Ports (optional)

[11] Line Voltage Connection

[12] Electric Heater Line Voltage Disconnect

[13] Unit Line Voltage Disconnect

[14] Ground Loop Pumping Package

For Reference Only.

A typical setup is shown for

illustration purposes only.
