Vertical Configurability | 23SM Series Heat Pump
6 720 220 406 (2015/02)Revised 02-15

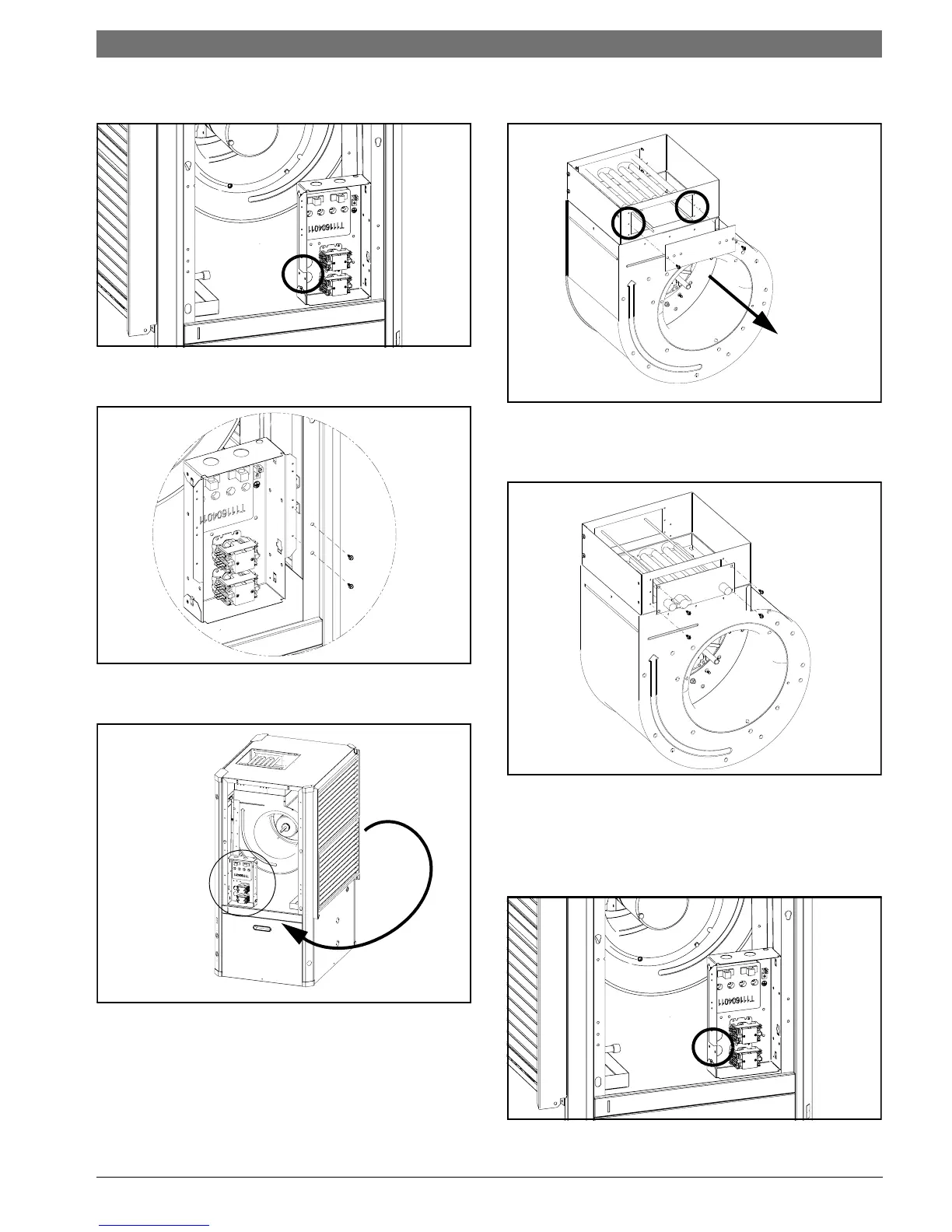

5. Disconnect main Electric Heat E-box
plug.(FIgure#74)
Figure # 74
6. Remove and retain Electric Heat E-box by
removing (2) screws.(Figure#75)
Figure # 75
7. Re-install Electric Heat E-box in the new
location. (Figure#76)
Figure # 76
8. Remove and retain Blower collar cover(s).
(FIgure#77)
Figure # 77
9. Re-install Electric Heat Elements in the new
location. Ensure High Temperature Cutouts are
located on the left side. (Figure#78)
Figure # 78
10. Route the Unit E-box to Electric Heat wiring
harness to the new Electric Heat Element
location.
11. Connect wiring harness to the connector on
the side of Electric Heat E-Box. (Figure#79)
Figure # 79
