Service Guide

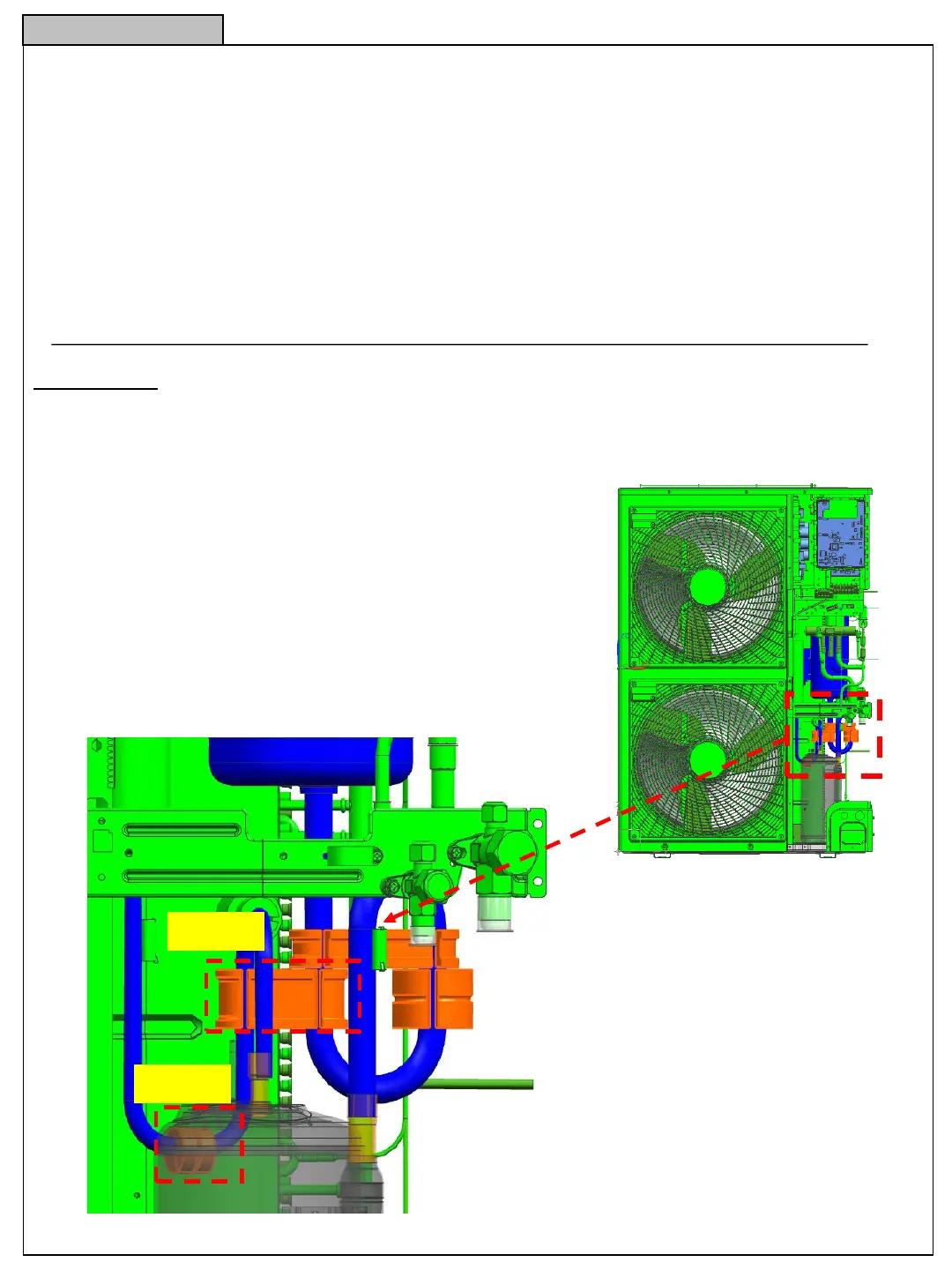

■ Detailed Instruction (Step 5 For 3 Phase models)
- Remove 2 dampers in direction shown below.
(You may have to cut a cable tie, before remove damper.)
There are 2 kinds of Models as 1 phase(Ø1), 3 phase(Ø3).
Assure which kinds of model it is, follow proper step 3.
This instruction is for 3 phase Models.
Damper Structure in existing
Remove
Remove
(14 of 25)
■ Guideline to use service kit
- Step 1 : Attach the Insulation provided between ‘Side (left) panel’ and ‘Front panel’ refer to below
instruction. (If necessary, Attach more insulation to other side)
- Step 2 : Attach the Damping sheet to back of ‘Front panel’ refer to below instruction.
- Step 3 : Insert the holders on top of the condenser.
- Step 4 : Attach the Felt provided between ‘Upper Discharge Grille’ and ‘Front panel’ refer to below
instruction. (If necessary, Attach more felt to discharge grille.)
- Step 5 : Remove and Add Damper provided. (Location is directed by Detailed
Instruction)
- Step 6 : Attach the Damper(Rubber) provided to Back of Accumulator Bracket.
- Step 7 : Finish Service work adjusting properly dampers, insulations according to Installation status.
