■ Detailed Instruction (Step 5 For 3 Phase models)

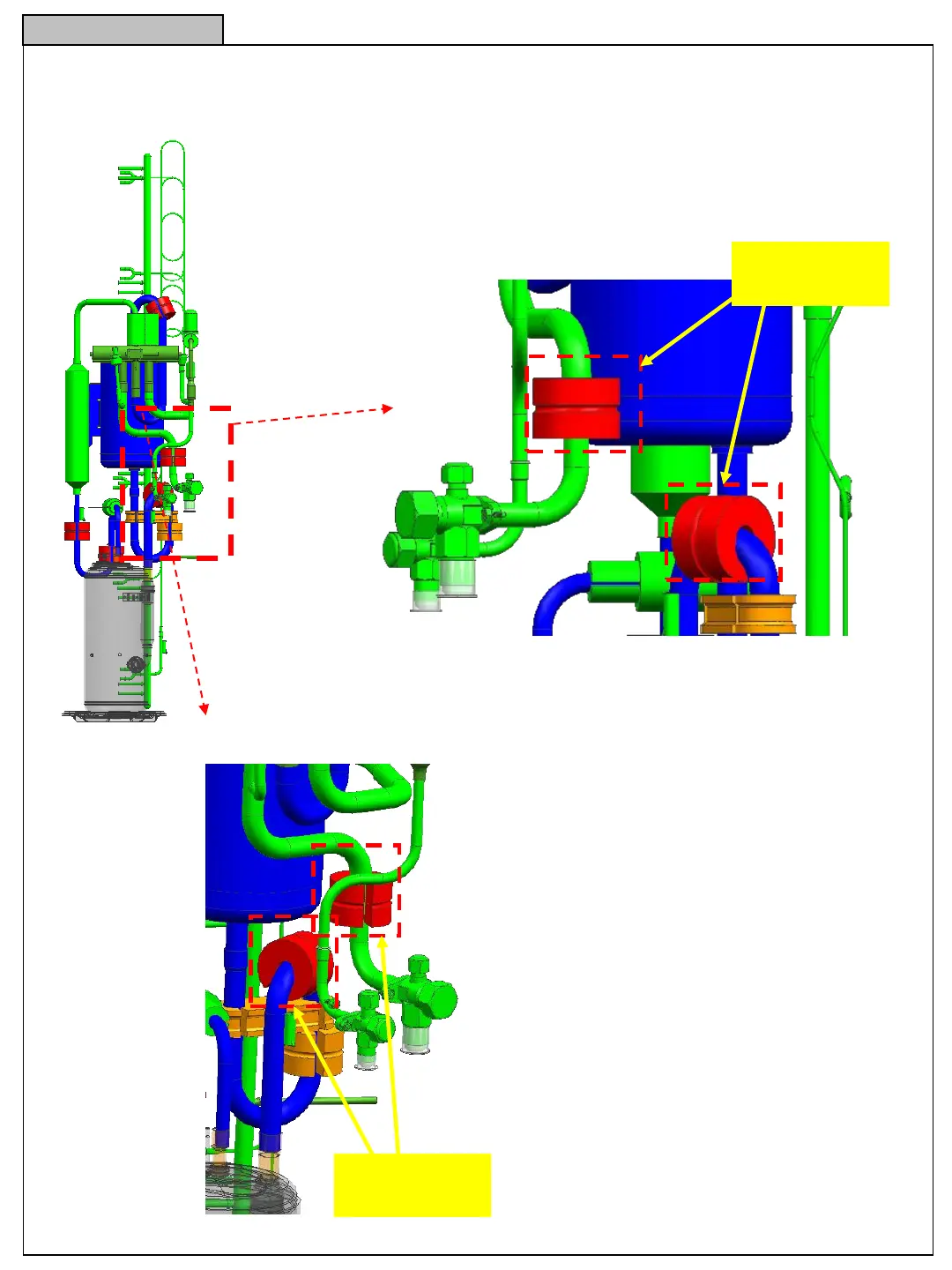

- Add 2 dampers (Ø19.05) provided in direction shown below. (Comp_Suction part)
Add
Damper (Ø 19.05)
Damper Structure for Service
Comp_Suction Part
Add
Damper (Ø 19.05)
Comp_Suction Part
(View from the right side)
Pipe Schematic
