6.1.2 Replacing the brewing unit
6.1.2.1 Inserting the brewing unit
The brewing unit can only be inserted in the basic position.
► The brewing chamber is located completely underneath the
filling funnel.

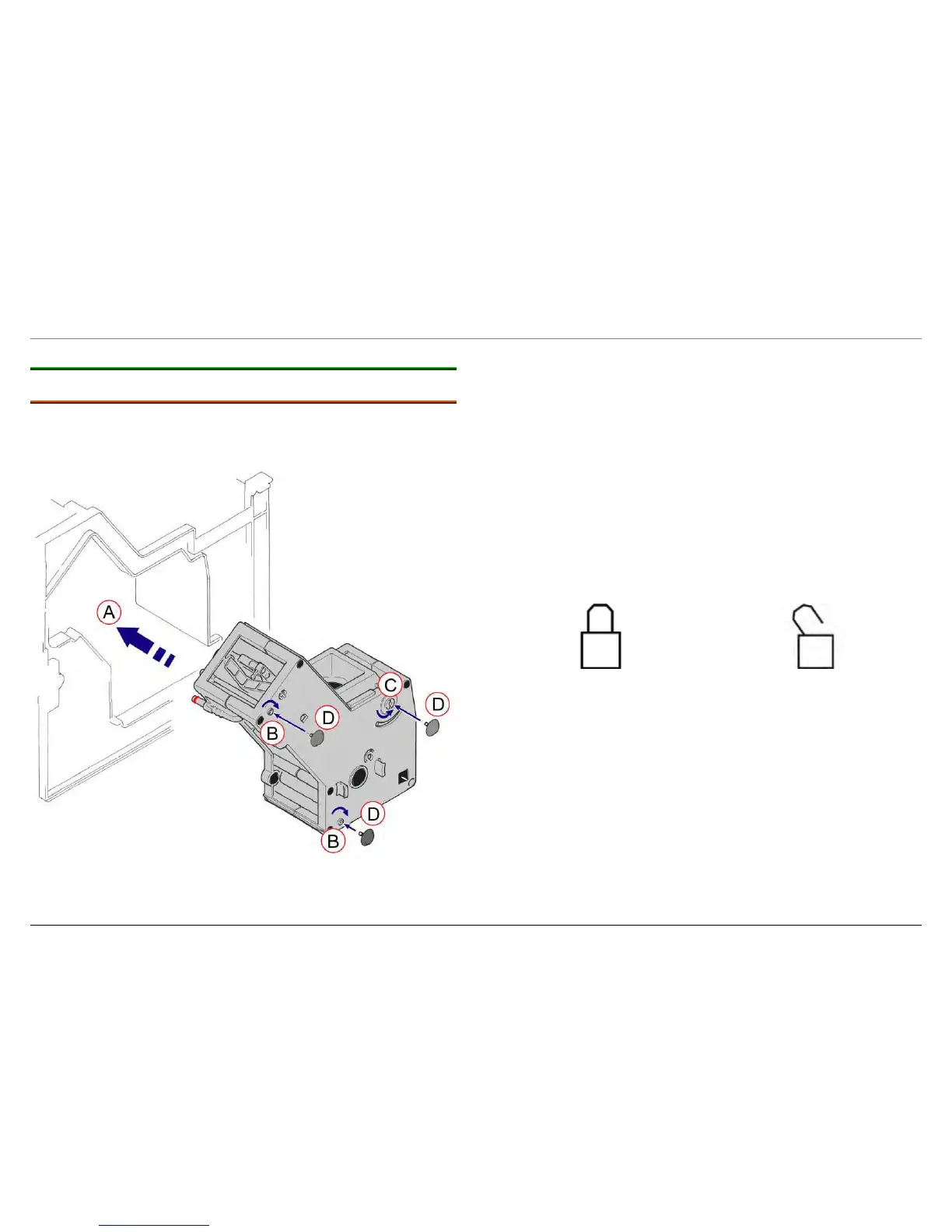

Inserting the brewing unit
(A)
Insert brewing unit into the appliance
(B)
Fix two locks by rotating them clockwise with a flat screwdriver
(C)
Fix lock by rotating it counter clockwise with a flat screwdriver
(D)
Insert three rubber caps into the notches
Symbols on the brewing unit indicate whether the lock is open or
closed.
Lock closed Lock open
