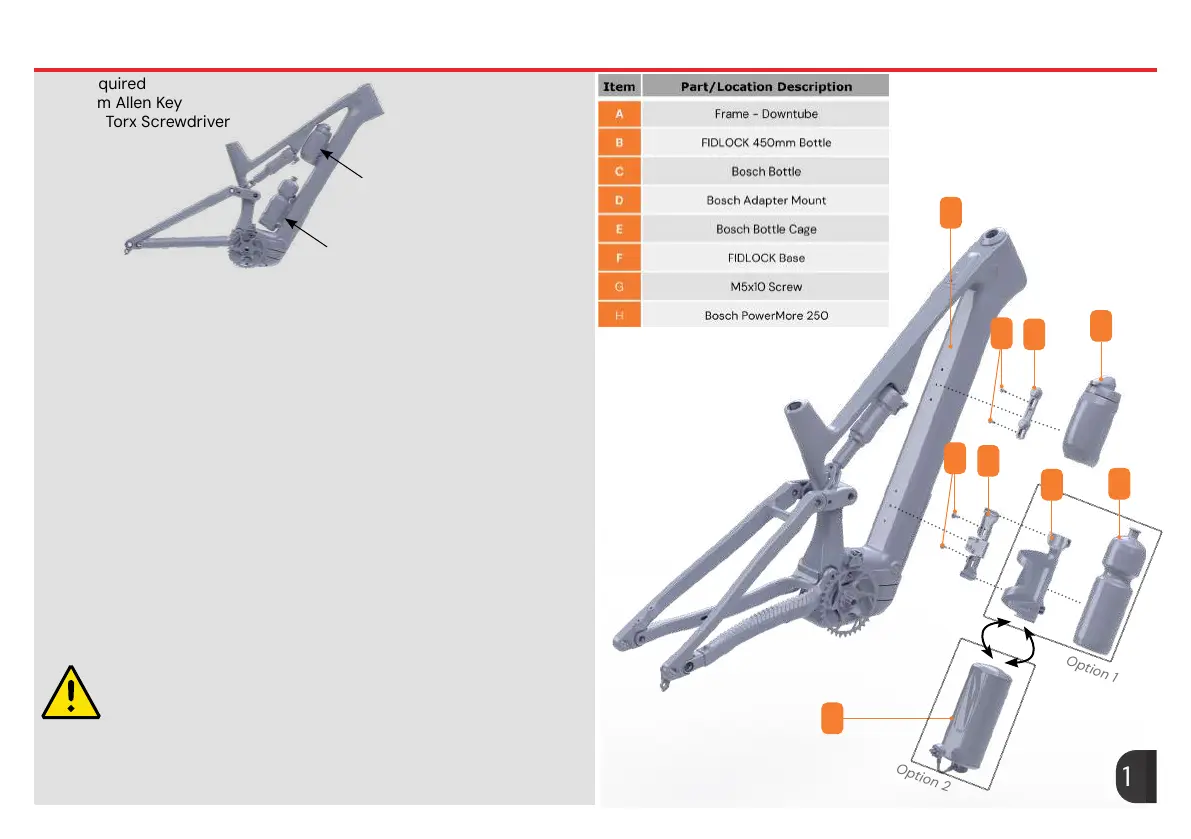

02 - RIDE INFO 2.2 Frame Mounts
Your E-Lyte has been designed with 2x frame mount locations. With an
‘Upper’ and ‘Lower’ mount the rider has the freedom to mix and match
numerous congurations of bottles, tools, and even an additional battery.
All E-Lyte models are supplied with a ‘Bosch Adapter Mount’ ‘D’ and
‘Bosch Bottle Cage’ (E). The Bosch PowerMore 250 ‘I’ is only specied with
certain Models. For further details regarding the PowerMore 250 ‘I’ please
refer to the relevant section of this manual
LOWER MOUNT: When using the Bosch Adapter Mount ‘D’ in the lower
position, there are 2x available options to the rider. OPTION 1 - Clipping
in the Bosch Bottle Cage ‘E’ allowing a water bottle to be tted. OPTION 2
- Clipping in the Bosch PowerMore 250 ‘I’ range extender battery (Please
see instructions and product details for the Bosch PowerMore 250 ‘I’ in
this manual).
UPPER MOUNT: No accessories are supplied for the upper mount. This
mount can accommodate a FIDLOCK 450mm Bottle (B) or mounts for
tools and spares. Please note the small size frame can not accommodate
the FIDLOCK 450mm Bottle (B). Pay attention to the warning below
regarding xing lengths.
10
Tools Required
• 3mm Allen Key
• T25 Torx Screwdriver
A
Option 1
Option 2
B
F
H
C
E
D
G
Upper mounted bottle
and adapter not
supplied with bike
Lower mounted bottle
and adapter supplied
with all bike models
WARNING: Take great care when installing xings to the frame
mounts. Always use original xings where possible. Never
use a xing longer than 10mm as longer screws may come
into contact with electrical components. Any damage to the
electrical components caused by an incorrect xing length
could be fatal and void your Whyte warranty. Please consult
your Whyte Retailer for further guidance if required.
G
