2 INFORMATION ABOUT THE PRODUCT
2.1 EU DECLARATION OF CONFORMITY
The design and operation of this product conform to the
applicable European directives and supplementary national
requirements. The conformity has been confirmed.
2.2 CORRECT USE
AGS solar pump stations must only be used for the
operation of solar heating systems in conjunction with
suitable controllers from the same manufacturer.
AGS solar pump stations are solely designed for
operating solar heating systems filled with propylene
glycol/water mixtures (Tyfocor L or Tyfocor LS). Do not
use any other heat transfer medium.
2.3 INCLUDED IN DELIVERY

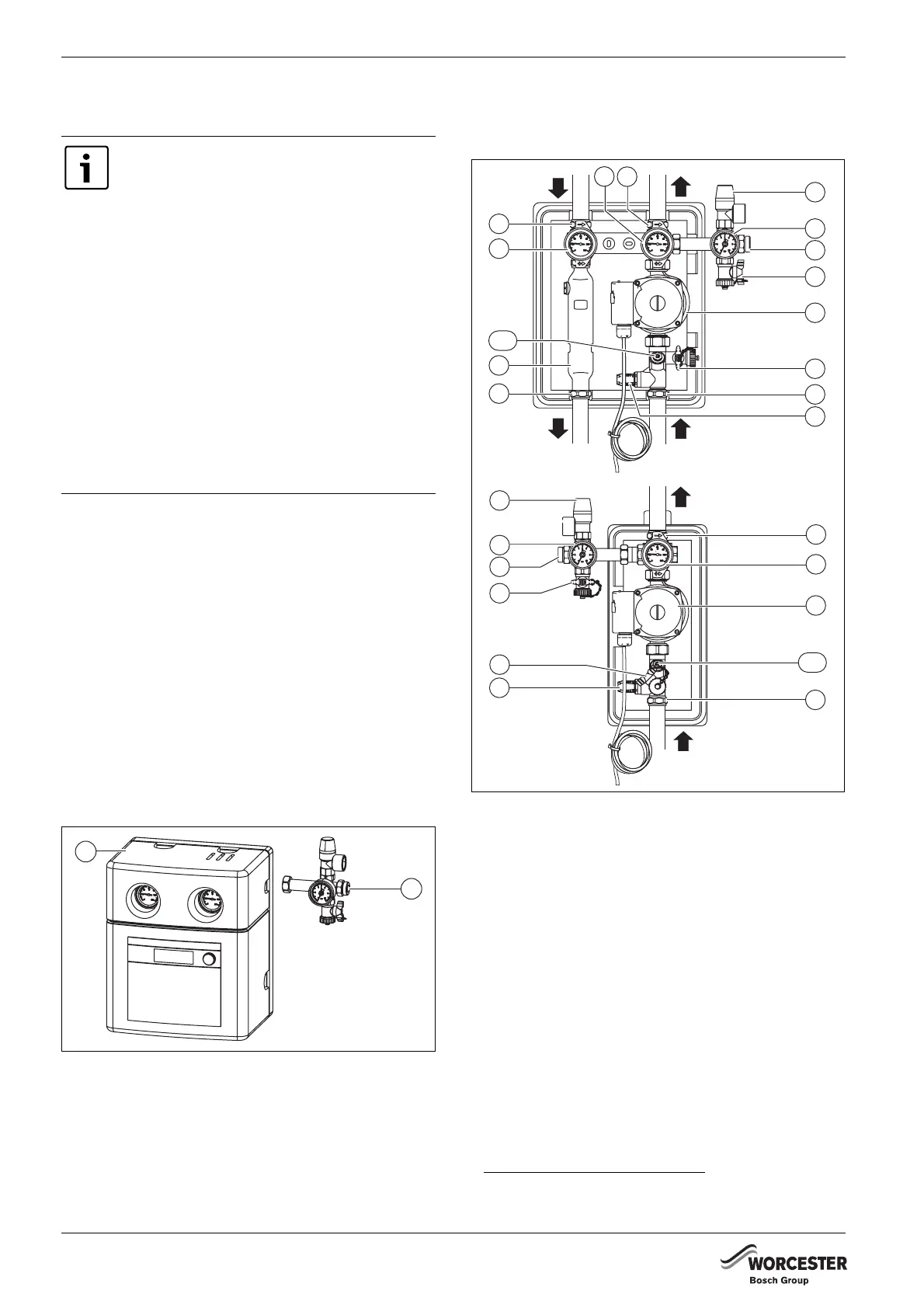

Fig. 1 Package contents - Solar pump station with
controller
1 Solar pump station (1- or 2-line solar pump station with/
without controller)
2 Safety assembly (safety valve, pressure gauge, fill & drain
valve)
And
Mounting materials (not shown)
2.4 PRODUCT DESCRIPTION
Fig. 2 Solar pump stations without front insulation
casing and without built-in controller
1 Ball valve with thermometer (red=flow
1)
, blue=return) and
integrated gravity brake:
- 0° = gravity brake ready for operation,
- 45° = gravity brake manually open
2 Compression fitting
3 Safety valve
4 Pressure gauge
5 Connection to diaphragm expansion vessel
6 Fill & drain valve
7 Solar pump
8 Flow rate indicator
9 Air eliminator
1)
10 Control/shut-off valve
Benchmark places responsibilities on both
manufacturers and installers. The purpose is to ensure
that customers are provided with the correct
equipment for their needs, that it is installed,
commissioned and serviced in accordance with the
manufacturer’s instructions by competent persons and
that it meets the requirements of the appropriate
Building Regulations. The Benchmark Checklist can be
used to demonstrate compliance with Building
Regulations and should be provided to the customer for
future reference.
Installers are required to carry out installation,
commissioning and servicing work in accordance with
the Benchmark Code of Practice which is available from
the Heating and Hotwater Industry Council who manage
and promote the scheme. Visit
www.centralheating.co.uk for more information
7747006489.04-1.SD
1
2
1) Not for 1-line solar pump station
