2.6 EXAMPLE APPLICATIONS

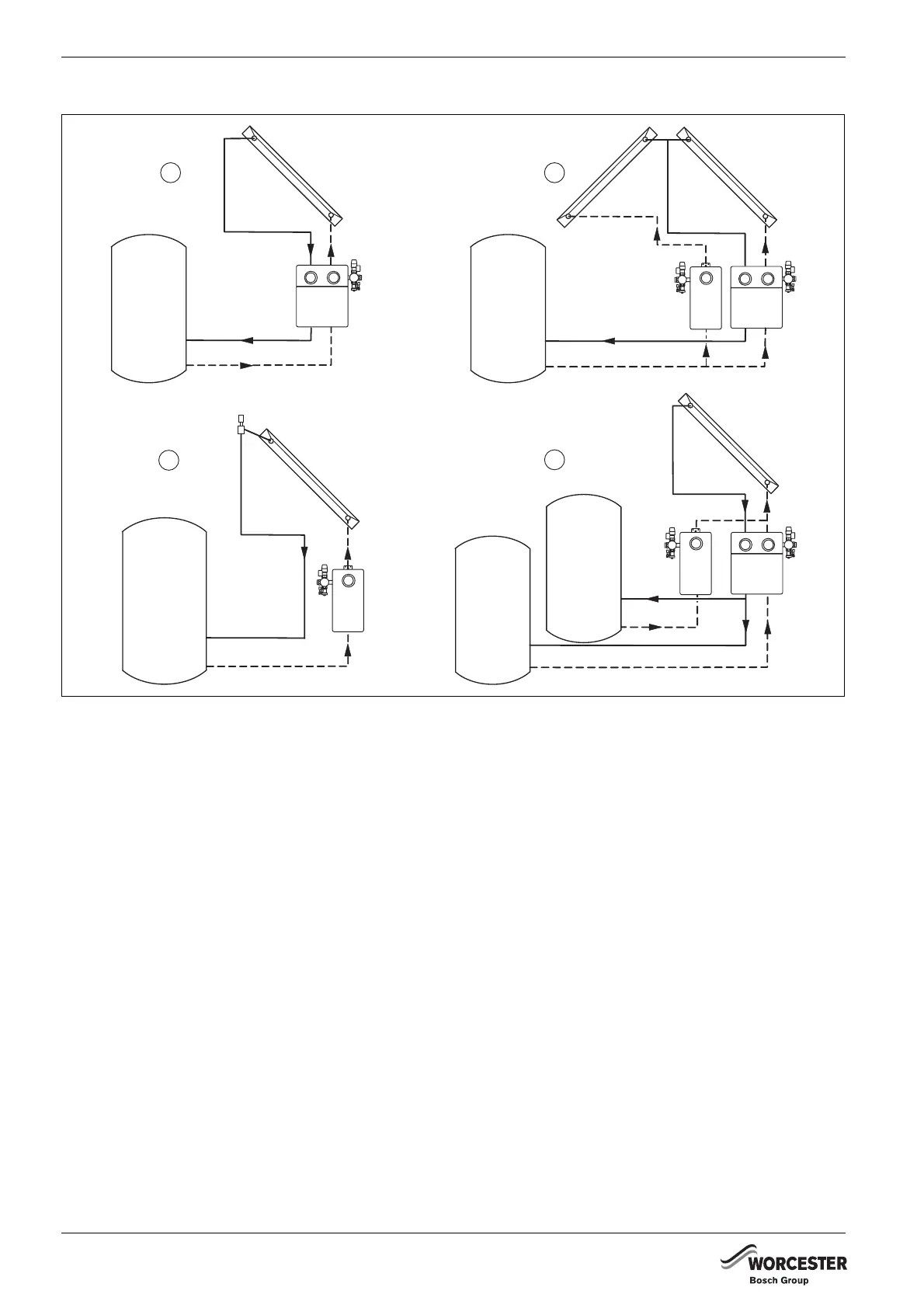

Fig. 3 Different hydraulic applications
1 Standard system with 2-line solar pump station
2 Two collector arrays (east/west) with 1-line and 2-line solar
pump stations
3 Dual-tank system with 1-line and 2-line solar pump stations
4 Standard system with 1-line solar pump station and air vent
on roof
1 2
4
7747006489.03-2.SD
3
