Electrical connection – Step 7
▶ Secure cable connected in Step 6 with the strain relief supplied.

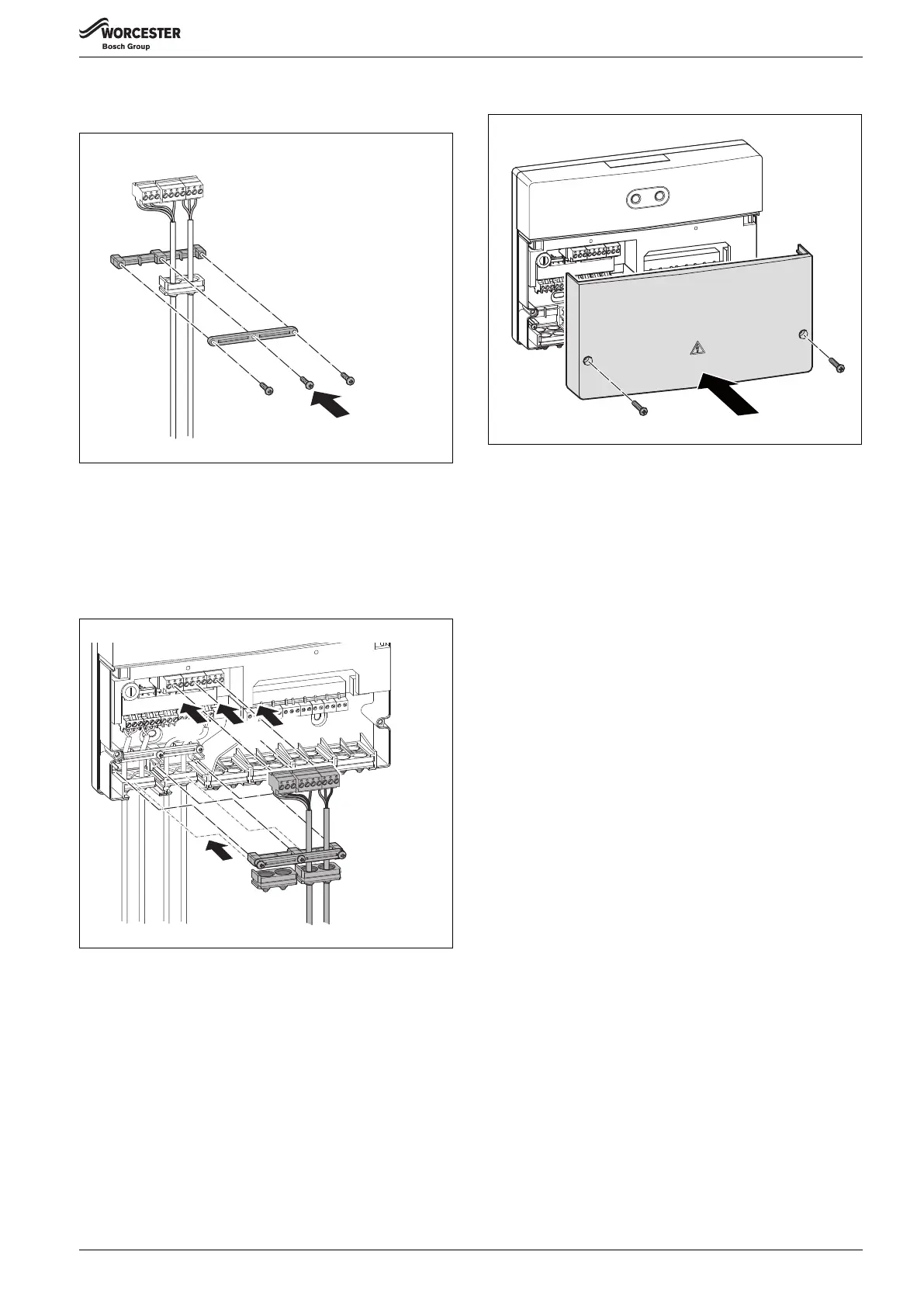

Fig. 17 Electrical connection – Step 7
Electrical connection – Step 8
1. Put the grommets back into place.
2. Plug in first connected plug from where it was removed.
3. Plug in second connected plug from where it was removed.
4. Plug in third connected plug from where it was removed.
Fig. 18 Electrical connection – Step 8
Fitting the cover – Step 9
Fig. 19 Fitting the cover – Step 9
