11

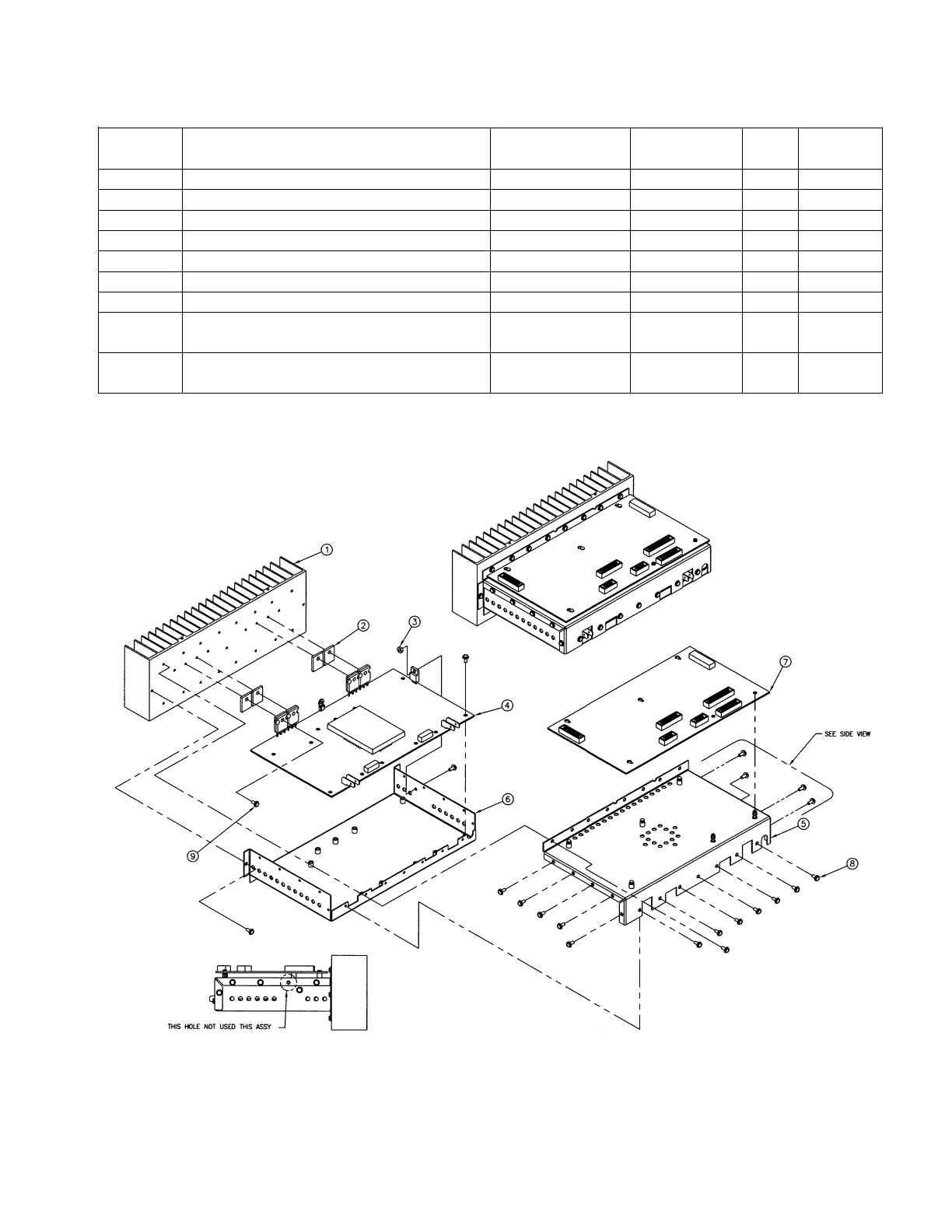

Figure 3. Model 2150 Amplifier Module Exploded View
MAIN PART LIST (CONTINUED)
Model 2150 Amplifier (see Figure 3)
Item
Number
Description Vendor Part
Number
Bose
®
®®
®
Part
Number
Qty. Note
1 Heatsink, 2U, CV 720069.31 262092 1
2 Insulator, Aluminum Oxide, TO-220 3299.0005 262100 4
3 Nut, 4-40, Hex, Kep, STZ 5222.0001 262116 1 4
4 Amplifier PCB Assembly 9000.0435.03 262081 1 2
5 Cover, Shield, Amp, CV (top) 700507 262090 1
6 Chassis, Shield, Amp, CV (bottom) 700508 262091 1
7 Signal Processor PCB Assembly 9000.0447.03 262087 1 2
8 Screw, TF, SEMS, 4-40x3/8, HWH,
ST, BZ
5112.0034 262111 48 4
9 Screw, TF, SEMS, 4-40x1/2, HWH,
ST, BZ
5112.0031 262110 4 4
