Model 2150 Amplifier (see Figure 1)

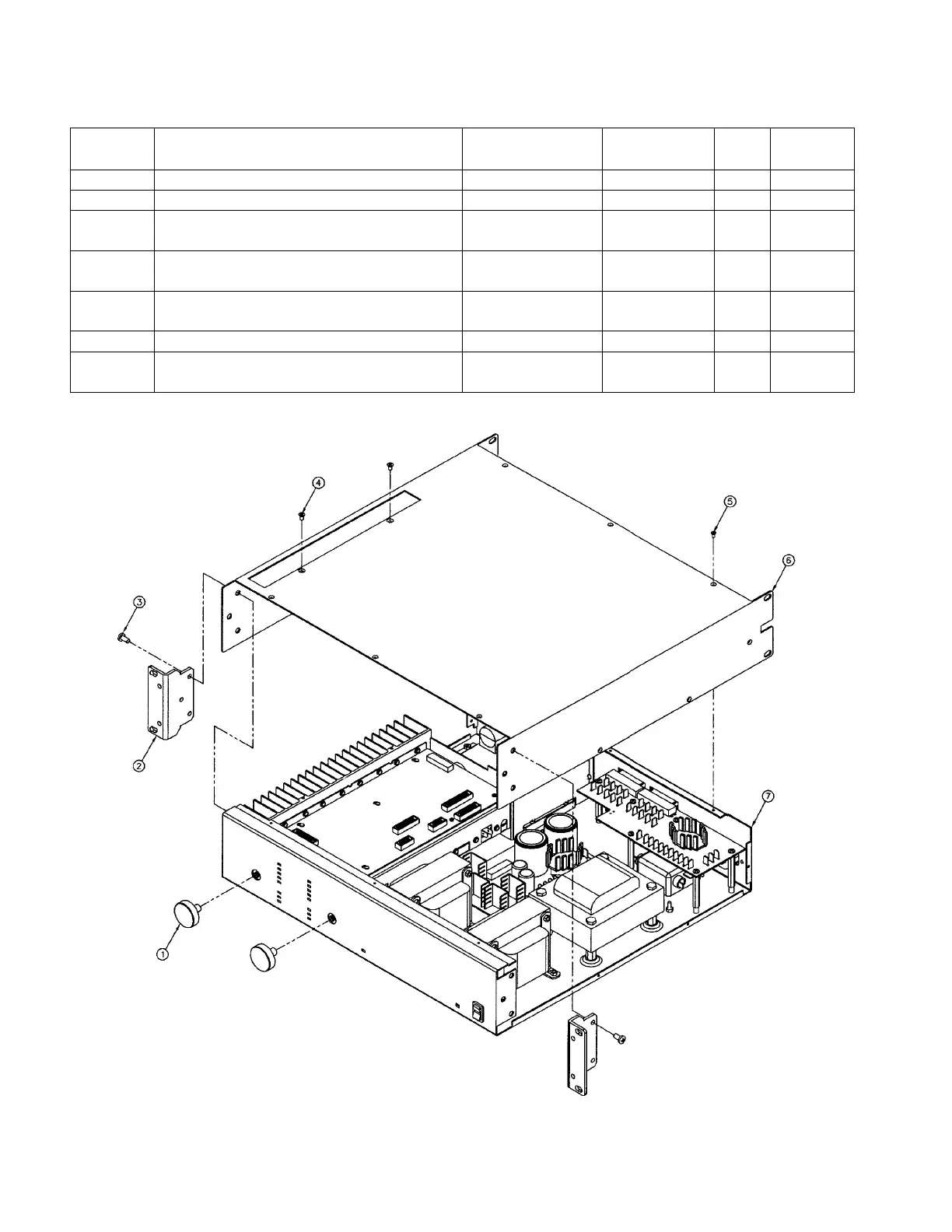

Figure 1. Model 2150 Amplifier Top Cover Removal Exploded View
MAIN PART LIST (CONTINUED)
Item
Number
Description Vendor Part
Number
Bose
®
®®
®
Part
Number
Qty. Note
1 Knob, Control, 1.18 OD x .5 DP Stem 5710.0001 262101 2
2 Rack Ear, 2U, Carver, Gray 700362.30 262120 2
3 Screw, SEMS, BLK OX, PHP, 10-
32x3/8
151-30170-01 262109 6 4
4 Screw, TF, 6-32x1/4, FHP, UC, ST,
BZ
5113.0037 262113 2 4
5 Screw, TF, 4-40x1/4, FHP, UC, ST,
BZ
5112.0026 199771 12 4
6 Cover, 2U, Bose 2060/2150 700487.30 262102 1
7 Amplifier Chassis Assembly
(refer to Figure 2)
1
