Bose 802-II User Manual

11

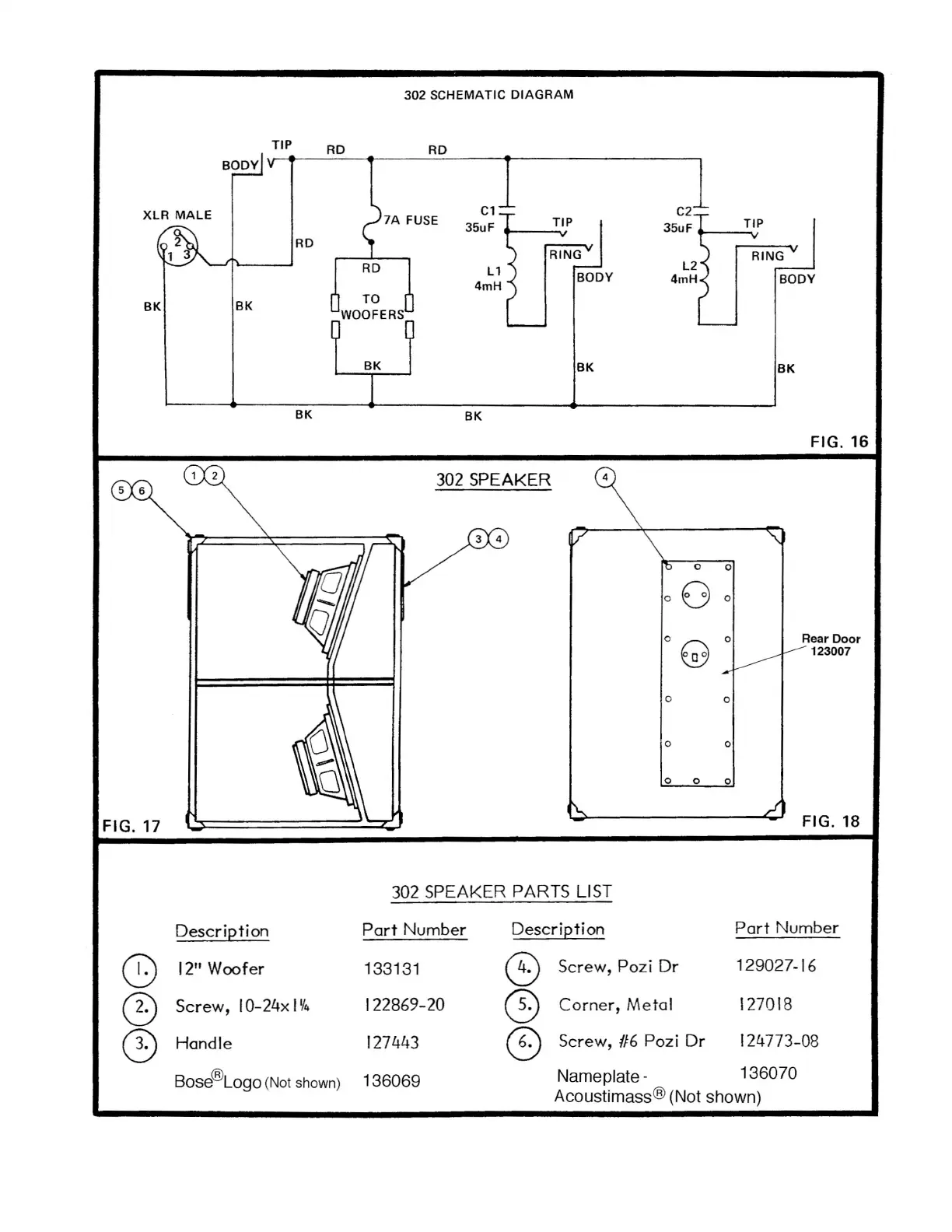

302 SCHEMATIC DIAGRAM
TIP
RD RD
BODY v--.----.---.:..:.::.---1~----------.
7A FUSE
Cl
C2
35uF
TIP
35uF
TIP
RD
RING
RD
BODY
BODY
BK
TO
WOOFERS
BK
BK
BK
BK
BK
FIG. 16
302 SPEAKER
4
BK
XLR MALE
0
0
00
0
0EE)
0
Rear Door
123007
0
0
0
0
0
0 0
FIG. 17
FIG. 18
302 SPEAKER PARTS LIST
Description
Part Number
Description
Part Number
CD
12" Woofer 133131
0
Screw, Pozi Dr
129027-16
0
Screw, I0-24x I V4
122869-20
CD
Corner, Metal 127018
0)
Handle
127443
@
Screw, 116 Pozi Dr 124773-08
Bose®Logo (Not shown)
136069
Nameplate-
136070
Acoustimass® (Not shown)

Bose 802-II Specifications

General

Frequency Response	55 Hz - 16 kHz
Impedance	8 ohms
Type	Full-Range Loudspeaker
Grille	Powder-coated steel
Power Handling	240W continuous
Sensitivity	91 dB SPL, 1 W, 1 m
Drivers	8 x 4.5" (114mm) full-range drivers
Coverage Angle	120° H x 60° V
