Crossover Assy.
136244

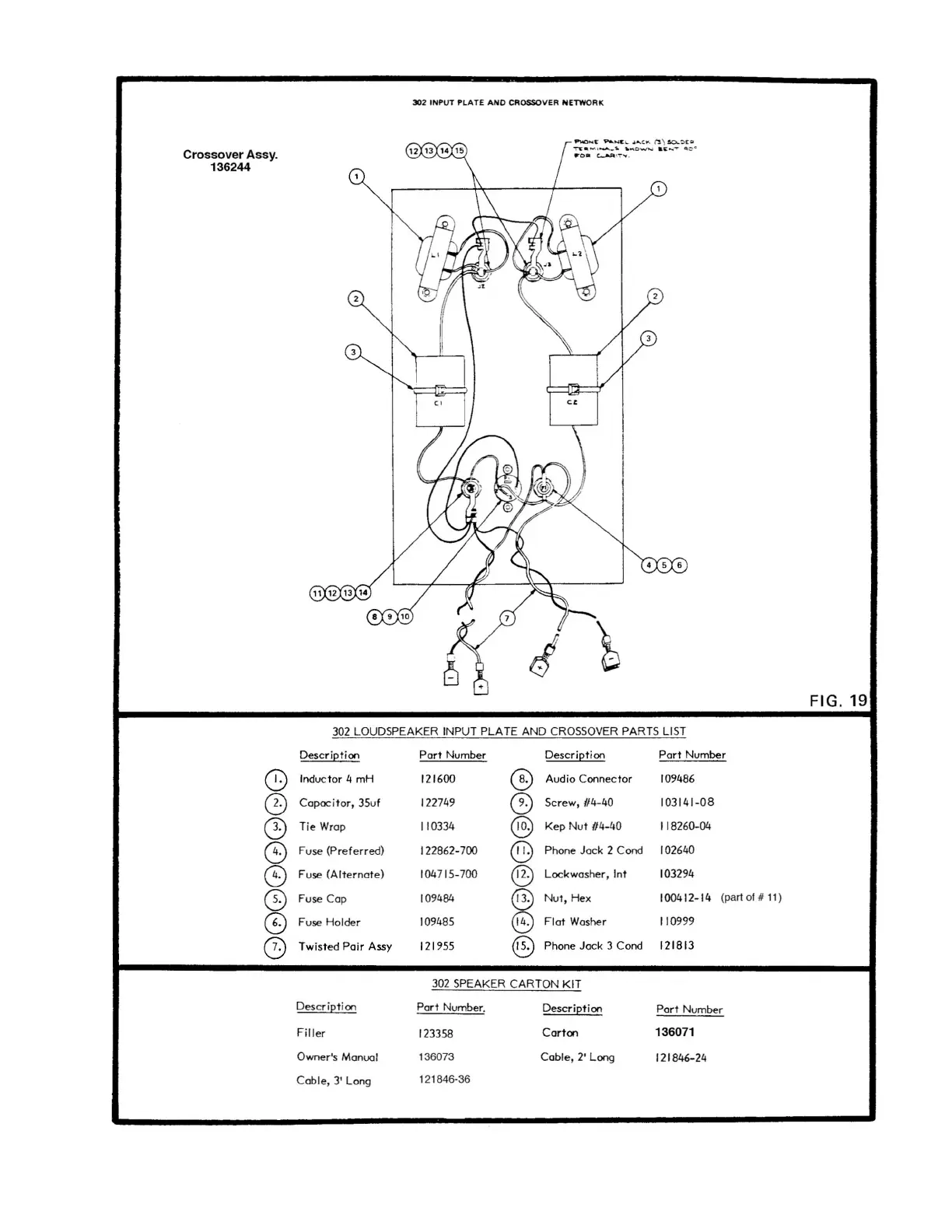

302 INPUT PLATE AND CROSSOVER NETWORK
co
co
4 5 6
~
FIG. 19
302 LOUDSPEAKER INPUT PLATE AND CROSSOVER PARTS LIST
Description Port Number Description
Port Number
C)
Inductor 4 mH 121600
@
Audio Connector 109486
0
Capoci tor, 35uf 122749
0
Screw, 114-40 103141-08
G
Tie Wrap 110334
®
Kep Nut 114-40 118260-04
~
Fuse (Preferred) 122862-700
@
Phone Jock 2 Cond 102640
G
Fuse (Alternate) 104715-700
®
Lockwasher, Int
103294
CD
Fuse Cop
109484
@
Nut, Hex
100412-14
(part
01# 11)
CD
Fuse Holder
109485
®
Flat Washer
110999
CD
Twisted Pair Assy 121955
@
Phone Jack 3 Cond
121813
302 SPEAKER CARTON
KIT
Description
Port Number.
Description
Port Number
Filler
123358
Carton
136071
Owner's Manual
136073
Coble, 2' Long
121846-24
Cable, 3' Long
121846-36

Bose 802-II Specifications

General

Frequency Response	55 Hz - 16 kHz
Impedance	8 ohms
Type	Full-Range Loudspeaker
Grille	Powder-coated steel
Power Handling	240W continuous
Sensitivity	91 dB SPL, 1 W, 1 m
Drivers	8 x 4.5" (114mm) full-range drivers
Coverage Angle	120° H x 60° V
