Setting Up Your Lifestyle
®
Stereo Amplifier
Connecting the Lifestyle
®
stereo amplifier to a Model 20 music center
CAUTION: Before making connections, turn the Lifestyle
®
system off and disconnect the music center from
the AC (mains) power outlet. DO NOT plug the amplifier into an outlet until you have completed all other con-
nections.
1. Insert the single multi-pin connector at one end of the audio input cable into the SPEAKER ZONES 2
output jack on the rear panel of the music center (Figure 10).
2. At the other end of the audio input cable, insert the 3.5 mm mini-plug into the SYSTEM CONTROL jack
on the rear panel of the amplifier.
3. Insert the white RCA piggyback connector of the supplied cable into the L (left) INPUT jack. Insert the
red RCA piggyback connector into the R (right) INPUT jack of the amplifier.

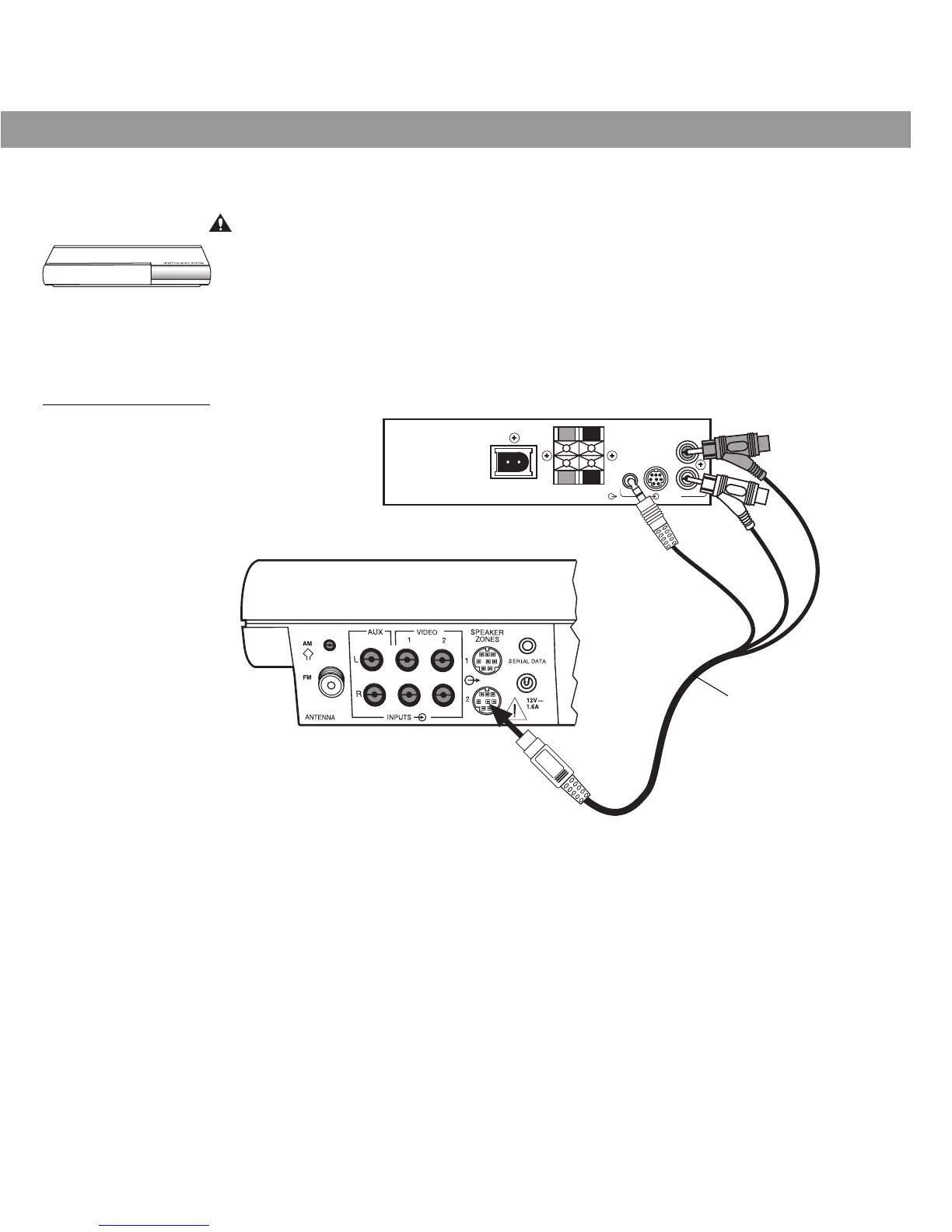

Figure 10
Cable connections between
the Model 20 music center
and the Lifestyle
®
stereo
amplifier
4 Ω MINIMUM
SYSTEM
CONTROL
L
R
INPUT
L
R
SPEAKER OUTPUTS
L
R
L
R
+
–
Lifestyle
®
stereo amplifier rear panel
Model 20 music center rear panel
30-ft audio input
cable (supplied)
®
