FreeSpace® ZA 2120-LZA/HZA
ZA 2120-LZA/HZA Front Panel

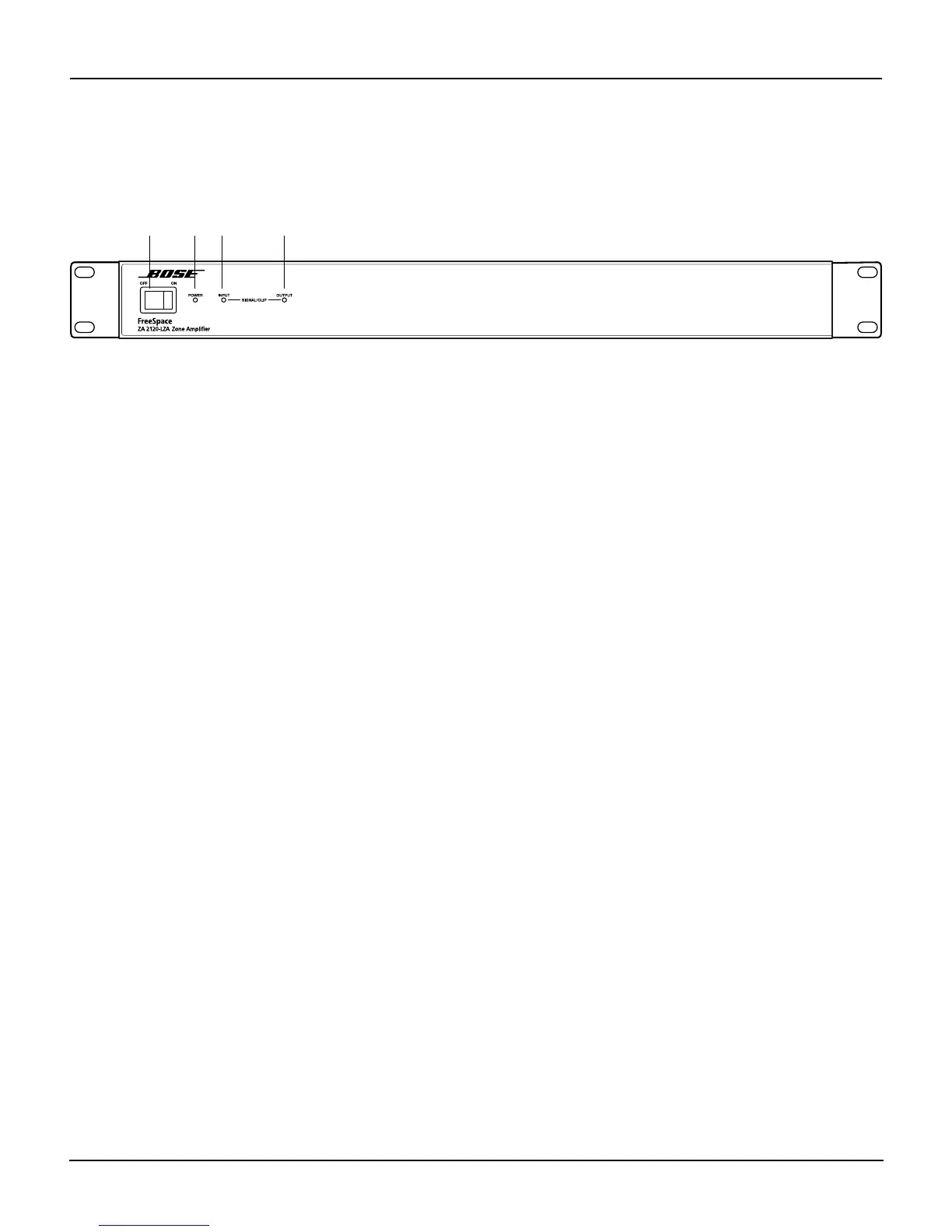

Figure 6. FreeSpace ZA 2120-LZA/HZA amplifier front panel
q POWER Switch - ON/OFF AC power.
w POWER LED - Solid blue LED indicates the unit is ON. Blinking blue LED indicates the unit is in standby
mode.
e INPUT SIGNAL LED - LED is green from –37 dBu to 11 dBu, LED goes red over 11 dBu.
r OUTPUT LIMIT LED - LED is green from –46 dBFS to –2 dBFS, approximately 80 W per channel. For
each output, 120 watts is 0 dBFS.
q w e r
