Installation Guide - 31

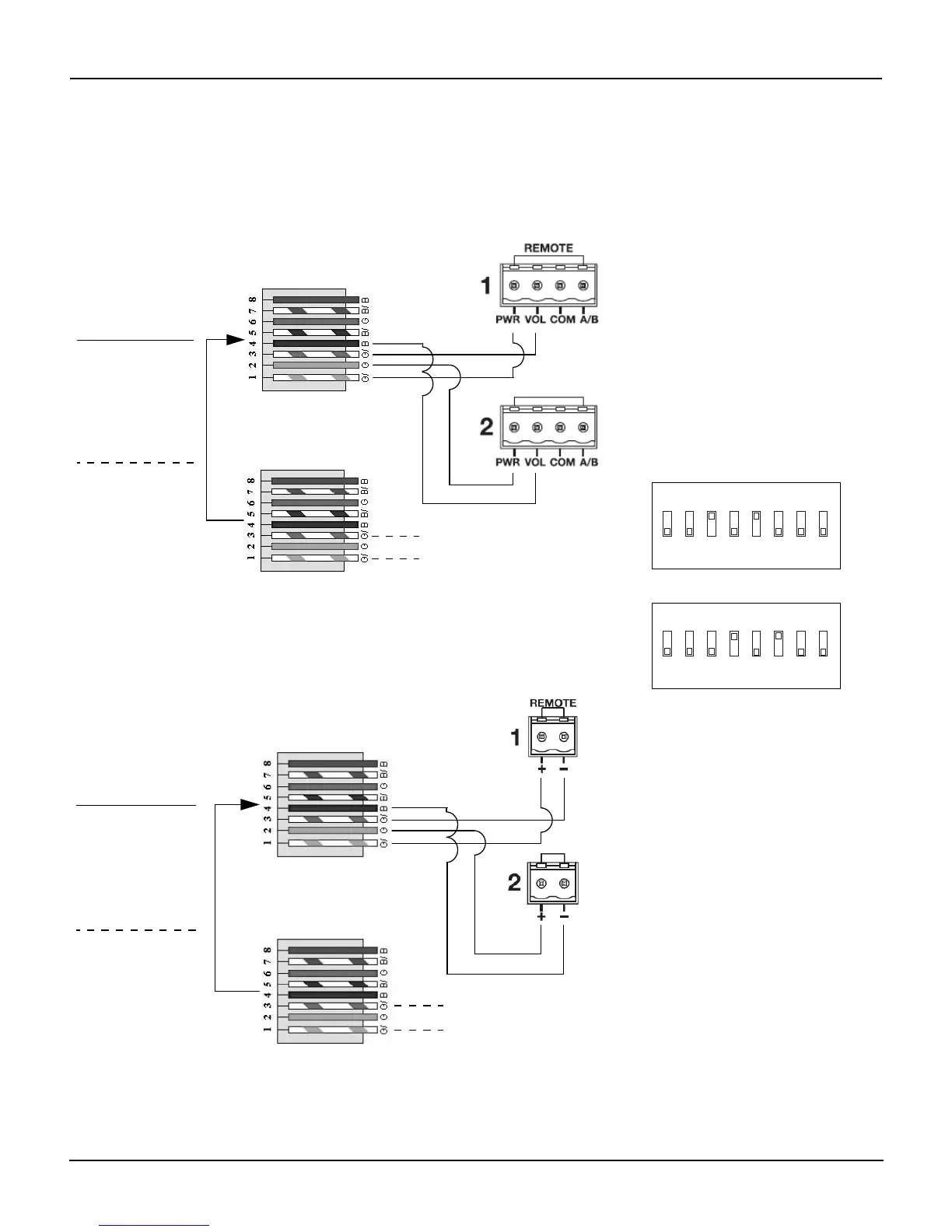

Two CC-1s
Connect two ganged CC-1 zone controllers to FreeSpace® amplifier models IZA 2120-HZ or ZA 2120-HZ.
DIP switch settings are the same when connecting to the ZA 2120-HZA.
RJ-45 (Main)
on CC-1 #1
Wiring with
Optional CAT 5
Daisy-Chain
Wiring if Using
Two Home Runs
to IZA 2120-HZ
RJ-45 (Chain)
on CC-1 #2
VOL #2
RJ
FreeSpace
IZA 2120-HZ
VOL #2
PWR #2
RJ-45 (Main)
on CC-1 #1
RJ-45 (Chain)
on CC-1 #2
FreeSpace
ZA 2120-HZ
Wiring with
Optional CAT 5
Daisy-Chain
Wiring if Using
Two Home Runs
to ZA 2120-HZ
VOL #2
PWR #2
DIPON
1 2 3 4 5 6 7 8
CC-1 Zone Controller #1
DIPON
1 2 3 4 5 6 7 8
CC-1 Zone Controller #2

Bose FreeSpace IZA 2120-HZ Specifications

General

Maximum current	5 A
AC input voltage	230 V
AC input frequency	50 Hz
Amplifier class	D
Frequency range	55 - 20000 Hz
Audio output channels	2.0 channels
Peak power per channel	- W
Total Harmonic Distortion (THD)	0.3 %
Purpose	Performance/stage
Equalizer	Yes
Product color	Silver
Volume control	Rotary
Connectivity technology	Wired
Line inputs (RCA)	2
Speakers connectivity type	RCA
Package weight	5400 g

Weight and Dimensions

Depth	324 mm
Width	483 mm
Height	44 mm
Weight	4100 g
