PACKAGING PART LIST
IZA 2120-HZ and IZA 2120-LZ Amplifiers (refer to Figure 1)

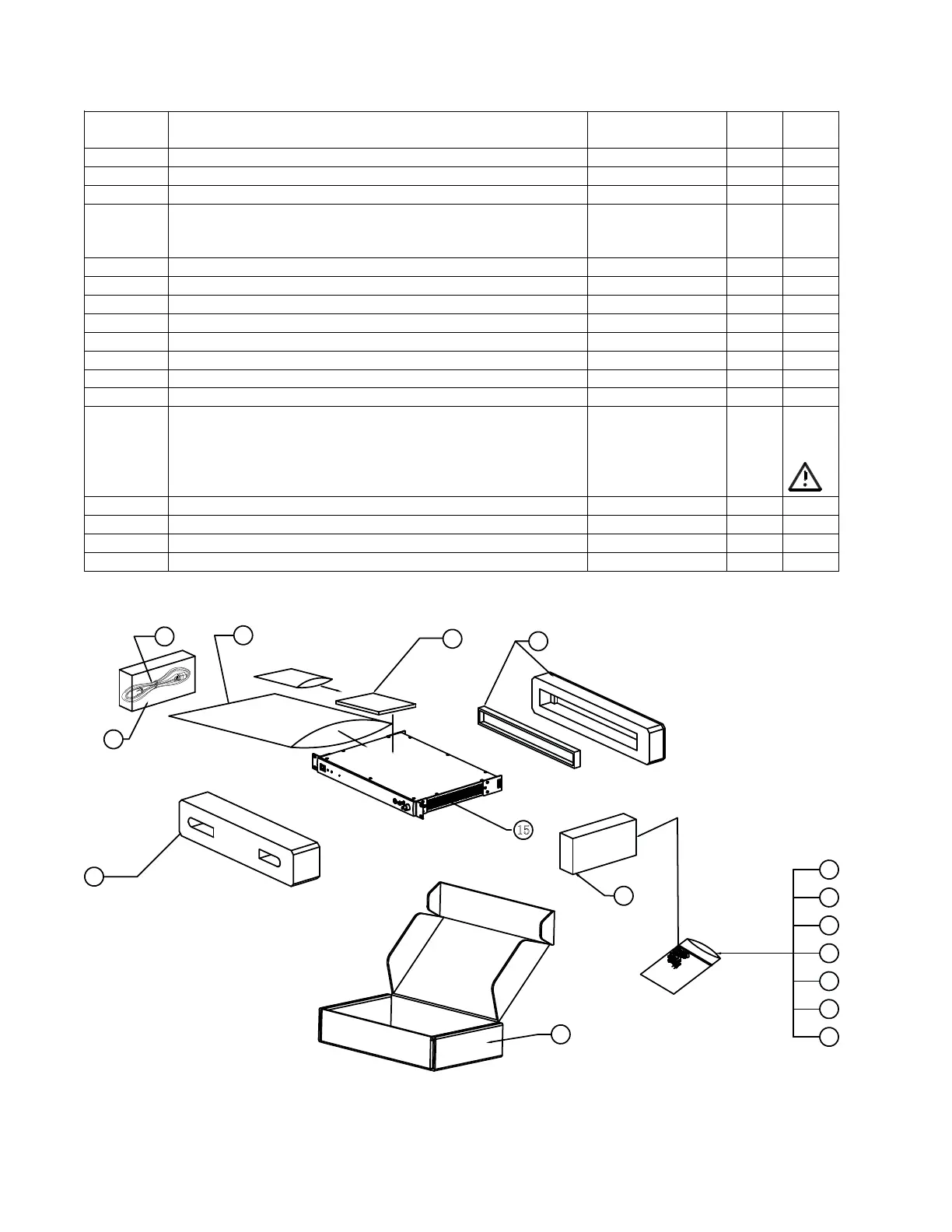

Figure 1. IZA 2120-HZ and IZA 2120-LZ Packing View
1
2
3
4
5
6
7
8
9
10
11
2
12
13
14
Item
Number
Description Part Numbe
r
Qty. Note
1 PE FOAM, REAR, 508X107X56 740151-001S 1
2 CARTON, LINE CORD/ACCESSORIES 753016-001S 1
3 PLUG, 4P, GREEN (PAGE INPUT) - 1
4 PLUG, 4P, BLACK (REMOTES)
IZA 2120-HZ
IZA 2120-LZ
-
-
2
1
5 PLUG, 2P, BLACK (MUTE) - 1
6 PLUG, 2P, GREEN (OUTPUTS) - 2
7 PLUG, 5P, GREEN (INPUTS) - 2
8 RUBBER FOOT 348623-0010 4
9 ZIPLOC BAG, CONNECTORS - 1
10 CARTON, AMP ASSY, FS IZA 2120-HZ 750854-001S 1
10 CARTON, AMP ASSY, FS IZA 2120-LZ 750857-001S 1
11 PE FOAM, FRONT, 508X107X93 740150-001S 1
12 CABLE, LINE CORD, IEC C13, NA
CABLE, LINE CORD, IEC C13, EU
CABLE, LINE CORD, IEC C13, JP
CABLE, LINE CORD, IEC C13, UK
CABLE, LINE CORD, IEC C13, AU
350745-0010
350747-0010
350749-0010
350748-0010
350746-0010
1 3
13 POLYBAG, OWNER’S MANUAL - 1
14 GUIDE, INSTALL & OPERATION,IZA/ZA,2120-HZ/LZ 747973-0010 1
- KIT, CONNECTOR, IZA 2120-HZ, SVCE 769408-001S 1
- KIT, CONNECTOR, IZA 2120-LZ, SVCE 769409-001S 1
