Bose FreeSpace IZA 2120-LZ Service Manual

25

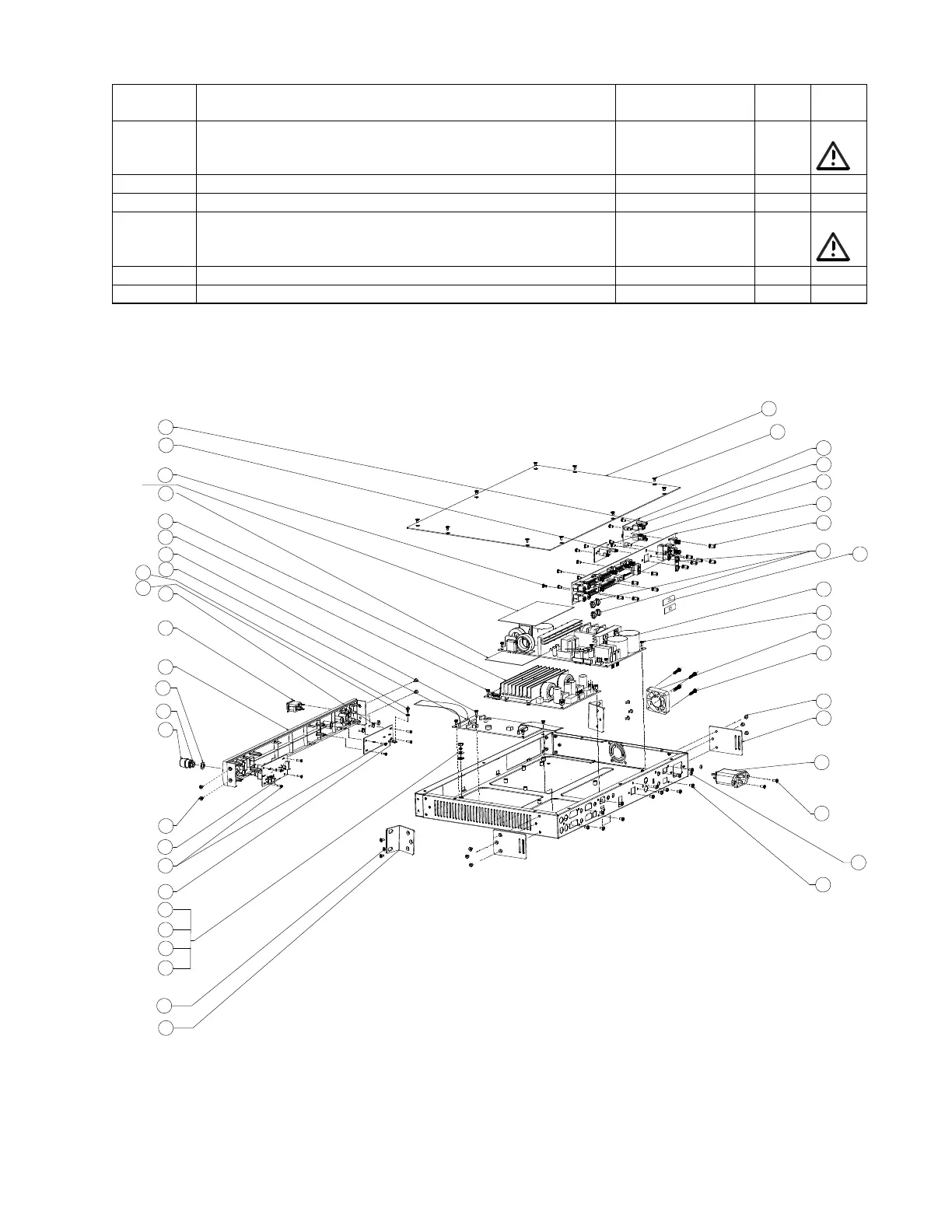

Figure 3. IZA 2120-HZ and IZA 2120-LZ Amplifiers Exploded View
1
2
3
4
5
6
7
19
8
9
10
11
12
2
13
14
15
16
17
18
19
20
21
22
23
24
25
26
2
27
28
29
30
31
32
33
34
35
10
10
36
37
17
COMES
WITH
ITEM 1
38
39
MAIN PART LIST
IZA 2120-HZ and IZA 2120-LZ Amplifiers (refer to Figure x)
Item
Number
Description Part Numbe
r
Qty. Note
- ASSY, CABLE, GROUND INLET 753371-001S 1 3
- ASSY, HARNESS, DSP TO AMP 753370-001S 1
- ASSY, HARNESS, DSP TO PS 753369-001S 1
- ASSY, HARNESS, IEC TO SWITCH 753367-001S 1 3
- ASSY, HARNESS, PS TO AMP 753368-001S 1
- CLAMP IC 65MN 740002-001S 9
