English Installation and Operation Page 33
pro.Bose.com Installation

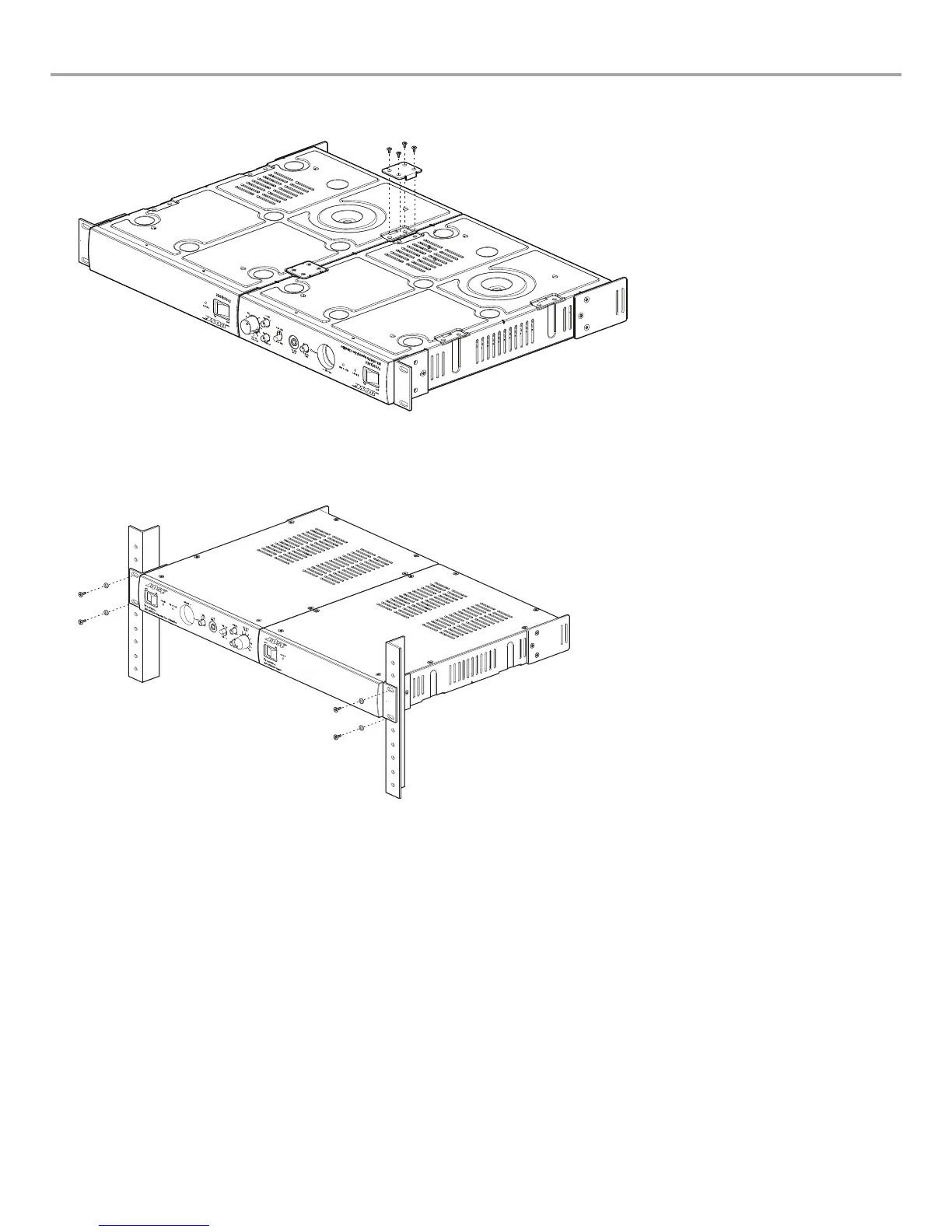

3. Place the amplifiers side by side and attach the two (2) link brackets to the amplifier chassis with four (4) included
screws each.
CAUTION: Only use the mounting hardware recommended by the rack manufacturer.
4. Mount amplifier in rack with four (4) rack screws and washers (not included).
Using the rear rack ears for strain relief
The slots on the rear rack ears can be used to provide strain relief with standard wire ties.
Spacing requirements for rack-mounted amplifiers
Allow 1RU spacing above and below rack-mounted amplifiers to ensure sufficient spacing for ventilation. Additionally, the
temperature of the rack should be controlled to ensure that amplifiers are not exposed to temperatures exceeding 40° C
(104° F).
