Application 1: Retail Store, Single Amplifier
In this example, a small retail store location uses an
IZA 190-HZ to power four FreeSpace DS 16F loudspeakers to fill
a single zone of audio.
Two sources provide background music while a paging mic is
used for in-store announcements. For special events, a cable is
ready at the front panel to accept music input from a portable
MP3 player. The amplifier receives a special MUTE signal from
the building's fire alarm panel to pause audio during emergency
situations. In this case, the IZA 190-HZ and components are
located on a shelf in the store's back room while the volume
control panel is located near the cash register for easy access.

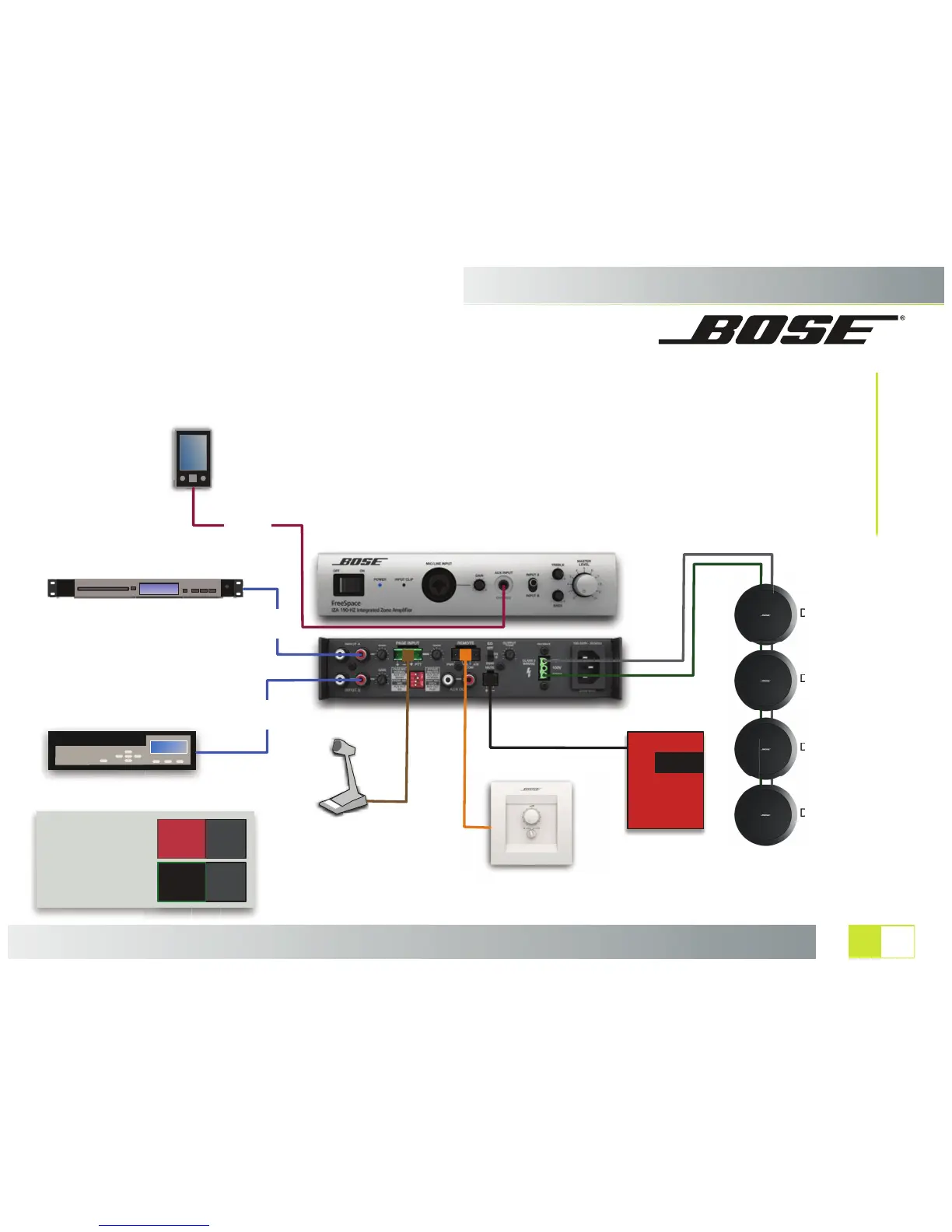

DS 16F (16 W Tap)
DS 16F (16 W Tap)
DS 16F (16 W Tap)
DS 16F (16 W Tap)
S
IZA 190-HZ (Front and Rear Panels)
Portable MP3 Player
3.5mm Patch
RCA
Stereo
Patch
RCA
Stereo
Patch
CD Player
Satellite Receiver
Paging Microphone
Volume control with A/B switch
user interface
Fire Alarm Panel
To Next Page
